Battery Test Results

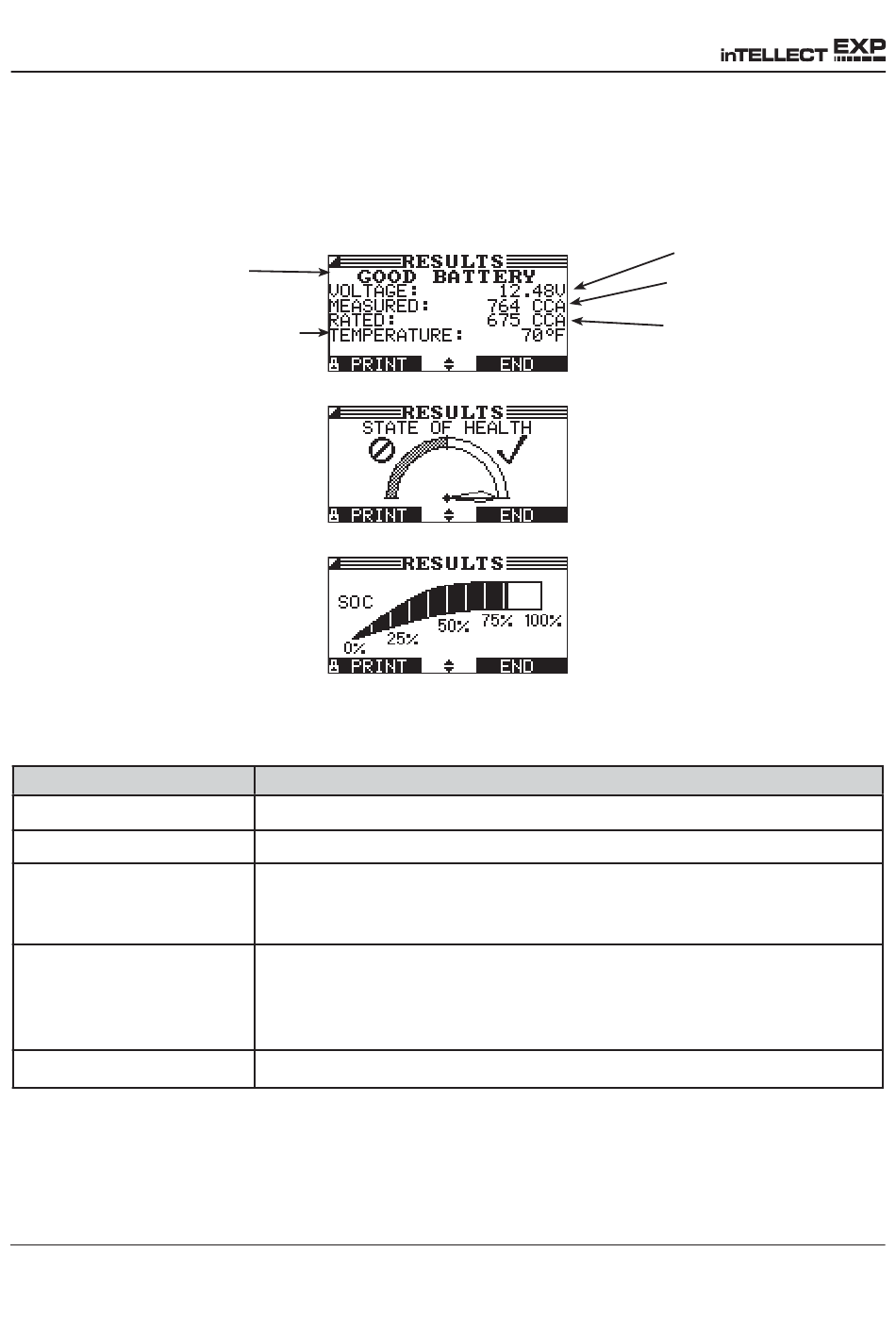

After the test the tester will display the complete results in a series of screens as shown in Figure 14.
Use the UP/DOWN ARROW keys to scroll through each result. To send the results to the IR receiver,
point the tester towards the IR Receiver, press the TRANSFER soft key and wait until the hourglass
has disappeared from the screen.
Battery decision
Temperature indication
General health of the battery
and its ability to deliver its
specified performance com-
pared with a new battery
Decision
GOOD BATTERY
CHARGE BATTERY
CHARGE & RETEST
REPLACE BATTERY
BAD CELL–REPLACE
Figure 14: Good Battery Result
Table 1: Battery Decisions and Recommendations
Recommended Action
Return the battery to service.
Fully charge the battery and return it to service.
Fully charge the battery and retest. Failure to fully charge the battery
before retesting may cause false readings. If CHARGE & RETEST
appears again after you fully charge the battery, replace the battery.
Replace the battery and retest. A REPLACE BATTERY result may also
mean a poor connection between the battery cables and the battery.
After disconnecting the battery cables, retest the battery using the out-
of-vehicle test before replacing it.
Replace the battery and retest.
Battery's state of charge
21
• •
Measured voltage
M e a s u r e d c a p a c i t y
rating units
R a t i n g u n i t s y o u
selected for the test
