DSS-5000

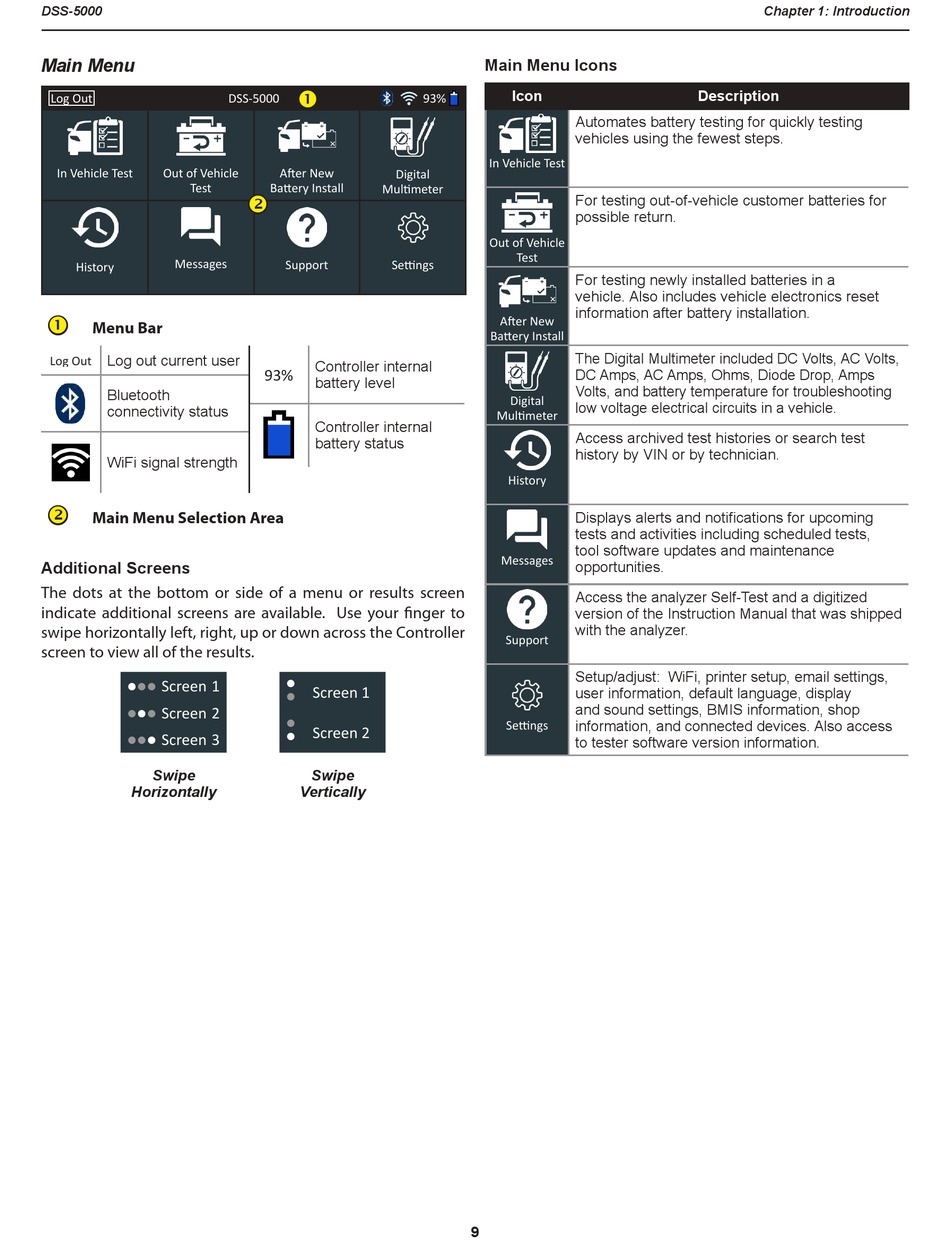

Main Menu

Log Out
In Vehicle Test Out of Vehicle
Test
Messages
History

Menu Bar
Log out current user
Log Out
Bluetooth
connectivity status
WiFi signal strength

Main Menu Selection Area

Additional Screens

The dots at the bottom or side of a menu or results screen
indicate additional screens are available. Use your finger to
swipe horizontally left, right, up or down across the Controller
screen to view all of the results.
Screen 1

Screen 2

Screen 3

Swipe
Horizontally

DSS-5000
After New
Digital
Battery Install
Multimeter

Support Settings
Controller internal
93%
battery level
Controller internal
battery status

Screen 1


Screen 2

Swipe
Vertically

Main Menu Icons

Icon
93%
Automates battery testing for quickly testing
vehicles using the fewest steps.
In Vehicle Test
For testing out-of-vehicle customer batteries for
possible return.
Out of Vehicle
Test
For testing newly installed batteries in a
vehicle. Also includes vehicle electronics reset
information after battery installation.
After New
Battery Install
The Digital Multimeter included DC Volts, AC Volts,
DC Amps, AC Amps, Ohms, Diode Drop, Amps
Volts, and battery temperature for troubleshooting
Digital
low voltage electrical circuits in a vehicle.
Multimeter
Access archived test histories or search test
history by VIN or by technician.
History
Displays alerts and notifications for upcoming
tests and activities including scheduled tests,
tool software updates and maintenance
Messages
opportunities.
Access the analyzer Self-Test and a digitized
version of the Instruction Manual that was shipped
with the analyzer.
Support
Setup/adjust: WiFi, printer setup, email settings,
user information, default language, display
and sound settings, BMIS information, shop
Settings information, and connected devices. Also access
to tester software version information.
9
Chapter 1: Introduction
