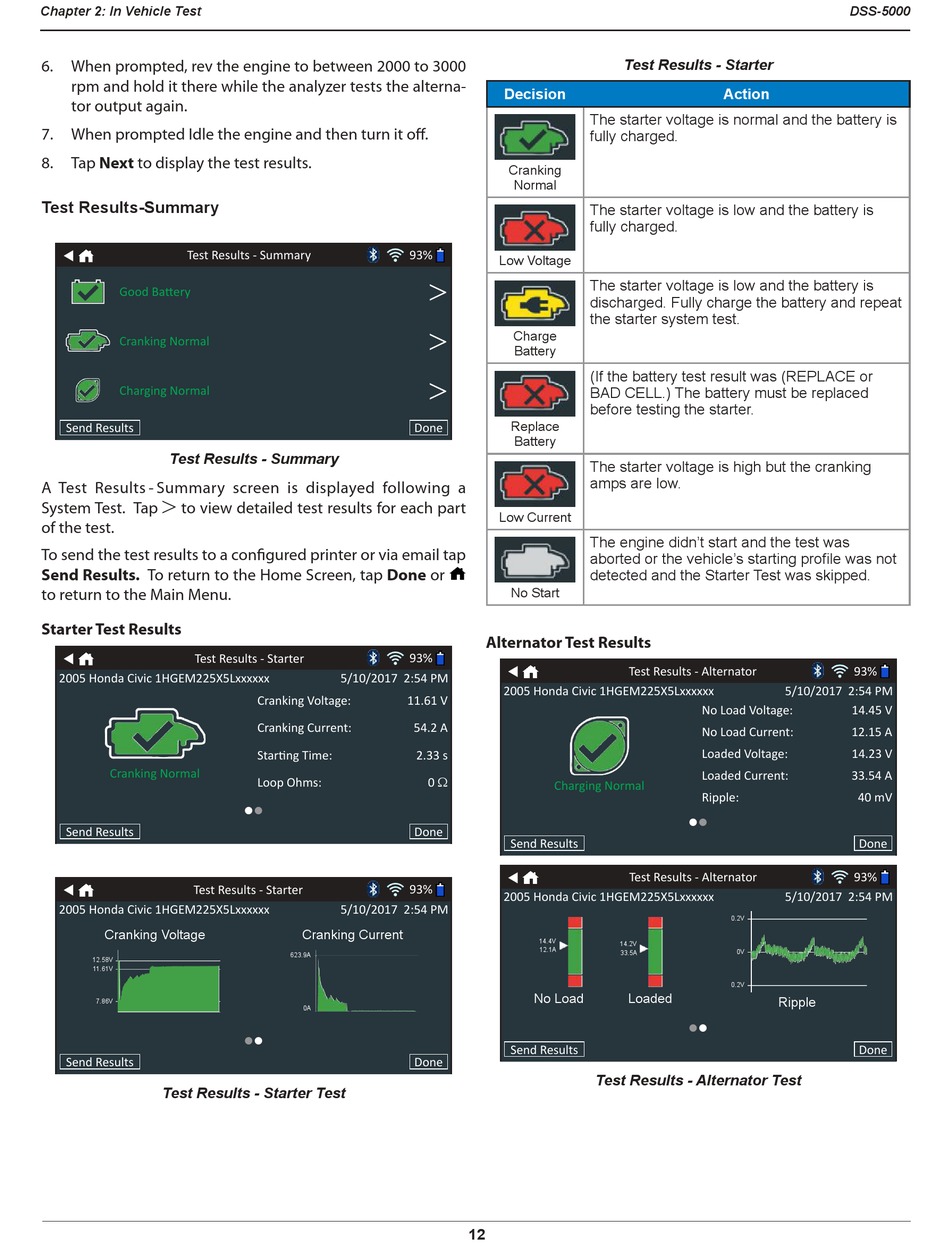

Chapter 2: In Vehicle Test
6.
When prompted, rev the engine to between 2000 to 3000
rpm and hold it there while the analyzer tests the alterna-
tor output again.
7.
When prompted Idle the engine and then turn it off.
Tap Next to display the test results.
8.
Test Results-Summary
Test Results - Summary
Good Battery
Cranking Normal
Charging Normal
Send Results
Test Results - Summary
A Test Results - Summary screen is displayed following a
>
System Test. Tap
to view detailed test results for each part
of the test.
To send the test results to a configured printer or via email tap
Send Results. To return to the Home Screen, tap Done or
to return to the Main Menu.
Starter Test Results
Test Results - Starter
2005 Honda Civic 1HGEM225X5Lxxxxxx
Cranking Normal
Send Results
Test Results - Starter
2005 Honda Civic 1HGEM225X5Lxxxxxx
Cranking Voltage
12.58V
11.61V
7.86V
Send Results
Test Results - Starter Test
93%
Done
93%
5/10/2017 2:54 PM
Cranking Voltage:
11.61 V
Cranking Current:
54.2 A
Starting Time:
2.33 s
Loop Ohms:
Done
93%
5/10/2017 2:54 PM
Cranking Current
623.9A
0A
Done
Decision
The starter voltage is normal and the battery is
fully charged.
Cranking
Normal
The starter voltage is low and the battery is
fully charged.
Low Voltage
>
The starter voltage is low and the battery is
discharged. Fully charge the battery and repeat
the starter system test.
>
Charge
Battery
(If the battery test result was (REPLACE or
>
BAD CELL.) The battery must be replaced
before testing the starter.
Replace
Battery
The starter voltage is high but the cranking
amps are low.
Low Current
The engine didn't start and the test was
aborted or the vehicle's starting profile was not
detected and the Starter Test was skipped.
No Start
Alternator Test Results
2005 Honda Civic 1HGEM225X5Lxxxxxx
0 Ω
Charging Normal
Send Results
2005 Honda Civic 1HGEM225X5Lxxxxxx
14.4V
12.1A
No Load
Send Results
Test Results - Alternator Test
12
Test Results - Starter
Action
Test Results - Alternator
5/10/2017 2:54 PM
No Load Voltage:
No Load Current:
Loaded Voltage:
Loaded Current:
Ripple:
Test Results - Alternator
5/10/2017 2:54 PM
0.2V
14.2V
0V
33.5A
0.2V
Loaded
Ripple
DSS-5000
93%
14.45 V
12.15 A
14.23 V
33.54 A
40 mV
Done
93%
Done
