Active screen

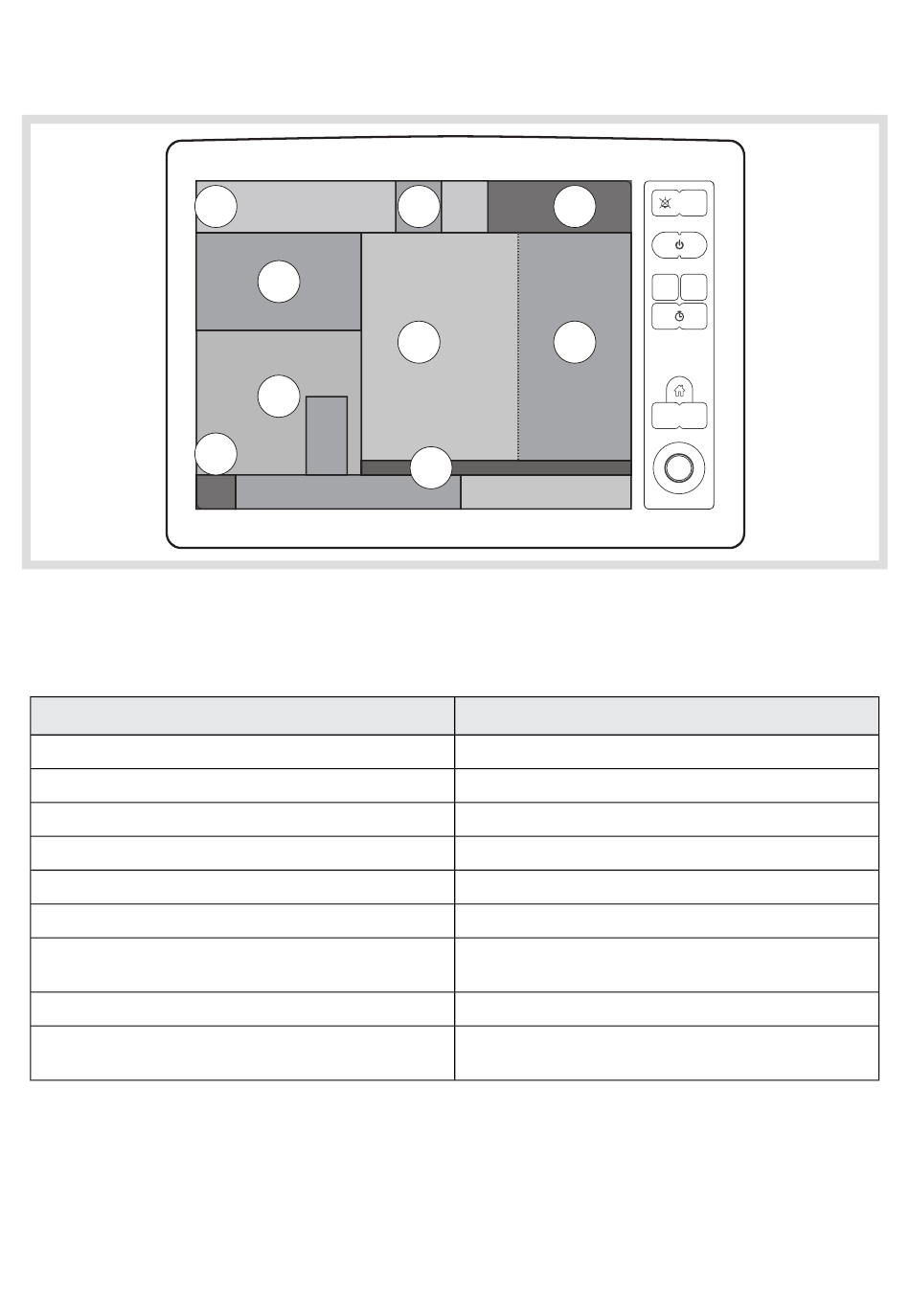

Pressing any of the areas labelled with a
number in the illustration, displays a window
according to the table below.
Screen area
1. Gas settings/ Ventilation settings
2. MAC value
3. Gas measurement area
4. Ventilation measurement area
5. Patient category symbol
6. Alarm functions
7. Mode indicator area
8. Waveform area
9. Tab area (displayed window depends on
selected tab)
FLOW-i 4.2, User's Manual
5
4
3
2
6 7
8 9
1
Dialog/window produced
Multiple windows, see Chapter 5
Patient category, see Chapter 5, page 75.
Alarm profile window, see Chapter 10, page 187.
Alarm profile window, see Chapter 10, page 187.
Patient category, see Chapter 5, page 75.
Alarm profile window, see Chapter 10, page 187.
Ventilation mode selection, see Chapter 5, page
87.
Waveforms and scales, see Chapter 9, page 163.
- Waveforms and scales, see Chapter 9, page 163.
- Screen layout, see Chapter 9, page 163.
