| 3 | System overview
The anesthesia system is designed to enable the operator to work with the basic parts of the
system in the most suitable way for each procedure. As the system is mounted on wheels,
and the control panel is mounted on a rotatable arm, it can be easily moved into an
ergonomically-suitable position.
There are a number of different system models available. For more information on the different
models, see page 40.

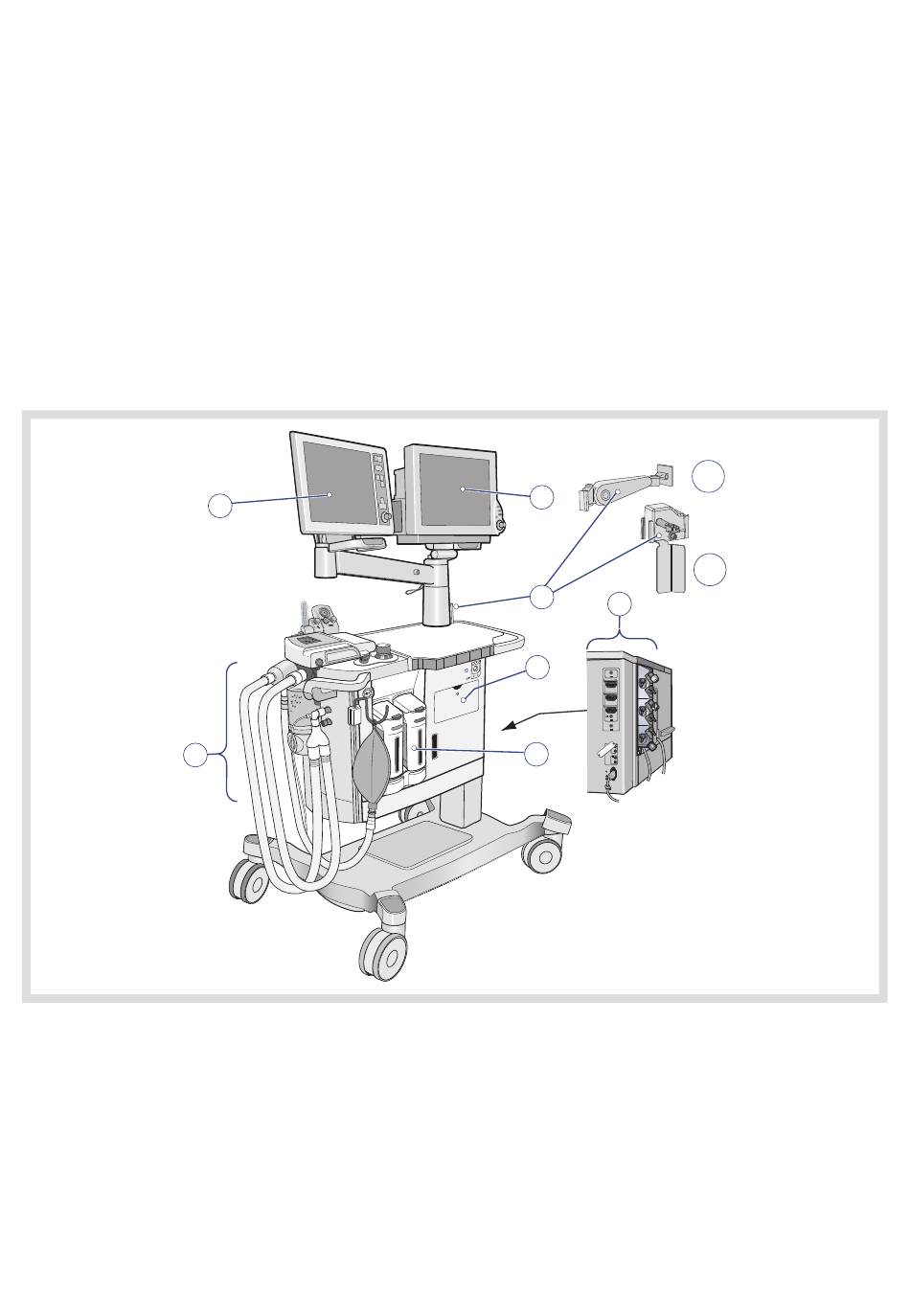

3.1 System parts
The system comprises the following basic parts:
1. Control panel
2. Patient monitor (option)
3. Additional arm 'A' (option) and/or
Gas backup holder 'B' (option)
4. External connections
1. C30 can only be equipped with the additional arm or the extra backup gas holder.
18
|
1
7
1
2
3
4
5
220-240V~
400 VA
T 1.6 A
6 250 V
T 4 A
250 V
5. Emergency ventilation system
6. Vaporizer unit
7. Breathing system
A
B
FLOW-i 4.2, User's Manual
