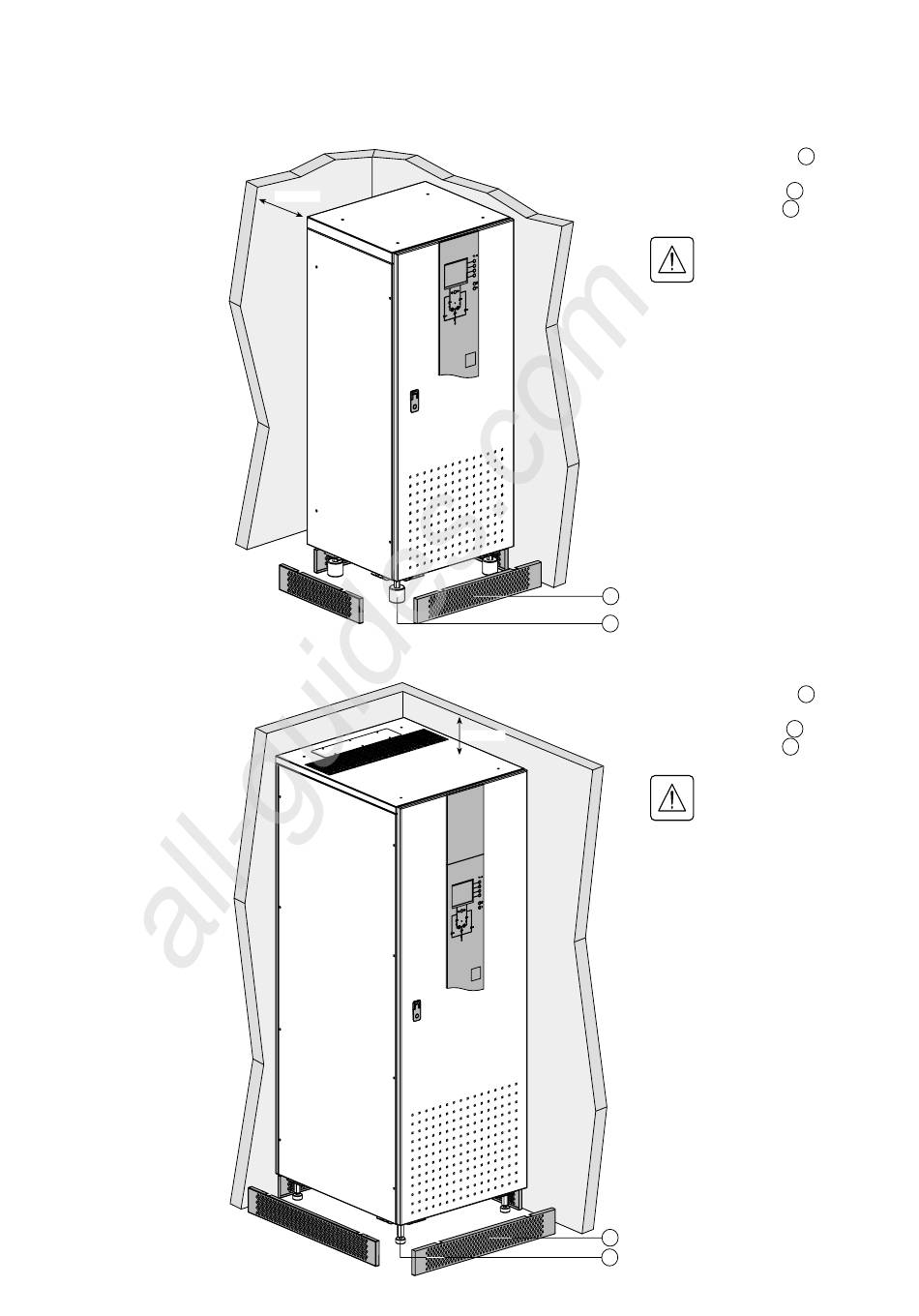

2.1 Positioning
Upsilon STS 30 - 60 - 100 - 160 - 250 A
>250 mm
Upsilon STS 30 - 60 - 100 - 160 - 250 - 400 - 600 A
All manuals and user guides at all-guides.com
(cabinet 1400 mm high)
>350 mm
2. Installation
1 - Unclip the base panels 14 .
2 - Set the cabinet to a level position using
the adjustable foot pads 15 .
3 - Put the base panels 14 back in place.
Important: correct ventilation
requires at least 250 mm of free
space behind the cabinet.
14
15
(cabinet 1900 mm high)
1 - Unclip the base panels 14 .
2 - Set the cabinet to a level position using
the adjustable foot pads 15 .
3 - Put the base panels 14 back in place.
Important: correct ventilation
requires at least 350 mm of free
space above the cabinet.
14
15
- Page 11
34020113EN/AA
