Upsilon STS 30 to 250 A
Upsilon STS 30 to 250 A
Upsilon STS 30 to 250 A
All manuals and user guides at all-guides.com

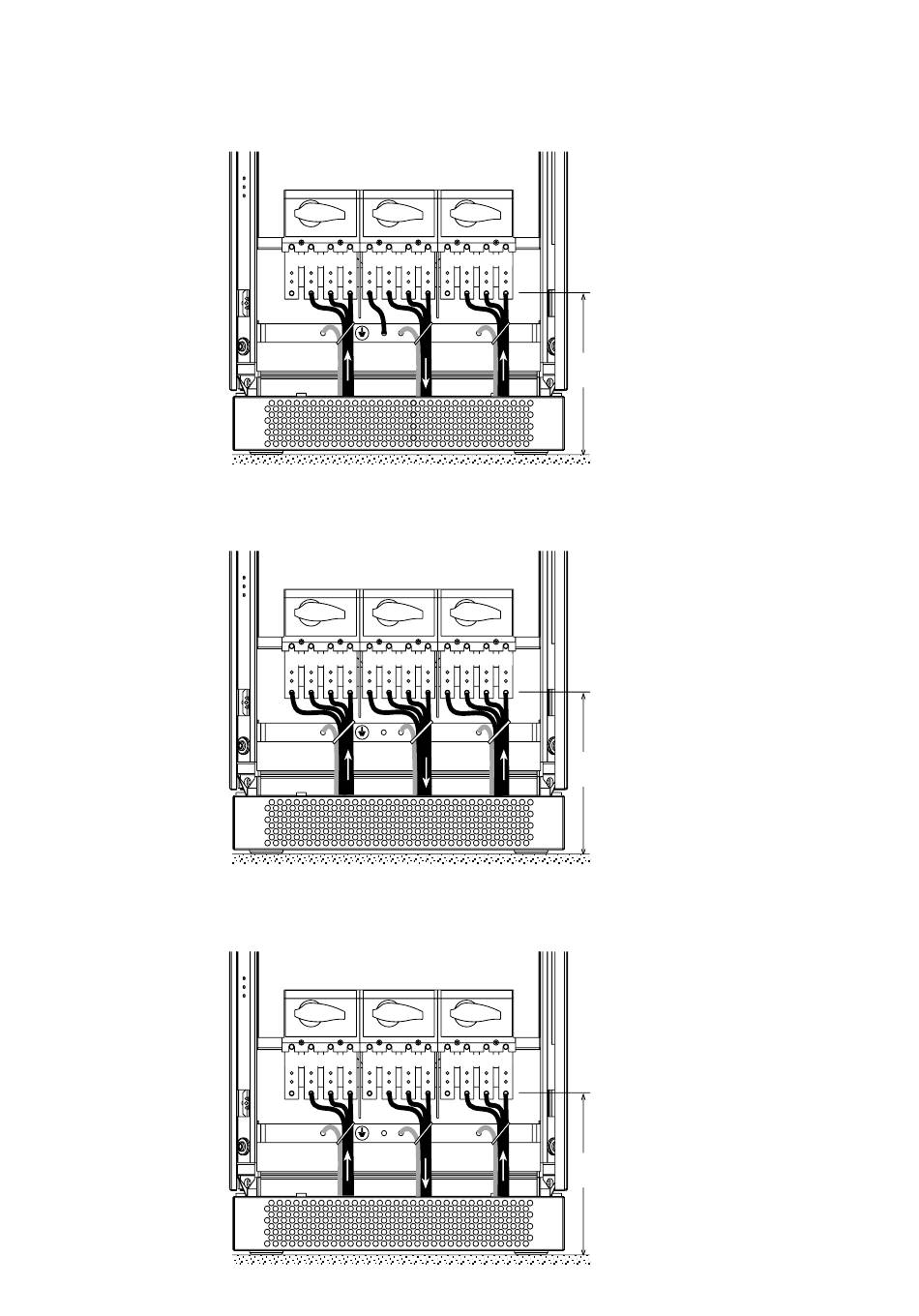

Input:
Output: 3 phases + PE
N L1 L2 L3 N L1 L2 L3 N L1 L2 L3
N
PEN PE
S1
Input:
Output: 3 phases + PE + Neutral
N L1 L2 L3 N L1 L2 L3 N L1 L2 L3
N N N
PE PE
S1
Input:
Output: 3 phases + PE
N L1 L2 L3 N L1 L2 L3 N L1 L2 L3
PE PE
S1
3 phases + PEN
PEN
275 mm
S2
3 phases + PE + Neutral
PE
275 mm
S2
3 phases + PE
PE
275 mm
S2
2. Installation
See section 1.3 for information on accessing
the connections.
Connections are made using lugs connected
to threaded studs (diameter 8 mm).
The cables are tied to the earth bar.
See section 1.3 for information on accessing
the connections.
Connections are made using lugs connected
to threaded studs (diameter 8 mm).
The cables are tied to the earth bar.
See section 1.3 for information on accessing
the connections.
Connections are made using lugs connected
to threaded studs (diameter 8 mm).
The cables are tied to the earth bar.
34020113EN/AA
- Page 13
