1. Presentation

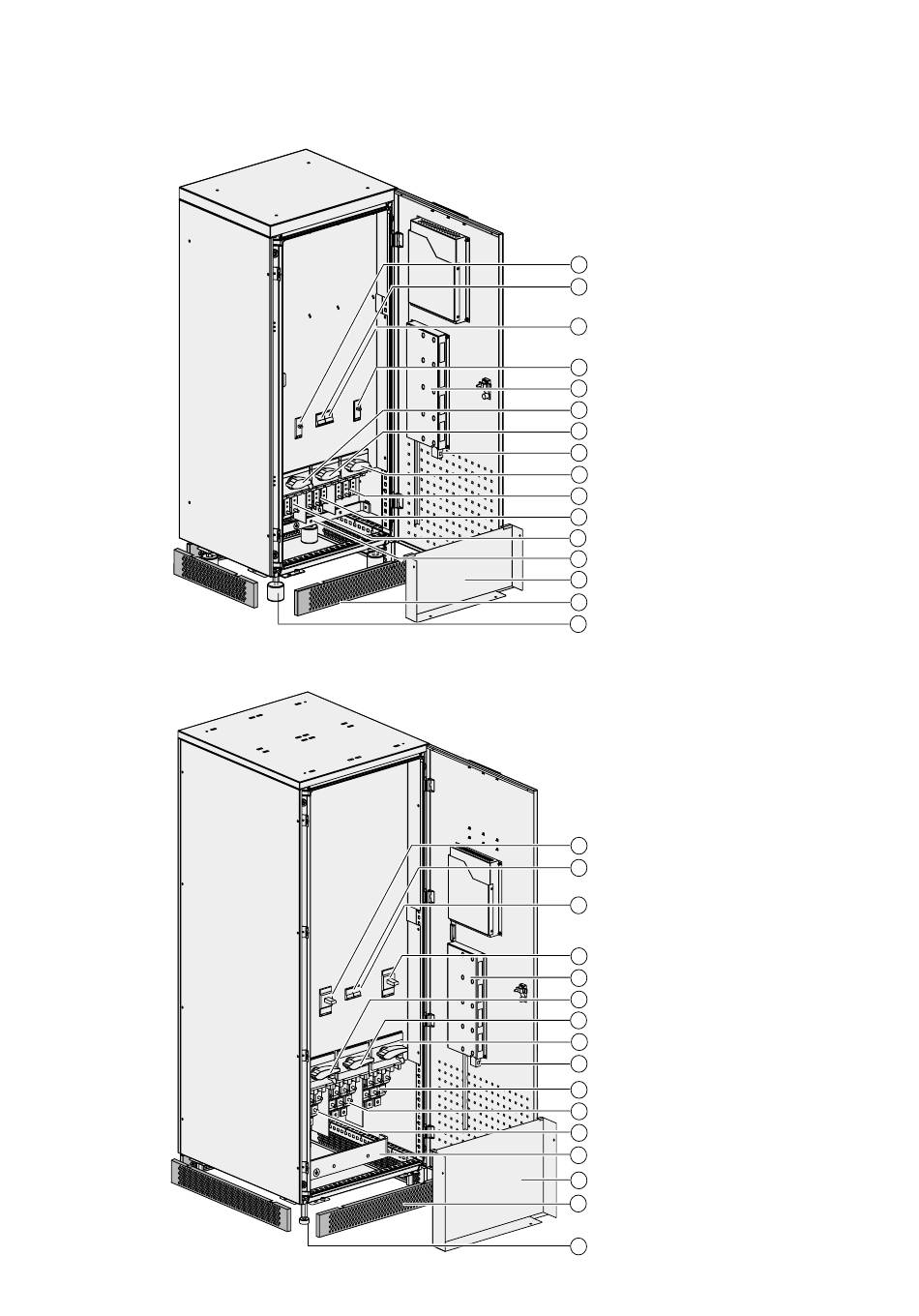

1.3 Access to control and connections

Upsilon STS 30 - 60 - 100 - 160 - 250 A
Upsilon STS 30 - 60 - 100 - 160 - 250 - 400 - 600 A
Page 8 -
34020113EN/AA
All manuals and user guides at all-guides.com
(cabinet 1400 mm high)
1
Switch Q1 for Source S1
2
Circuit breaker Q5 for control electronics
power supply
3
Circuit breaker Q6 for control electronics
power supply
4 Switch Q2 for Source S2
5
Communication card cage
6
Bypass switch Q1BP for Source S1
7
Output switch Q3
16 Emergency power off terminal block
8
Bypass switch Q2BP for Source S2
9
Source S2 connection
10 Output connections
11
Source S1 connection
12
Earth bar
13
Connection cover
Base panels
14
15
Adjustable foot pads
(cabinet 1900 mm high)
1
Switch Q1 for Source S1
2
Circuit breaker Q5 for control electronics
power supply
Circuit breaker Q6 for control electronics
3
power supply
4
Switch Q2 for Source S2
5 Communication card cage
6 Bypass switch Q1BP for Source S1
7
Output switch Q3
8
Bypass switch Q2BP for Source S2
16
Emergency power off terminal block
9
Source S2 connection
10 Output connections
11
Source S1 connection
12
Earth bar
13 Connection cover
14
Base panels
Adjustable foot pad
15
