Daikin VRV S RXQ4/5ARV1 Service Manual page 161

SiAF332111E

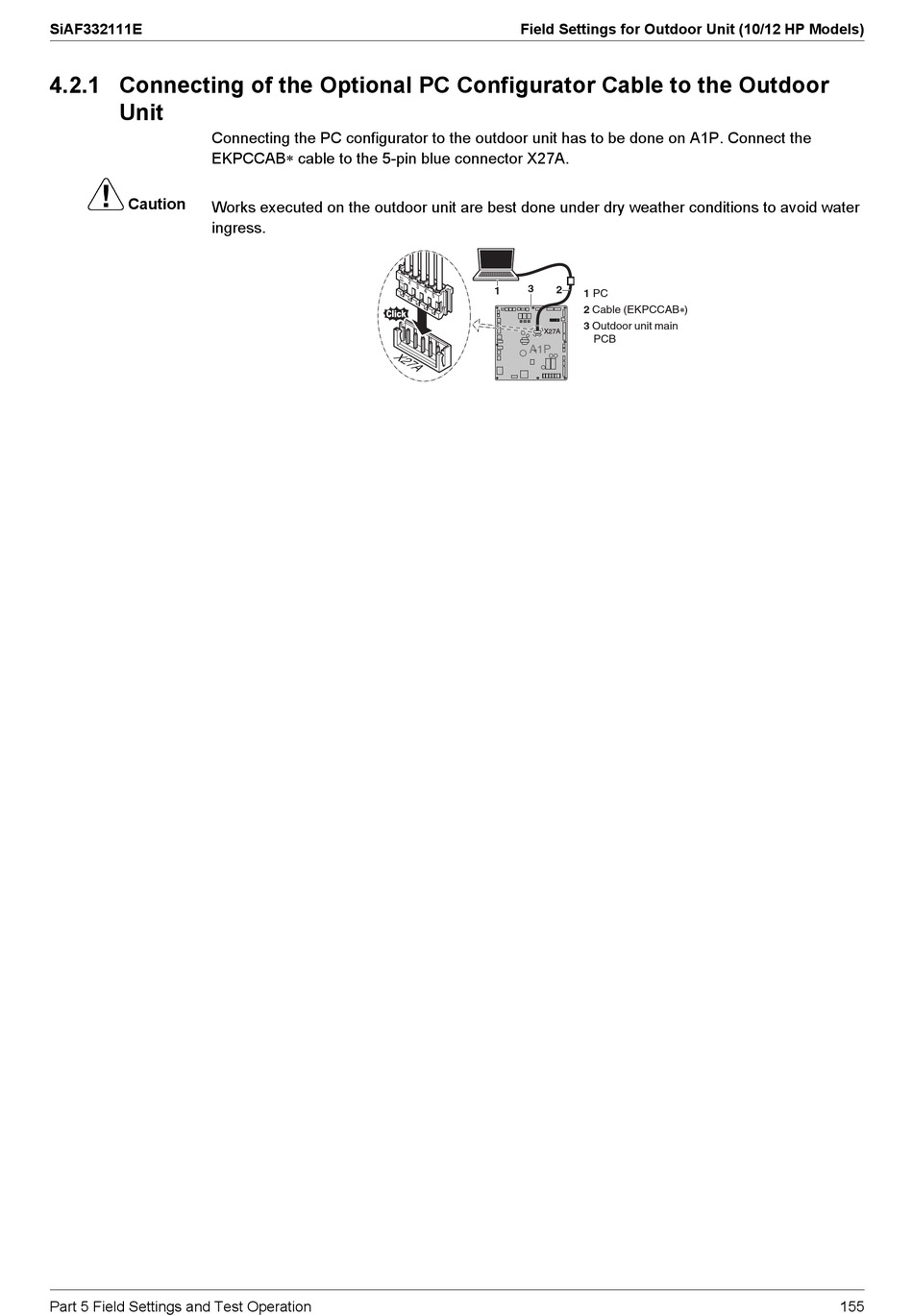

4.2.1 Connecting of the Optional PC Configurator Cable to the Outdoor
Unit
Connecting the PC configurator to the outdoor unit has to be done on A1P. Connect the
EKPCCAB cable to the 5-pin blue connector X27A.
Caution
Works executed on the outdoor unit are best done under dry weather conditions to avoid water
ingress.
Part 5 Field Settings and Test Operation
Field Settings for Outdoor Unit (10/12 HP Models)
2
3
3
2
1
4
5
X27A
A1P
1 PC
2 Cable (EKPCCAB )
3 Outdoor unit main
PCB
155
