OPERATING CONTROLS

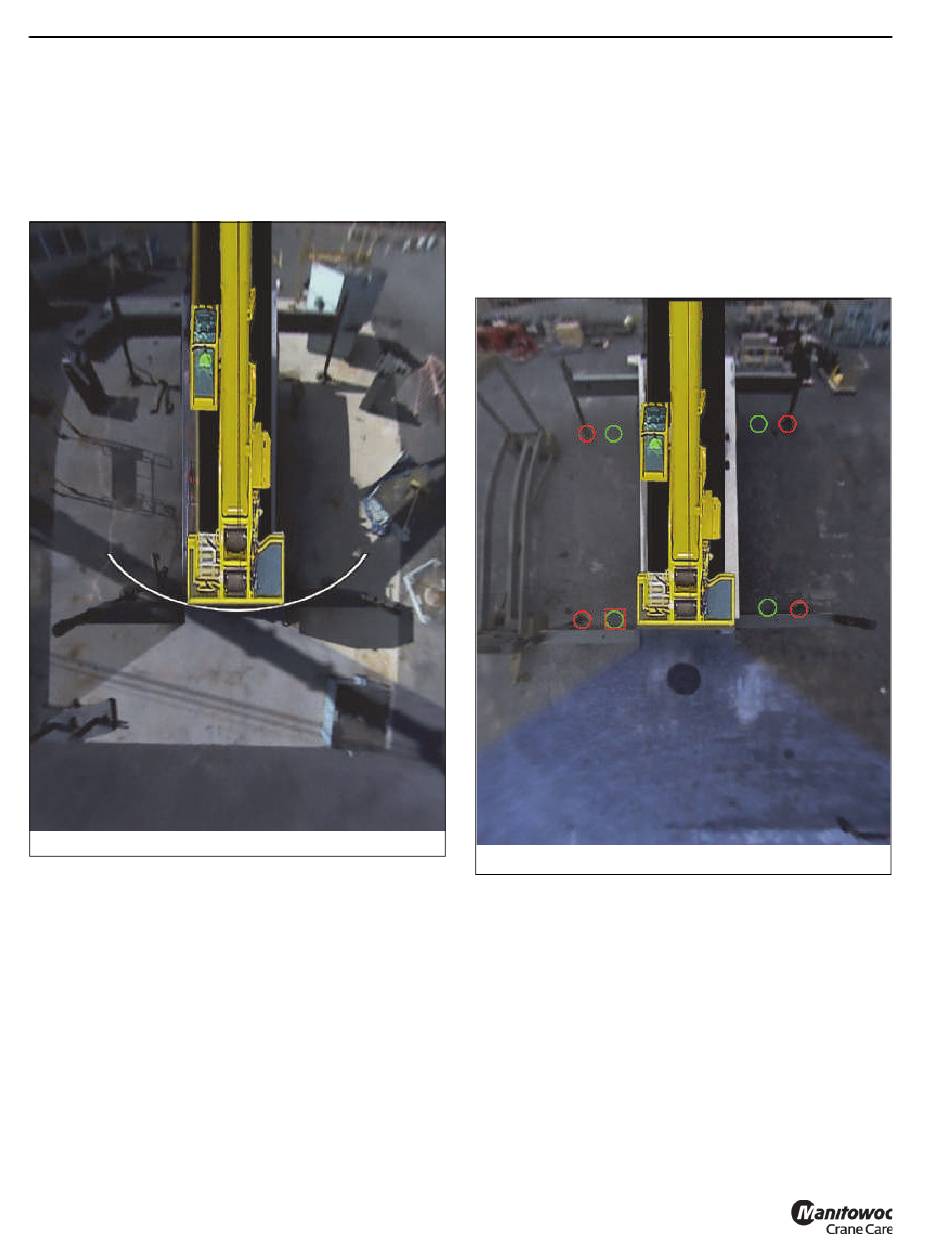

• Birdseye View with Swing Overlay
This view shows the Birdseye View as described
previously, but also automatically shows a swing overlay
when the swing function is activated (Figure 3-20).
The swing overlay is to be used as an aid to help identify
objects that may be in the superstructure's swing path.
9218-3
3-24
• Birdseye View with Outrigger Pad Target Overlay
This view shows the Birdseye View as described
previously, but also automatically shows an outrigger
pad target overlay when the superstructure is centered
over the front of the crane and the outrigger extend/
retract function is activated (Figure 3-21).
The outrigger pad target overlay is to be used as an aid
to help identify objects that may interfere with the setting
of the outriggers at the mid-extend or full-extend
position.
FIGURE 3-20
9218-10
Published 3-23-2020, Control # 654-04
GRT655/655L OPERATOR MANUAL
FIGURE 3-21
