GRT655/655L OPERATOR MANUAL

Accessing a WRL Limitation Screen

The WRL Group is made up of five WRL function icons. To
enable and define a limitation, access the related WRL
function icon in the WRL Group (Figure 4-42).
• Boom Height Limit icon
(refer to Setting the Boom Height Limitation, page 4-68)
• Boom Angle Limit icon
(refer to Setting the Boom Angle Limitation, page 4-71)
9219
Grove
•
•
•

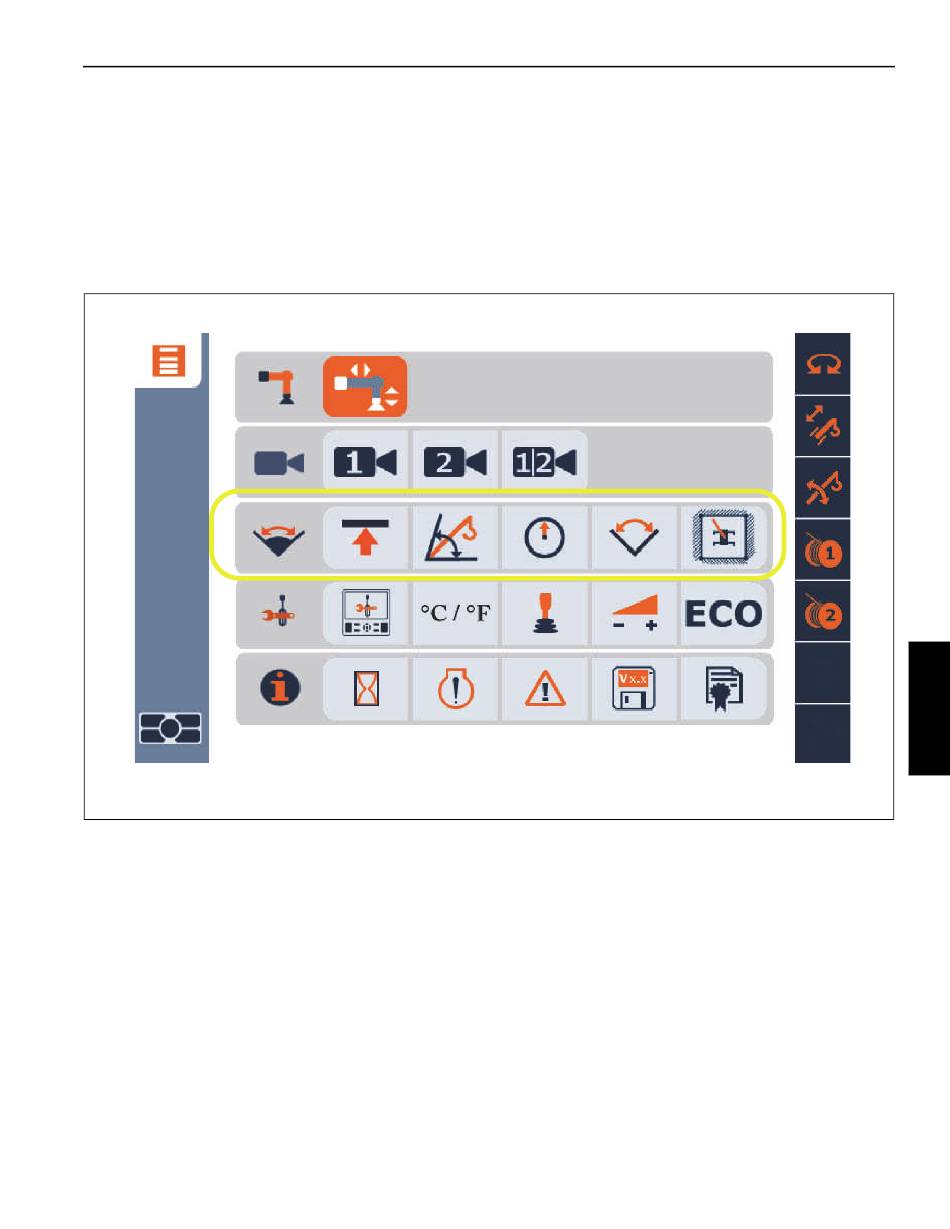

ODM Menu Screen with WRL sub-menu highlighted
Published 3-23-2020, Control # 654-04
OPERATING PROCEDURES
Radius Limit icon
(refer to Setting the Radius Limitation, page 4-74)
Swing Angle Limit icon
(refer to Setting the Swing Angle Limitation, page 4-77)
Virtual Wall Limit icon
(refer to Setting a Virtual Wall Limitation, page 4-80
4
FIGURE 4-42
4-67
