The camera views automatically change based on operator
inputs. The Birdseye View is the default view. When the
operator actuates the swing controller, the Birdseye View
with Swing Overlay will automatically appear. When the
crane superstructure is centered over the front of the carrier
and the operator presses the Outrigger Extend/Retract
Switch, the Birdseye View with Outrigger Pad Target Overlay
will automatically appear, and when the operator puts the
Transmission Lever into the Reverse position, the Reverse
View will automatically appear.

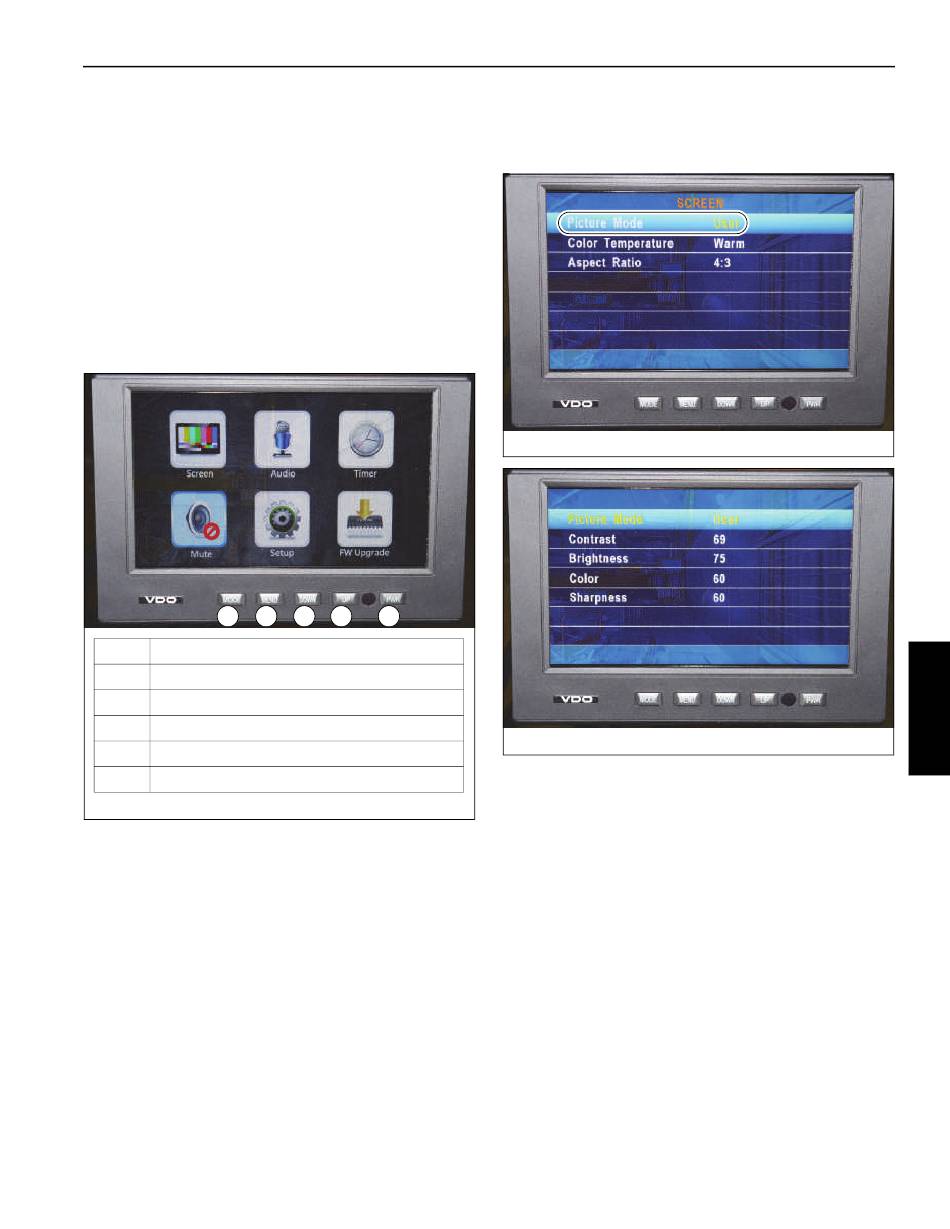

The Birdseye Camera Display has a Menu Screen where
adjustments to the display's screen and operation can be
made. Access the Menu screen by pressing the Menu Button
(Figure 4-93).
1 2
Item
1 MODE Button
2 MENU Button
3 DOWN Button
4 UP Button
5 PWR (Power) Button
9218-6
The contrast, brightness, color, and sharpness of the display
can be adjusted by performing the following procedure:
1. Press the Menu Button to access the Menu screen.
2. Press the Up or Down Button until the Screen Icon is
selected (Figure 4-93), then press the Mode Button.
3. Press the Mode Button to select the "Picture Mode -
User" menu item (Figure 4-94).
4. Press the Up or Down Button to select the contrast,
brightness, color, or sharpness menu item (Figure 4-95),
then press the Mode Button.
Grove
3 4 5
Description
FIGURE 4-93
Published 3-23-2020, Control # 654-04
OPERATING PROCEDURES
5. Press the Up or Down Button to increase or decrease
the menu item's value.
6. Press the Mode Button again to save the value.
9218-8
9218-7
For all menu item settings other than the display's contrast,
brightness, color, and sharpness values, it is recommended
to retain the factory default settings for proper operation of
the camera system.
To reset all adjustments to the factory default settings,
perform the following procedure:
1. Press the Menu Button to access the Menu screen.
2. Press the Up or Down Button until the Setup Icon is
selected, then press the Mode Button.
3. Press the Down Button until the "OSD_Reset" menu
item is selected (Figure 4-96), then press the Mode
Button.
4. Press the Down Button to indicate "Yes" you wish to
reset all settings to the factory default settings.
FIGURE 4-94
4
FIGURE 4-95
