OPERATING PROCEDURES

Setting a Virtual Wall Limitation

If the Virtual Wall Limitation is selected from the menu of
WRL limitations, then the Virtual Wall Limitation Screen will
be shown (Figure 4-47).
8797-37
Using the Left Arrow and Right Arrow function on the
Navigation Control Pad or the Jog Dial changes the object
highlighted on the screen. As the arrow keys are pressed,
the highlight will move between the objects, with the color
orange typically meaning that the object is selected and can
4-80

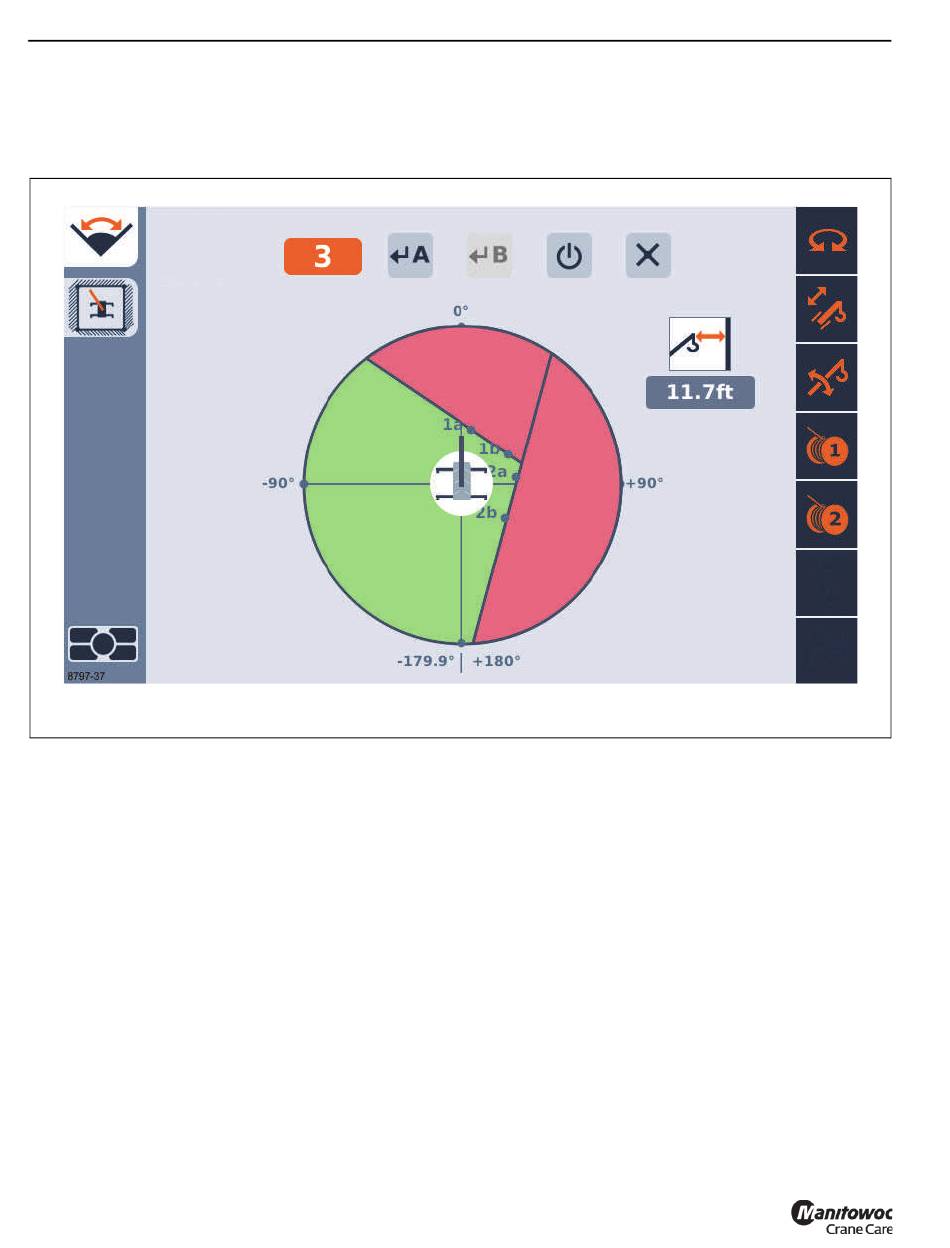

Virtual Wall Limitation Screen with 2 Virtual Walls already active
Published 3-23-2020, Control # 654-04
GRT655/655L OPERATOR MANUAL
be affected by subsequent actions. In Figure 4-47, one can
see that the wall number symbol is selected since it has the
orange color highlighting. Table 4-10 shows the objects
available on the Virtual Wall Limitation Screen.
FIGURE 4-47
