Control Seat Assembly - Manitowoc Grove GRT655 Operator's Manual

GRT655/655L OPERATOR MANUAL

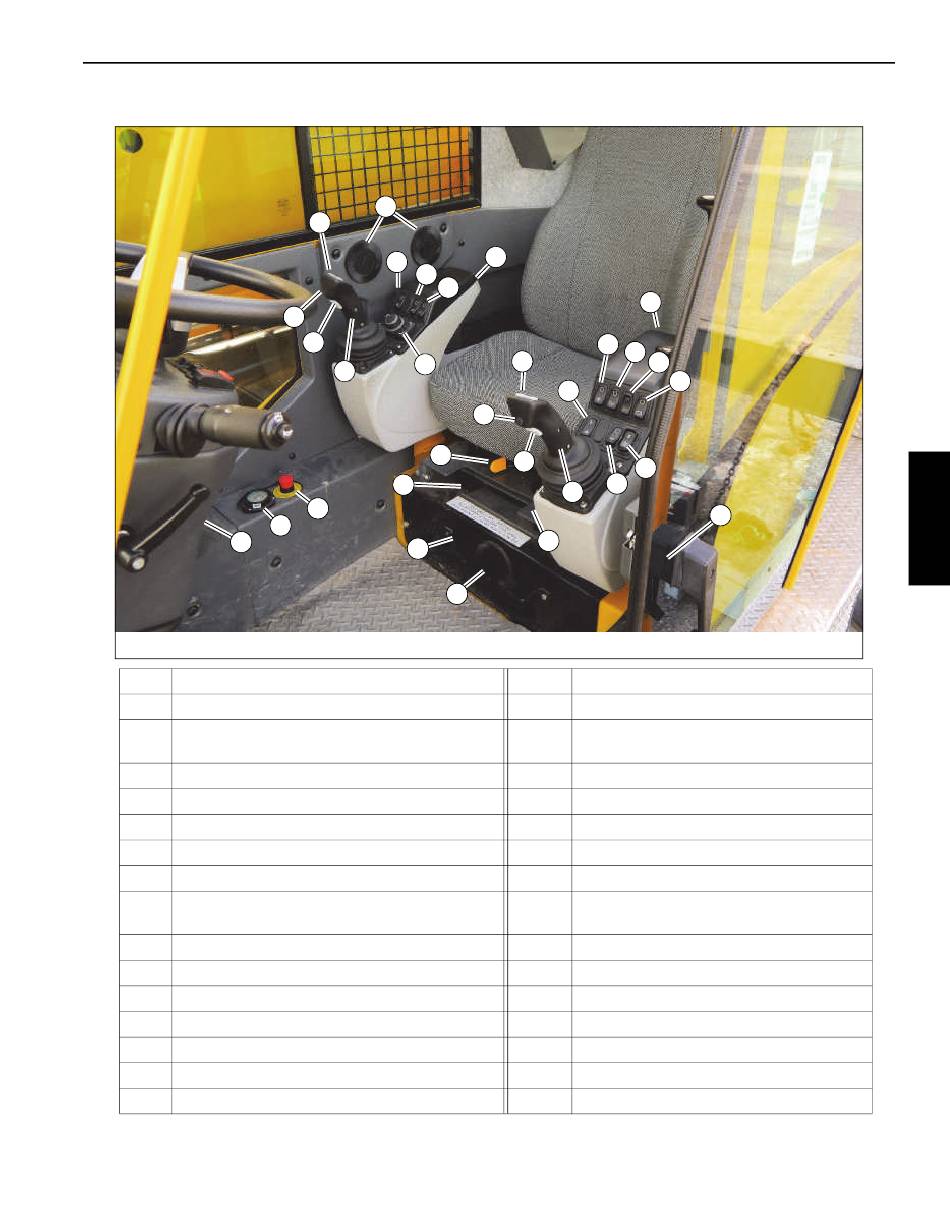

CONTROL SEAT ASSEMBLY

20
8044-2
20
9232
Item
1
Boom Lift/Main Hoist Controller
Swing/Telescope or Swing/Auxiliary Hoist
2
Controller
3 Main Hoist Enable/Disable Switch
4 Boom Up Bypass Switch
5 Boom Lift Enable/Disable Switch
6 Jog Dial
7 Outrigger Extend/Retract Switch
8 Differential Lock On/Off Switch (Optional)
9 Rear Steer Switch
10 Auxiliary Hoist Enable/Disable Switch (Optional)
11 Boom Telescope Enable/Disable Switch
12 Cab Tilt Switch
13 Swing Enable/Disable Switch
14 Seat Slide Lever
15 AC/Heater Climate Unit
Grove
16
24
24
4
3
3
4
5
5
25
25
23
23 6
1
6
1
22
14
21
17
14
15
17
16
21
22
15
16
Description
Published 3-23-2020, Control # 654-04
17
18
18
10
23
11
12
7
10
11
24
26
7
22
9
26
2
8
23
19
8
2
19
Item
16 AC/Heater Vents
17 Seat Frame Slide Lever
18 Armrest Adjustment Button (Underside)
19 Seat Height Adjustment Lever
20 Limit Bypass Switch - Keyed
21 Emergency Stop Switch
22 Level Indicator
Deadman Switches (Optional) (Dual Axis
23
Controllers only)
24 Hoist Speed Toggle Switches
25 Horn Button
26 Free Swing Button
27 Cab Door Release Lever
28 Hoist Rotation Indicators (Not Shown)
29 Seat Switch (Not Shown)
OPERATING CONTROLS
18
13
12
27
13
9
FIGURE 3-8
27
FIGURE 3-8
Description
3
3-11
