OPERATING PROCEDURES

Setting the Radius Limitation

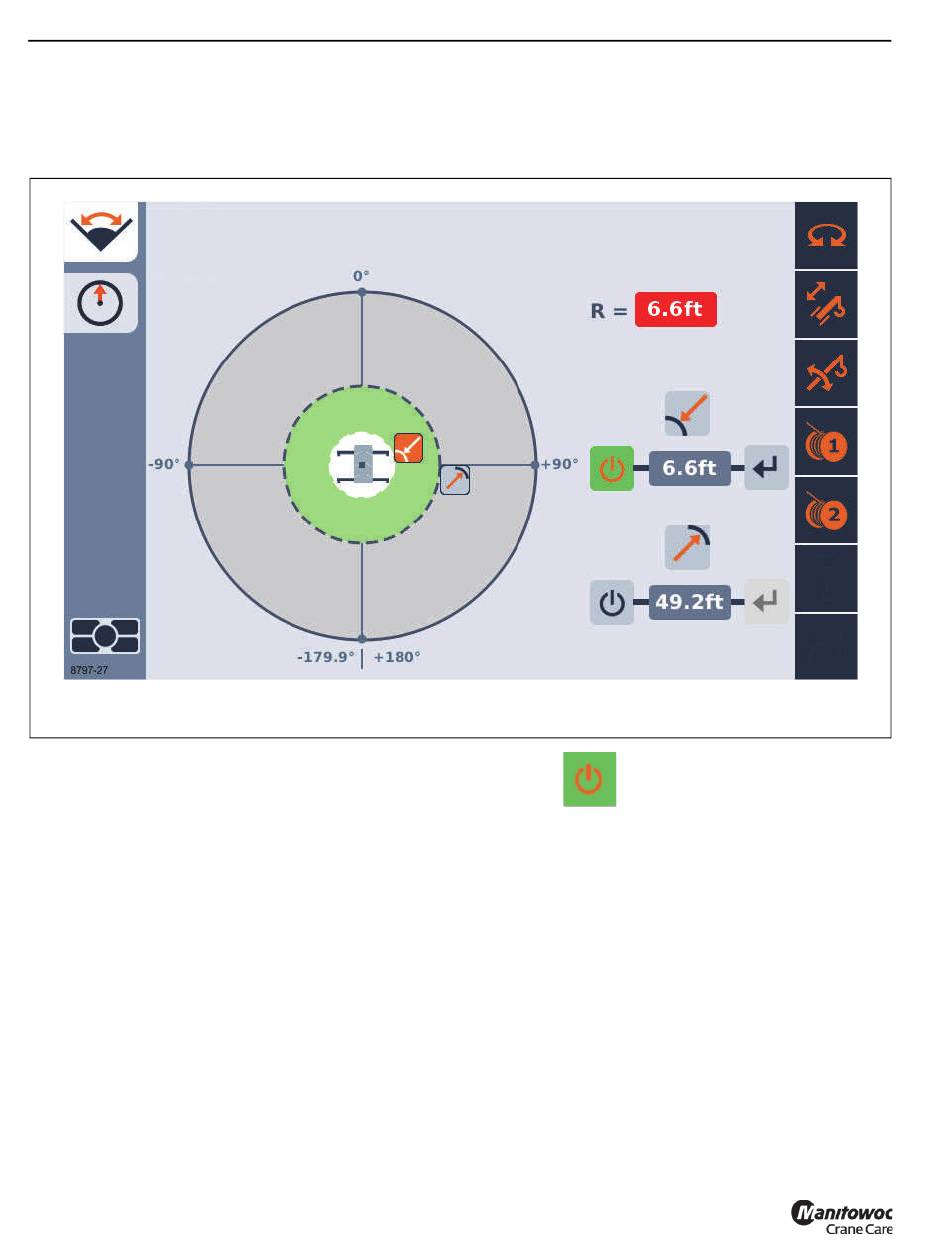

If the Radius Limitation is selected from the menu of WRL
limitations, the Radius Limitation Screen will be shown
(Figure 4-45).
8797-27
Using the Left Arrow and Right Arrow function on the
Navigation Control Pad or the Jog Dial changes the object
highlighted on the screen. As the arrow keys are pressed,
the highlight will move between the objects, with the color
orange typically meaning that the object is selected and can
be affected by subsequent actions. In Figure 4-45, one can
4-74
Radius Limitation Screen
see that the
since it has the orange color highlighting. Table 4-8 shows
the objects available on the Radius Limitation Screen. Note
that the radius cannot be typed in (as is possible with the
Height Limitation).
Published 3-23-2020, Control # 654-04
GRT655/655L OPERATOR MANUAL
symbol for minimum radius is selected
FIGURE 4-45
