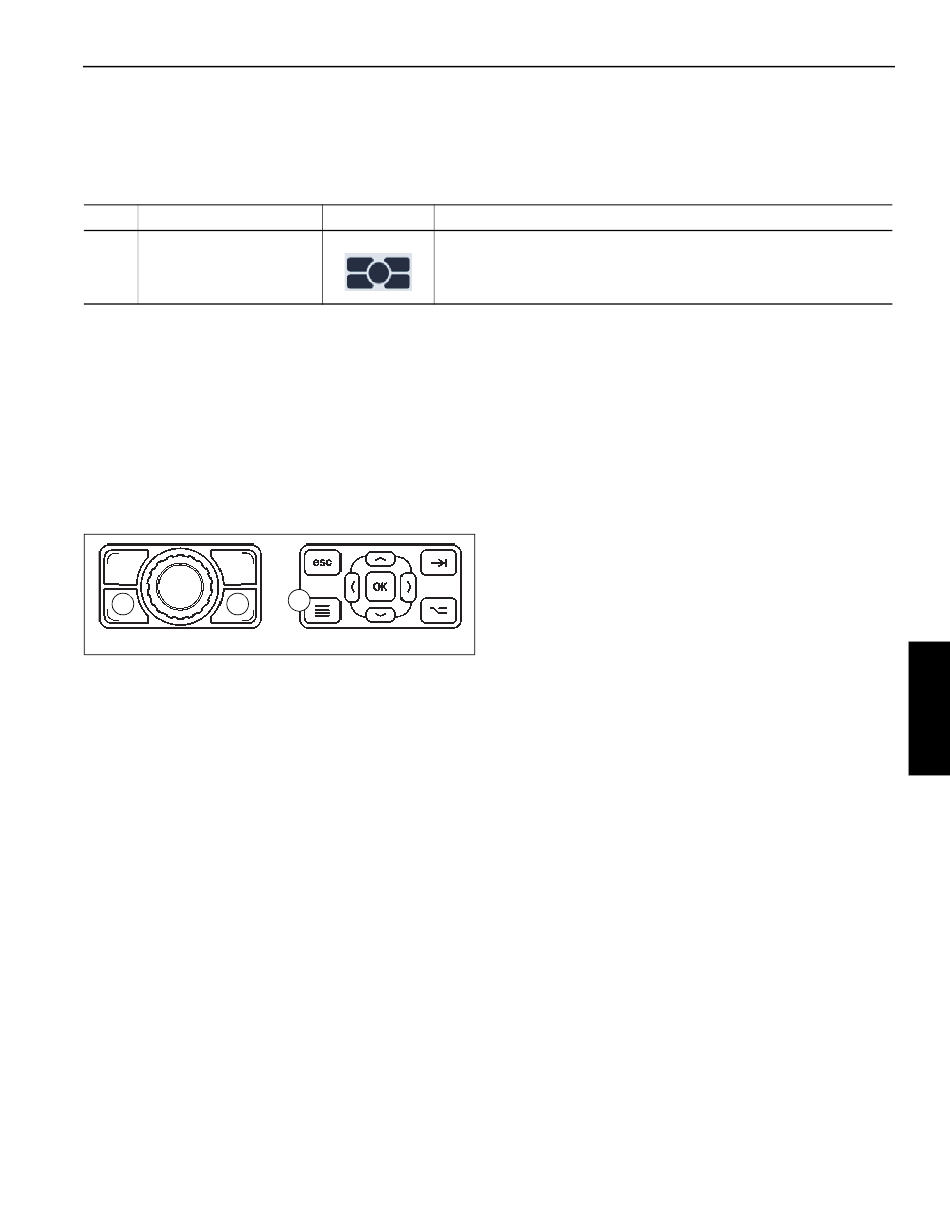

Menu Screen; Active Screen Indicator Area - Manitowoc Grove GRT655 Operator's Manual

GRT655/655L OPERATOR MANUAL

Active Screen Indicator Area

The following icon can appear in the Active Screen Indicator
Area (4, Figure 4-18 and Figure 4-19) of the ODM Main
Screen:
Item Description
47 Active Screen Indicator

Menu Screen

The Menu Screen (Figure 4-21) of the ODM is accessed by
doing one of the following:
• Press the Screen Toggle Button (1, Figure 4-20) at the
Jog Dial to select the ODM screen control, then press
the Menu Button (2).
- or -
• Press the Menu Button (3, Figure 4-20) on the
Navigation Control Pad at the ODM.
2 1
The ODM Menu Screen has the following menu items for
operating the crane:
• Outrigger Group (4, Figure 4-21)
(refer to Outrigger Group, page 4-55, for detailed
information)
- Extending/Retracting the Outriggers
• Camera Group (Optional) (6, Figure 4-21)
(refer to Camera Group (Optional), page 4-59, for
detailed information)
- Setting the Camera 1 View
- Setting the Camera 2 View
- Setting the Camera 1/2 View
Grove
Graphic
Indicates the ODM screen is being controlled by the Jog Dial.
Refer to Navigating the Operator Display Module and Rated
Capacity Limiter Display Module, page 4-34.
3
FIGURE 4-20
Published 3-23-2020, Control # 654-04
OPERATING PROCEDURES
Explanation
• Working Range Limiter Group (10, Figure 4-21)
(refer to Working Range Limiter Group, page 4-61, for
detailed information)
- Setting the Boom Height Limit
- Setting the Boom Angle Limit
- Setting the Radius Limit
- Setting the Slew Angle Limit
- Creating Virtual Walls
• Tools Group (16, Figure 4-21)
( r e f e r t o To o l s G r o u p , pa g e 4 - 8 3 , f o r d e ta i l e d
information)
- Setting the Display Screen Brightness
- Setting the Units of Measure (Metric/Imperial)
- Setting the Controller Sensitivity
- Setting the Controller Function Speed
- Setting ECO Mode to On/Off
• Information Group (22, Figure 4-21)
(refer to Information Group, page 4-89, for detailed
information)
- Viewing the Hours of Operation
- Viewing the Engine/Transmission Fault Codes
- Viewing the Crane Fault Codes
- Viewing the Software Versions
- Viewing the Legal Notice
