OPERATING CONTROLS AND PROCEDURES

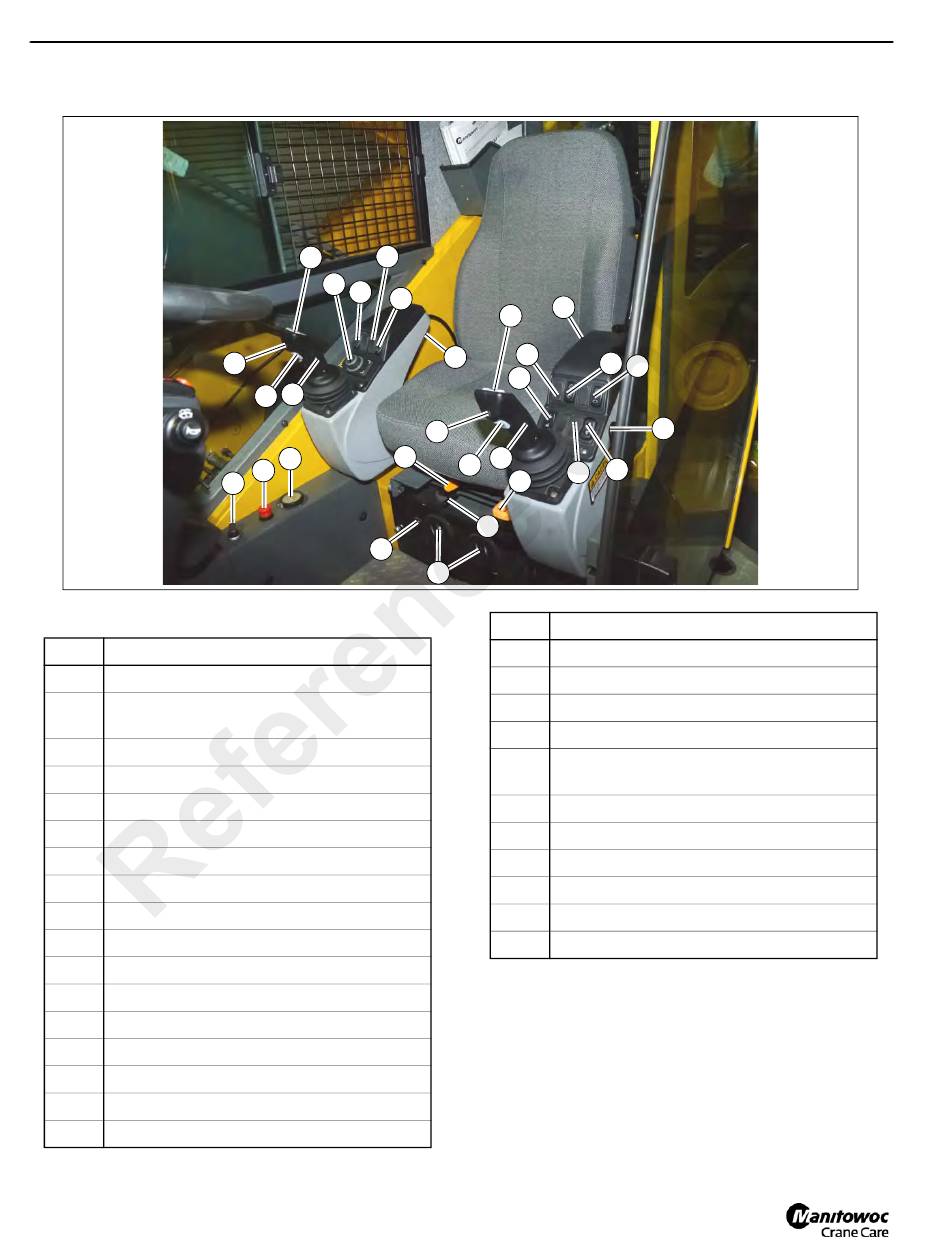

CONTROL SEAT ASSEMBLY

8044-2
Figure 3-6 Item Numbers
Item
1 Boom Lift/Main Hoist Control Lever
Swing/Telescope or Swing/Auxiliary Hoist
2
Control Lever
3 Main Hoist Enable Switch
4 Boom Up Bypass (Optional)
5 Boom Lift Function Enable Switch
6 Jog Dial
7 Outrigger Function Enable Switch
8 Differential Lock On/Off (Optional)
9 Rear Steer Switch
10 Auxiliary Hoist Enable Switch (Optional)
11 Boom Telescope Enable Switch
12 Swing Enable Switch
13 Seat Slide Lever
14 AC/Heater Climate Unit
15 AC/Heater Vents
16 Seat Frame Slide Lever
17 Armrest Adjustment Button(s) (Underside)
3-8
4
23
6
3
5
24
1
22
13
21
20
19
14
Description
Published 01-15-2016, Control # 526-01
17
23
10
17
11
7
25
2
22
8
18
16
15
Item
18 Seat Height Adjustment Lever
19 RCL Bypass Switch
20 Emergency Stop Switch
21 Level Indicator
Deadman Switches (Optional) (Dual Axis
22
Control Levers only)
23 Hoist Speed Toggle Switches
24 Horn
25 Free Swing Button
26 Cab Door Release Lever
27 Hoist Rotation Indicators (Not Shown)
28 Seat Switch (Not Shown)
Boom Lift/Main Hoist Control Lever (Dual
Axis)
The Boom Lift/Main Hoist Control Lever (1) (Figure 3-6) is
located on the right armrest. The controller, when pushed to
the right lowers the boom, or pushed left raises the boom.
When used for main hoist, the controller, when pushed
forward lowers the cable, or pulled back raises the cable.
RT540E OPERATOR MANUAL
12
26
9
FIGURE 3-6
Description
