Menu Screen

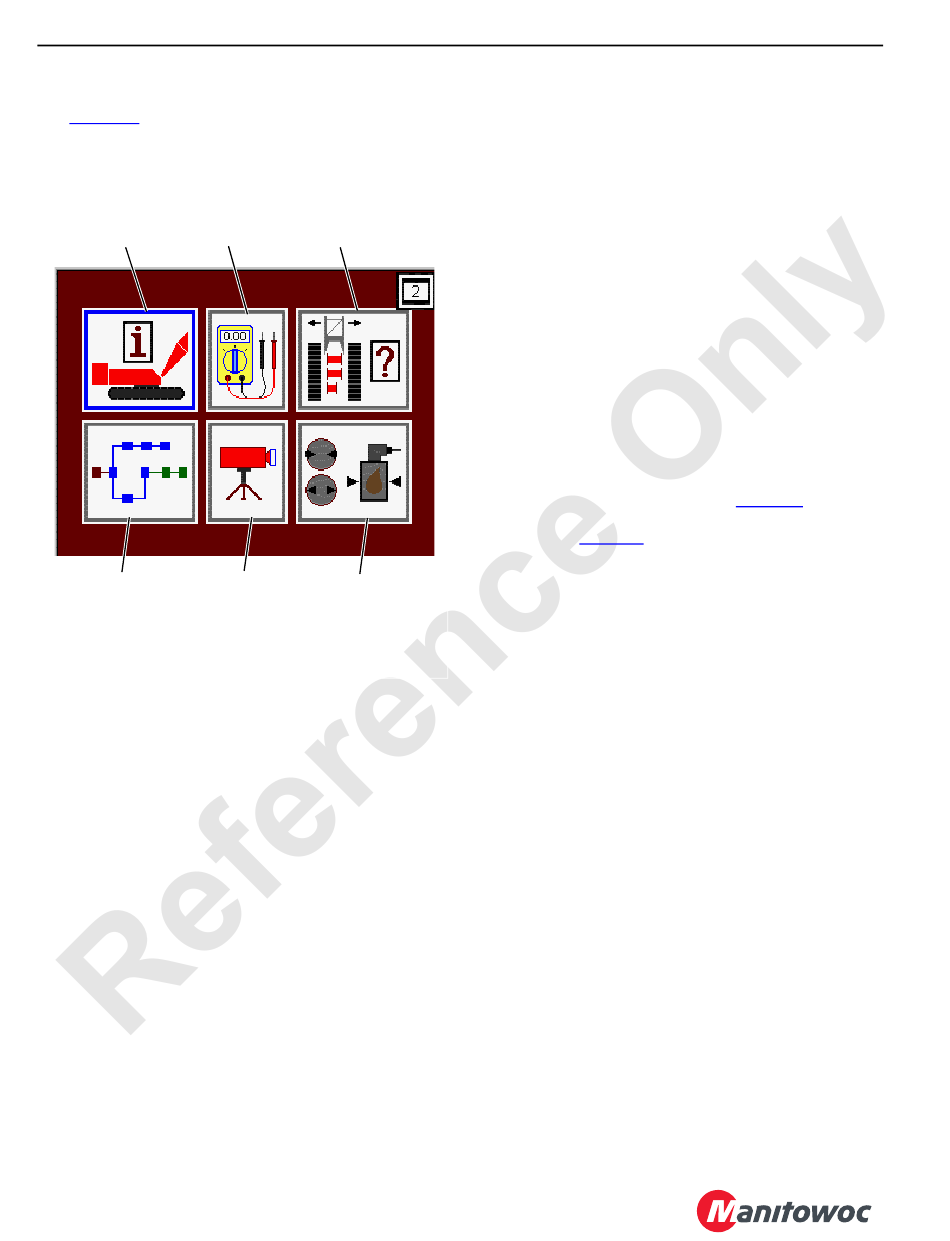

See Figure 3-7 for the following procedure.
The Menu screen is the base screen for the crane system.
Enter all other screens from this screen. Exiting from any
screen will return to the Menu screen.
Information
Diagnostic
Screen
Screen
CAN Bus
Screen
3-34
Function Mode
Screen
D16-03
Pressure Test and
Camera
Calibration Screen
Screen
FIGURE 3-7
Published 05-03-17, Control # 228-03
16000 SERVICE/MAINTENANCE MANUAL
The Menu screen shows six screen icons and operates on
one level only:
• Use the Select buttons to select an icon. Press the Enter
button to go to the screen for the selected icon.
• To return to the Menu screen, press the Exit button until
the Menu screen appears.

Information Screen

Engine and Crane Information

The Information screen shows the crane information
required for viewing during normal operation, as well as
engine diagnostic and fault information. Faults are also
shown on the Information screen. Potential crane faults are
shown below.
For details on the information screen, see Section 3 of the
16000 Operator Manual.

Crane Faults

The Fault Information box (on the Information screen)
provides information on crane faults.
faults that can appear in the fault screen. Some of the fault
items shown in Table 3-8 may not be on your crane.
Faults indicated with an asterisk (
in the direction of the fault. Corrective action must be taken
before continuing crane operation. The other faults will not
stop crane operation. Correct all faults as soon possible.
Table 3-8 lists all the
*
) will stop crane operation
