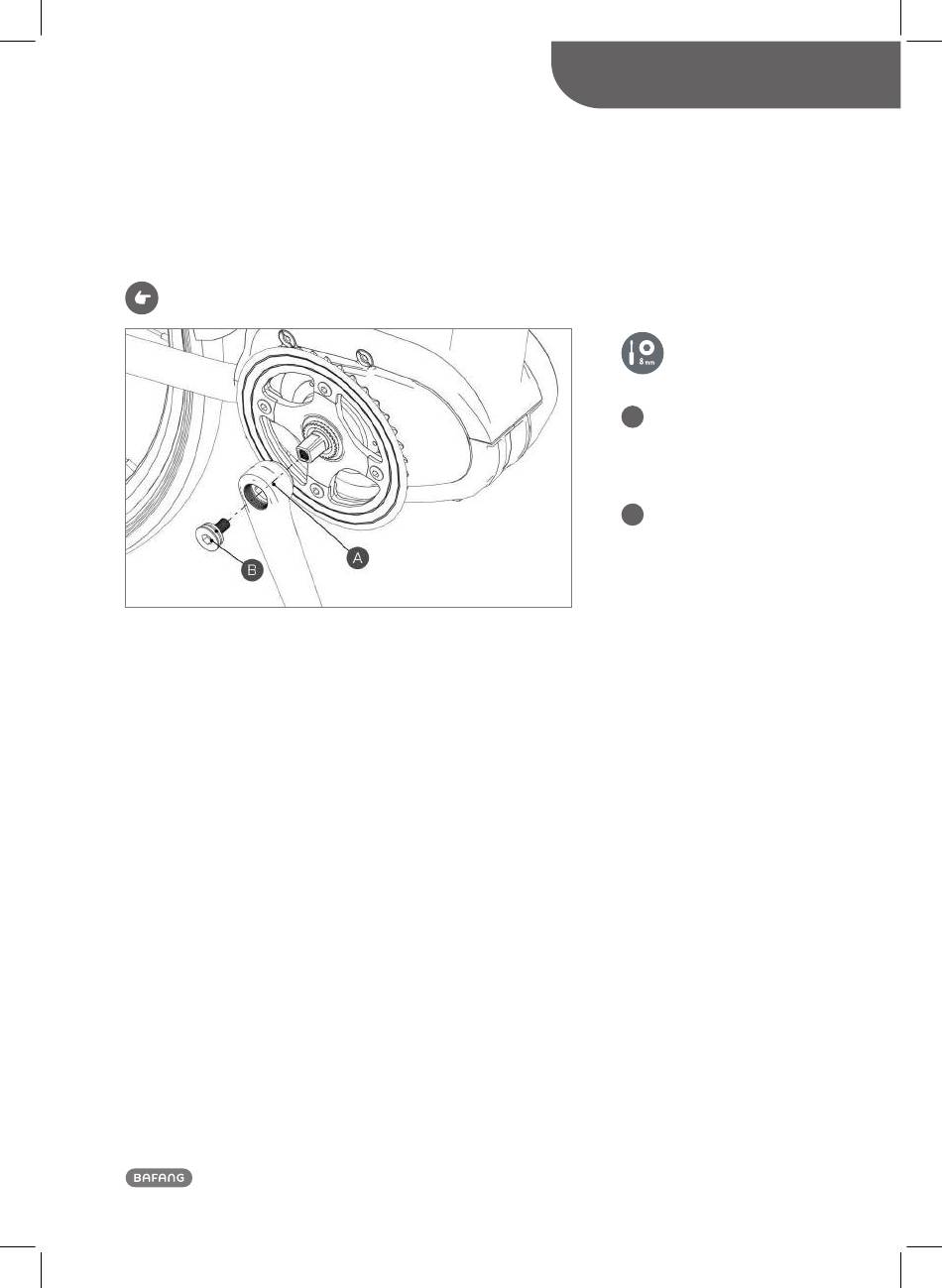

Installation of the crank without a chain guard
Fasten the right crank onto the bottom bracket on the right with a screw M8.
Install the left crank in the same way.
torque: 35 – 40 nm
DEALER MAnuAL Max Drive SySteM
CHAIn GuARD InStALLAtIon
right straight crank
A
1327010000001
left straight crank
1327020000001
screws M8 for mounting
b
the crank
1401020000109
38
