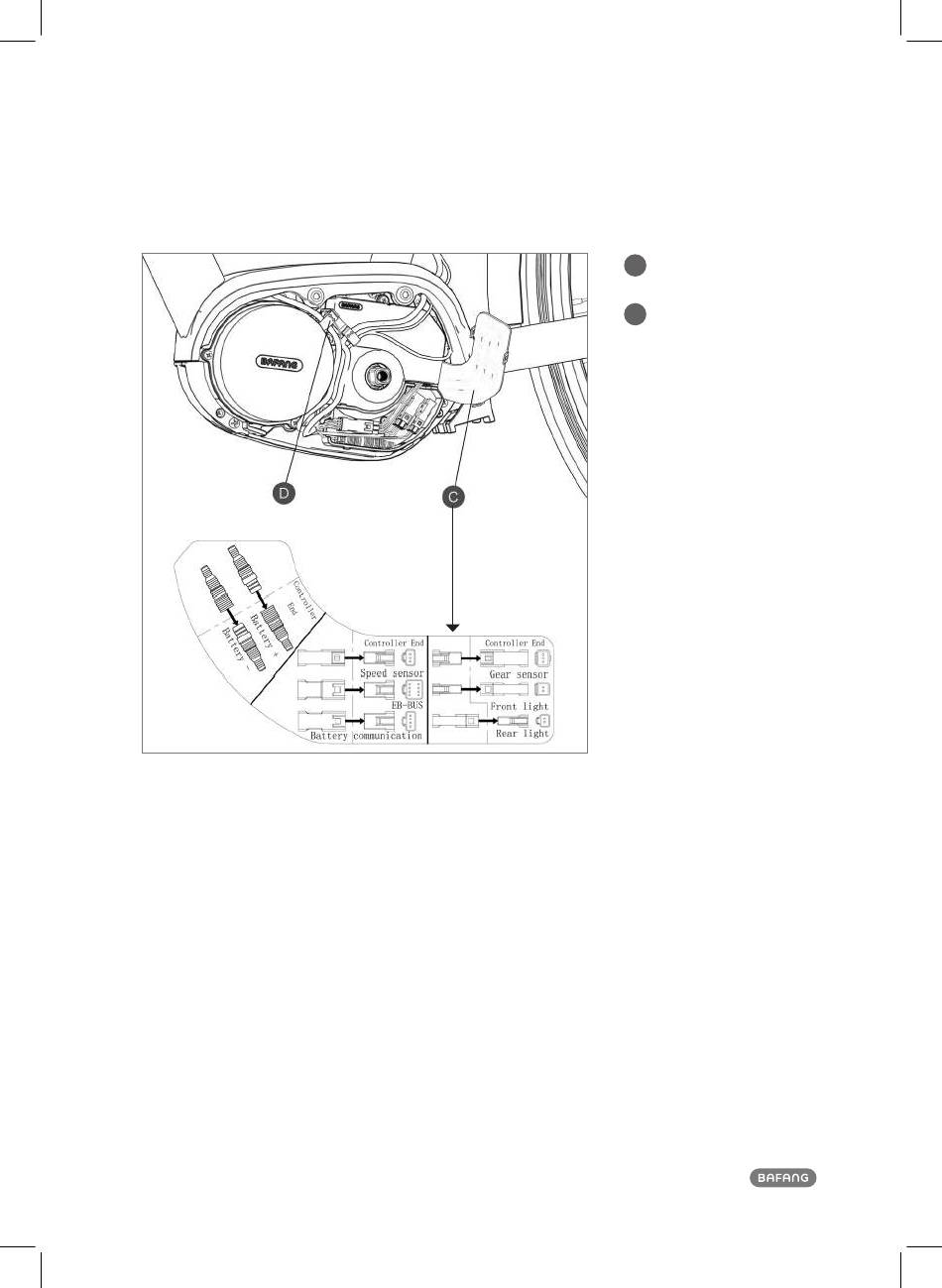

打开接线盒后，按照图示中C接线盒上盖的接线图，所有线缆与驱动单元连接且将所有线缆接头排
放于接线盒中。
所有线缆对接完成后需要将接线盒盖好，然后按照粗线在下层细线在上层的空间排布方式将线缆
分路从D线卡中穿过，以保证线缆排列整齐。详细接线请仔细阅读 3. 系统接线 。
19
  接线图 
C
2307070000001
  线卡
D
1401300000001
Max
驱动系统使用手册   
