BAFANG MAX Drive System Dealer's Manual page 210

Hide thumbs Also See for MAX Drive System:
Table of Contents

Advertisement

Available languages

Available languages

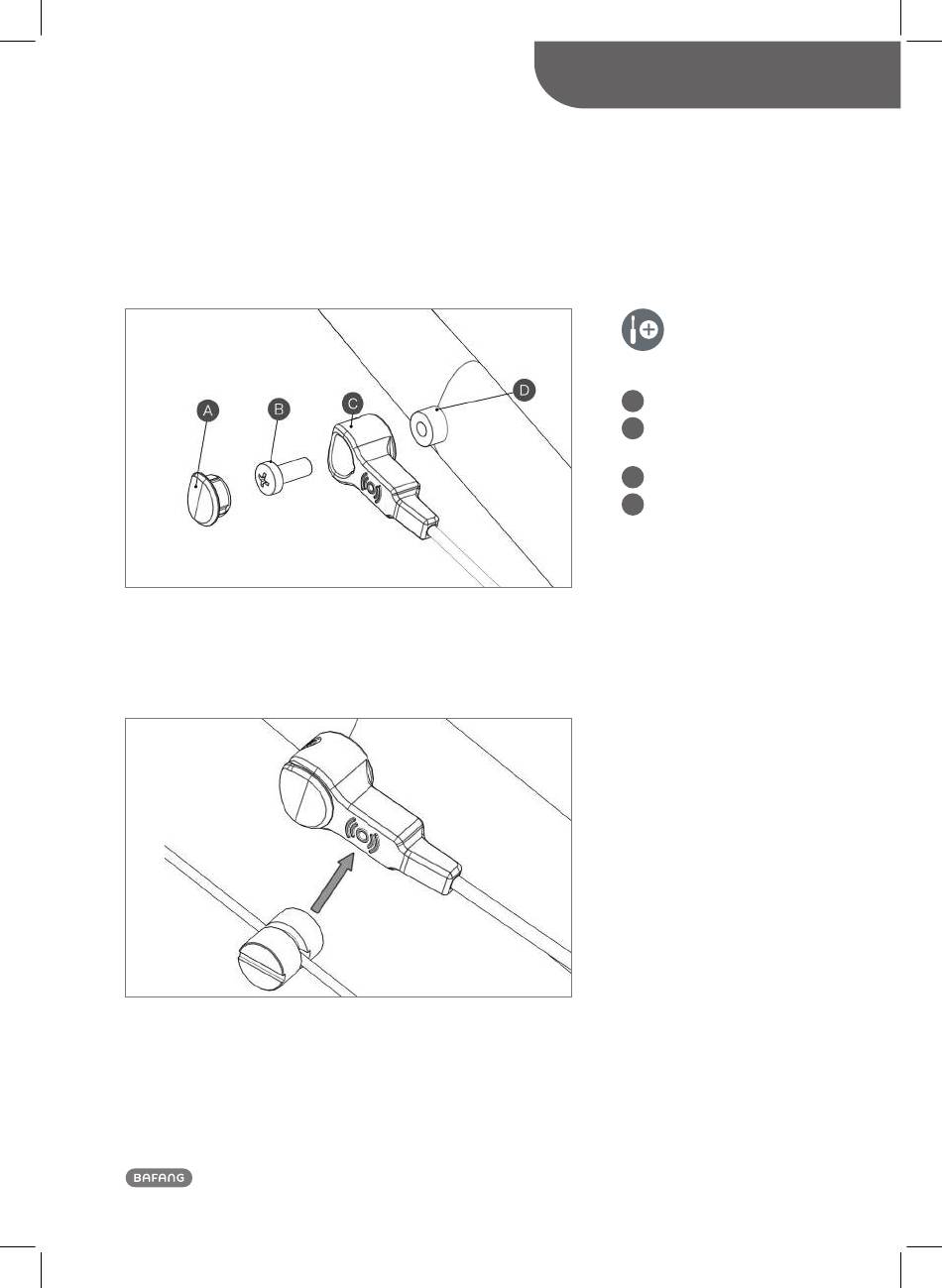

如果间隙在指定范围内, 用速度传感器固定螺栓固定速度传感器。如果间隙将超过 25  mm, 请在传
感器与后平叉凸台间使用垫片进行调整。锁紧力矩: 1.5-2  Nm
如图所示布置速度传感器和磁体。安装磁体, 使其中心对齐传感器感应区中心。
   Max
驱动系统使用手册
系统安装
  防尘盖
a
  传感器固定螺钉
B
M  5x12
  速度传感器
C
  固定螺母
D
14
