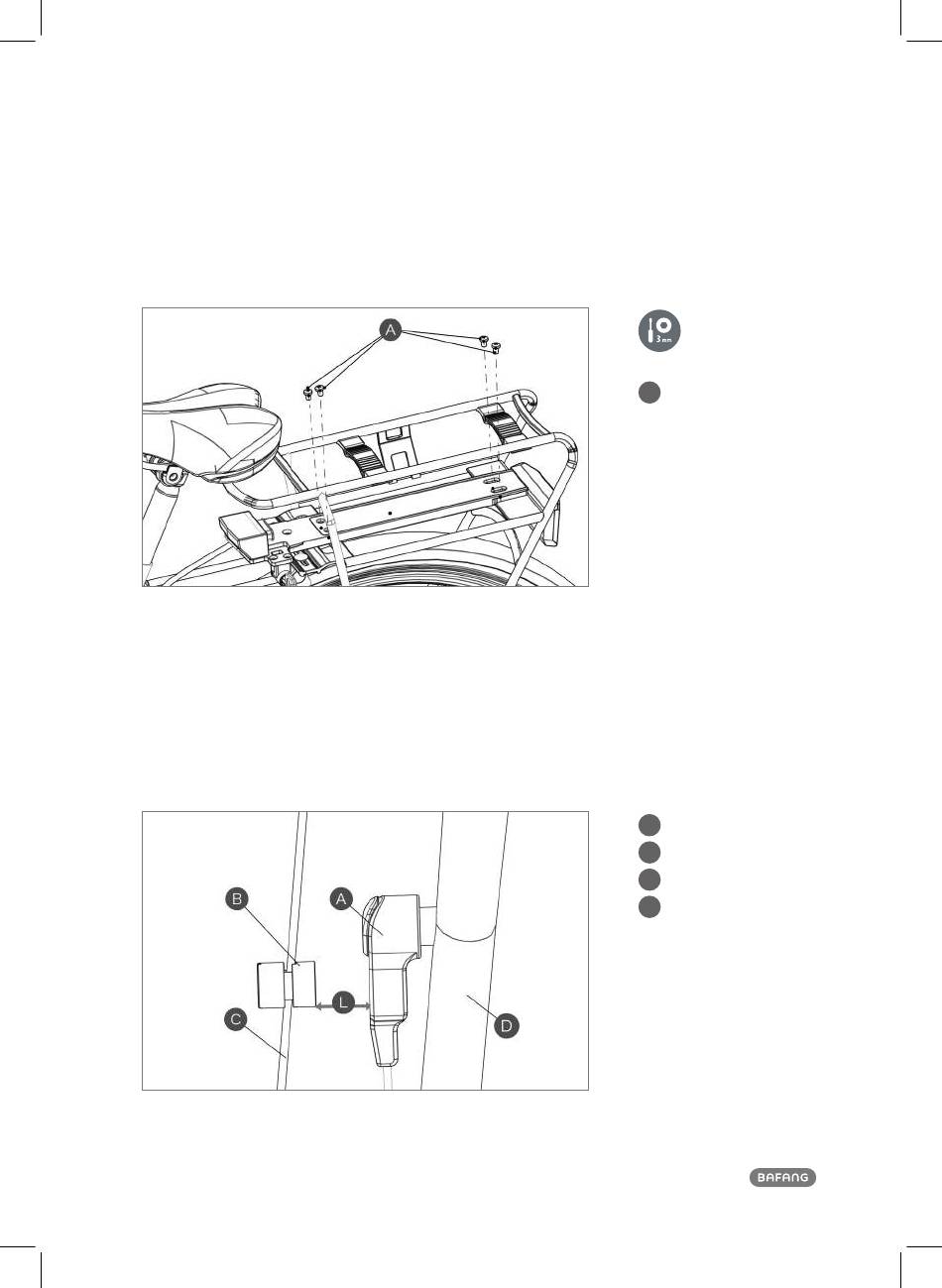

2.5
Battery rail installation
Align the mounting holes of the carrier with the mounting holes of the battery rail. Fasten the battery rail onto the
battery carrier with hex socket head screws (M5).
tightening torque: 2 nm
2.6
external Speed Sensor installation Sr SD02.01
Before installing the speed sensor, please make sure the gap between the speed sensor and the magnetic unit is
between 5 and 25 mm.
15
hex socket head cap
A
screw (M5)
external speed sensor
A
magnet unit
b
spoke
C
chain stay
D
DEALER MAnuAL Max Drive SySteM
