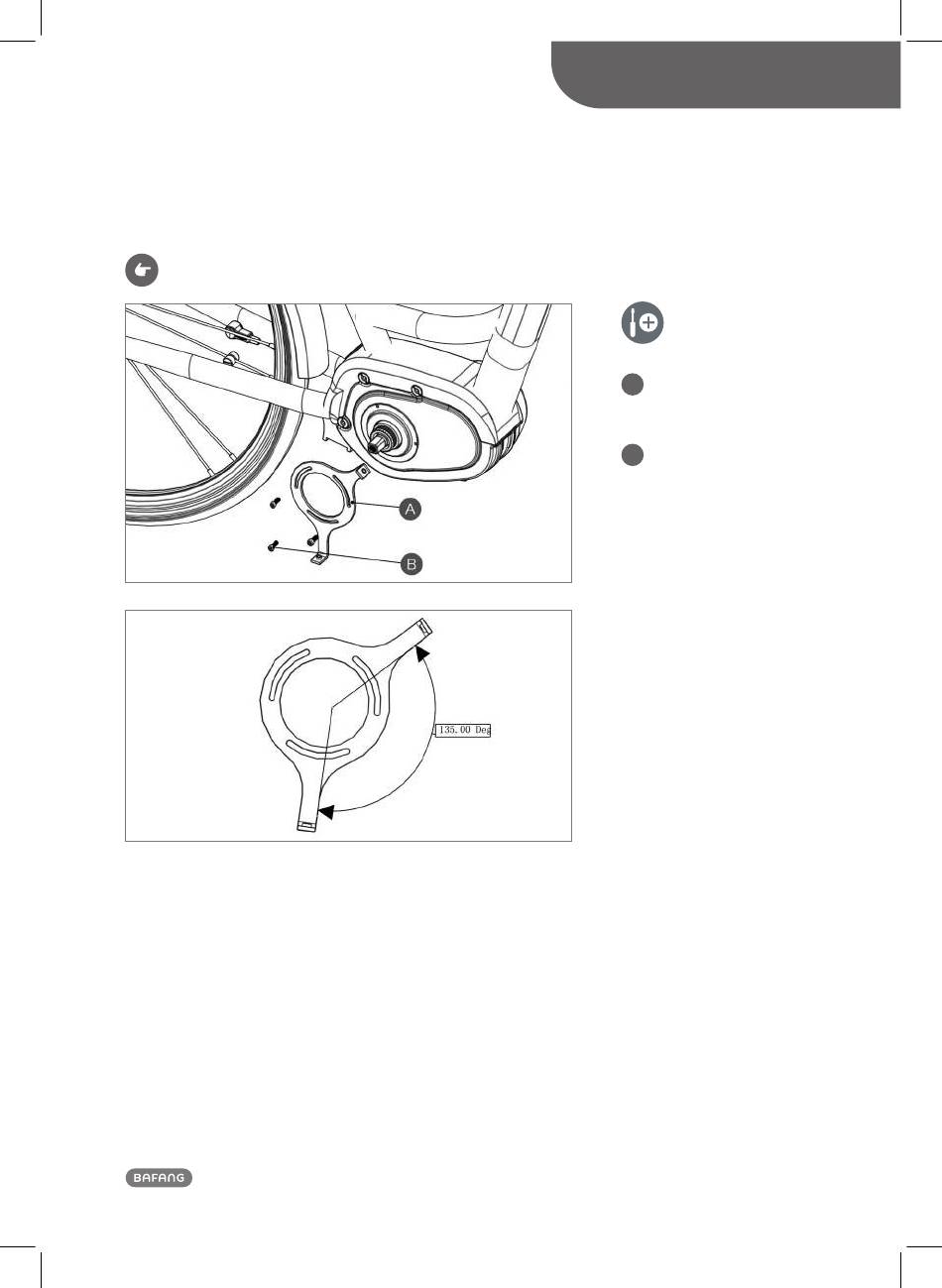

Installation of the p-shaped (semi) chain guard
Position the p-shaped chain guard bracket and fasten it onto the drive unit with screws.
tightening torque: 2 nm
DEALER MAnuAL Max Drive SySteM
CHAIn GuARD InStALLAtIon
p-shaped chain guard
A
bracket
1401220200003
screws M4
b
1401020000111
