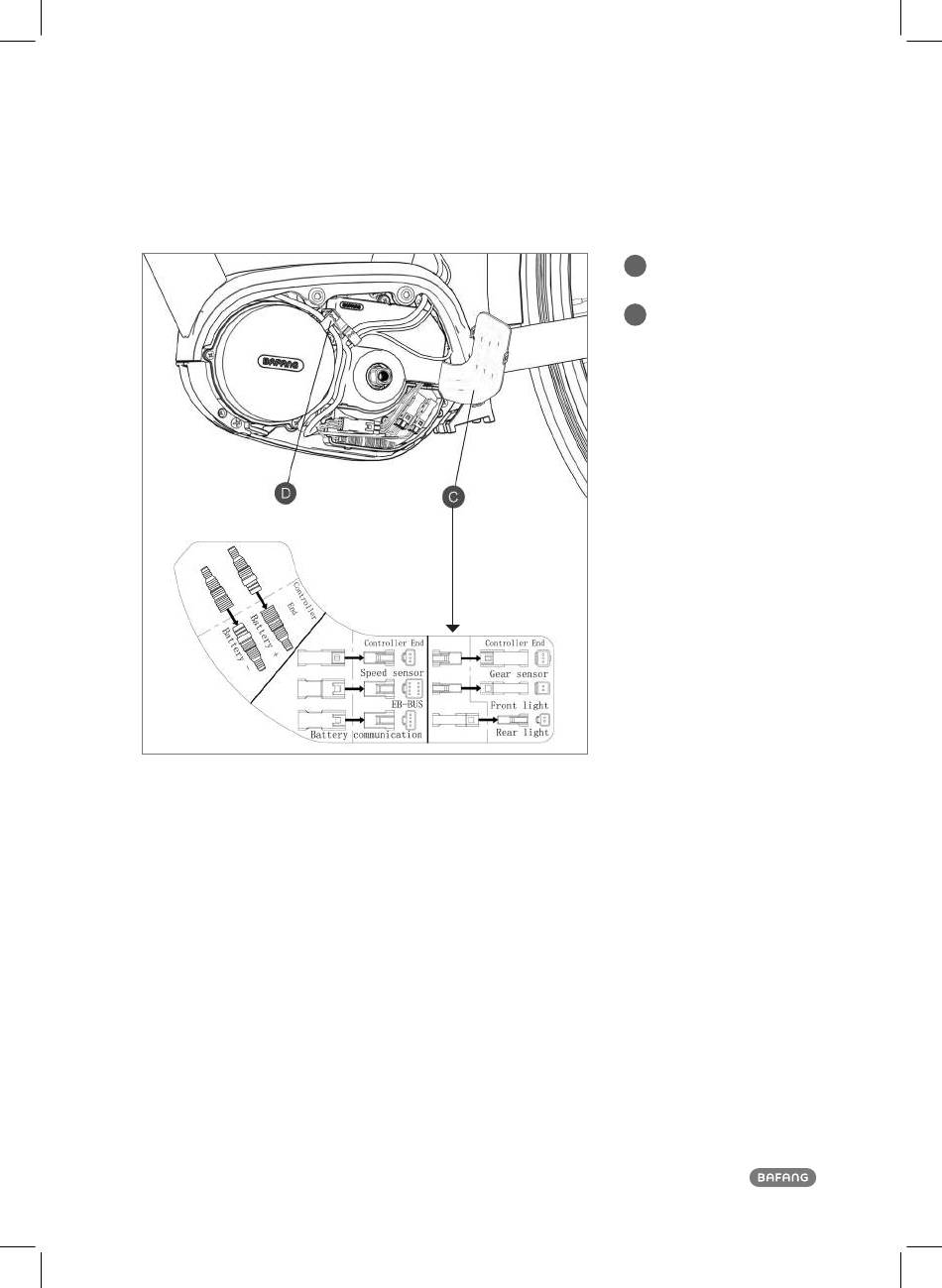

open the connector box, link all cables to the drive unit and fix all connectors in the connector box according to the
cabling diagram printed on the upper cover of the connector box (see C in the picture above).
After matching all male connectors with female connectors, cover the connector box with the upper cover and thread
the cables through cable clips (D in the picture above) following the principle of "thin cables on top and thick cables
below" to ensure that the cables are neatly arranged.
21
cabling layout
C
2307070000001
cable clips
D
1401300000001
