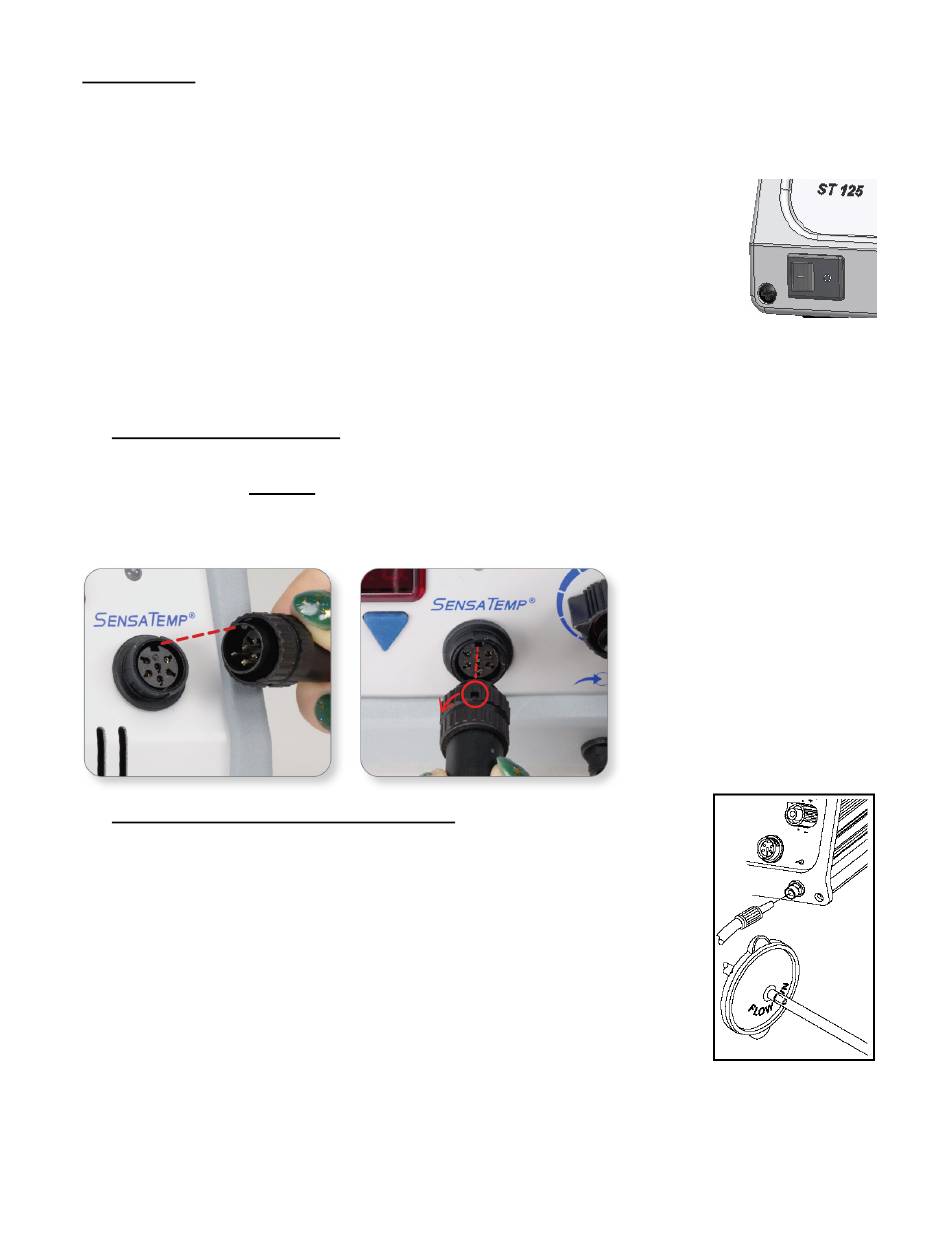

System Set-Up

Set up the ST125 system by doing the following.
1. Remove the unit from its shipping container. Store the shipping container(s) in a convenient location.
Reuse of these containers will prevent damage if you ship or store the system.
2. Place the unit on a convenient workbench.
3. Ensure the POWER Switch (located on power source front panel) is in the "OFF" or
"0" position.
4. Inspect all system components, check for shipping damage, and ensure that all
purchased components (standard and optional) are present.
5. Assemble Tip & Tool Stands. Attach to the power source if desired using included hardware. Assembly
instructions are enclosed with each Tip & Tool Stand.

Handpiece Power Connection

The ST125 is designed to work with the SensaTemp SX-100 Solder Extractor, but any of PACE's SensaTemp
hand tools can be used. Caution: Using handpieces from other product lines (e.g., IntelliHeat, AccuDrive,
HeatWise) may result in damage to your new equipment.
Connect the handpiece connector to the Power Receptacle in the following manner.

Handpiece Vacuum/Air Pressure Connection

To set up your Sodr-X-Tractor air hose connection, perform the following steps:
1. Air Hose To Handpiece Connection:
a) Attach one end of the 137cm (54 in) length of air hose (P/N 1342-0015-08-
P1) to the metal tube in the back of the handpiece.
b) If you have a PACE system incorporating only one handpiece, attach the
air hose to the power cable using the supplied Hose Clamps (P/N 1321-
0085-01-P6). Space them evenly along the length of the power cable
starting at a point 6 inches from the ends of the handpiece.
c) If you have a PACE system incorporating 2 or more air handpieces, you may wish to leave the air
hose assembly unattached to allow a quick change to any air handpiece being used.
2. Prepare a VisiFilter in the following manner:
©2022 PACE Inc., Vass, North Carolina, All Rights Reserved
https://paceworldwide.com/
1. Align guide on connector
with slot on power
receptacle.
2. Insert connector into
power receptacle.
3. Turn the connector
housing clockwise to lock
in place.
Page 3
