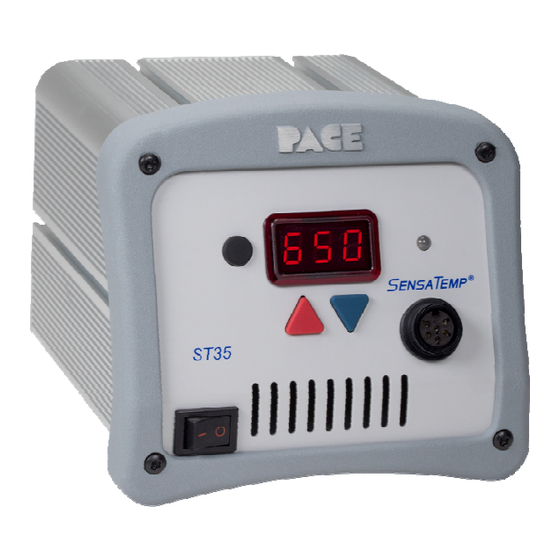

- Page 1 Operation and Maintenance Manual for ST35 Soldering System Manual 5050-0606 Rev. Date 6/14/2022 This manual applies to: Firmware Model Required Power Part Number Revision ST35 w/PS-90 Iron 120 VAC 8007-0599 ST35 w/PS-90 Iron 230 VAC 8007-0600...
-
Page 2: Table Of Contents
Temperature Limits ............................. 6 Automatic Setback Timer ............................ 7 AutoOff ................................7 Exiting Set-Up Mode ............................7 Corrective Maintenance ............................8 Display Message Codes ............................8 Power Source ..............................8 Spare Parts ................................8 Service ................................8 PACE LIMITED WARRANTY STATEMENT ......................9... -
Page 3: General Information
Tip-To-Ground Resistance: Less than 2 ohms. AC Leakage: Less than 2 Millivolts RMS from 50 Hz to 100 MHz. Transient Level: Less than 500 mV peak, out to 100 MHz. ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 1 https://paceworldwide.com/... -
Page 4: Power Supply Features
Tips and Heaters are hot when the handpiece is powered on and will remain so for a period of time after power off. DO NOT touch the heater or the tip. Severe burns may result. PACE Tip & Tool Stands are designed specifically for use with the associated handpiece and houses it in a manner that protects the user from accidental burns. -
Page 5: System Set-Up
1. Insert the female end of the power cord into the AC Power Receptacle on the rear panel of the power source. 2. Plug the prong end (male end) of the power cord into an appropriate, grounded AC supply receptacle. Setup and Operation ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 3 https://paceworldwide.com/... -
Page 6: Operation
6. "OFF" with blinking display when the unit has entered AutoOff mode. Refer to page 7 for more information. Error messages "OSE" or “OCE” will appear if a system fault is detected. Refer to the "Corrective Maintenance" portion of this manual. Digital Control Indicator LED ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 4 https://paceworldwide.com/... -
Page 7: Temperature Adjustment Display Mode
260 °C (500 °F) SetBack Timer Enabled, 30 minutes Auto Off Enabled, 60 minutes Set Temperature 371 °C (700 °F) Tip Offset 0 °C (0 °F) Customizing Your System ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 5 https://paceworldwide.com/... -
Page 8: Entering Set-Up Mode
Press and release the Program Key ( ) to proceed to the next step. • 6. The display now shows the stored default Low ("Lo") Temperature Limit with the display alternating to ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 6 https://paceworldwide.com/... -
Page 9: Automatic Setback Timer
Adjust the Auto Off value using the keypad. ( • Press and release the Program Key ( ) to proceed to the next step. • Exiting Set-Up Mode ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 7 https://paceworldwide.com/... -
Page 10: Corrective Maintenance
Fuse 1 Amp, Time Lag (for 115V) 1159-0246-P5 Fuse 0.50 Amp, Time Lag (for 230V) 1159-0213-P5 Optional under shelf mounting bracket 1321-0609-P1 Service Please contact PACE or your local distributor for service and repair. ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 8 https://paceworldwide.com/... -
Page 11: Pace Limited Warranty Statement
(6) months. Monitors, computers and other brand equipment supplied but not manufactured by PACE are covered under their respective manufacturer’s warranty in lieu of this Warranty.
