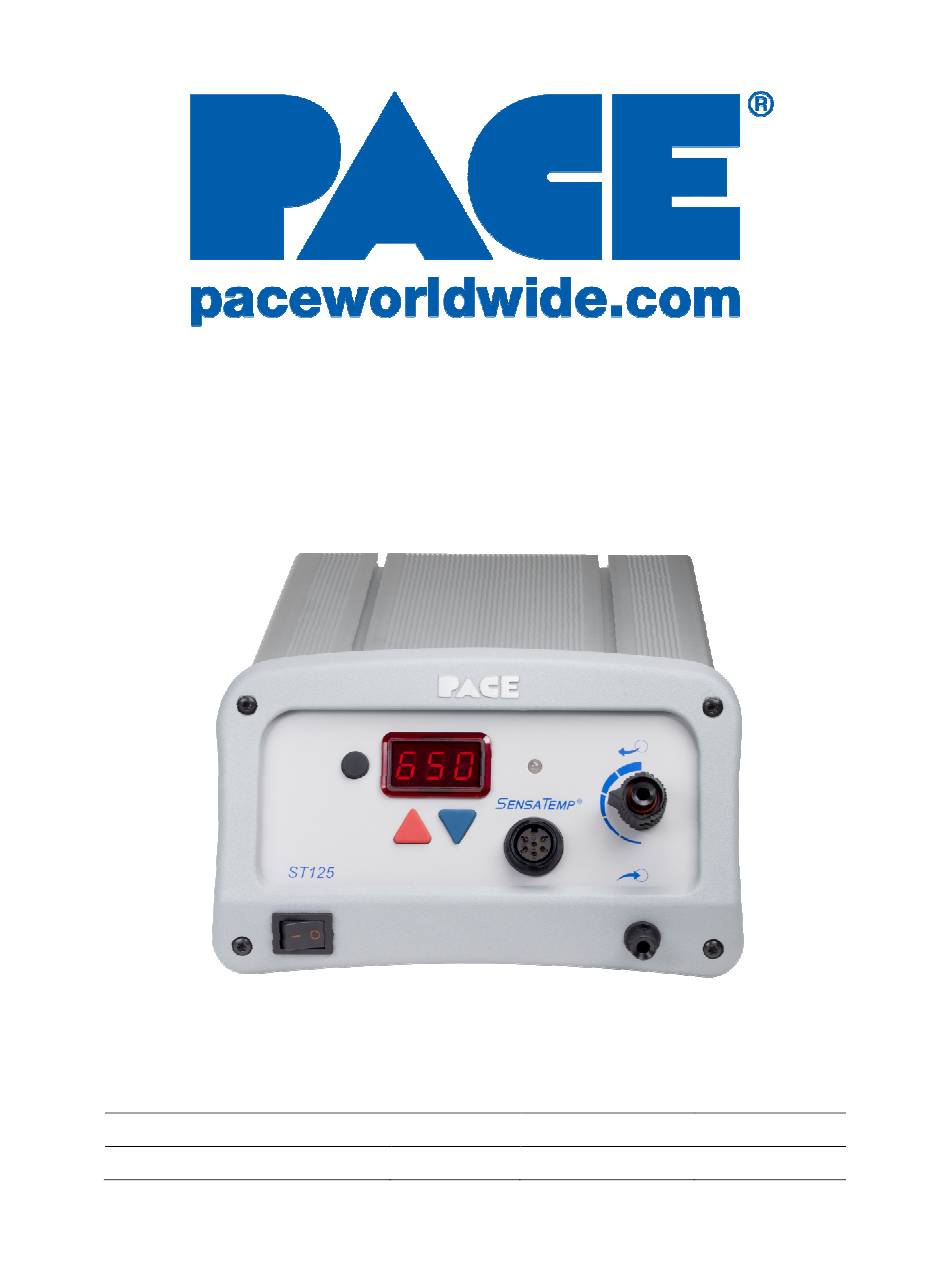

- Page 1 Operation and Maintenance Manual for ST125 Soldering/Desoldering System Manual 5050-0607 Rev. Date 6/14/22 This manual applies to: Firmware Model Required Power Part Number Revision ST125 w/SX-100 and Stand 120 VAC 8007-0607 ST125 w/SX-100 and Stand 230 VAC 8007-0608...
-
Page 2: Table Of Contents
Temperature Limits ............................. 7 Automatic Setback Timer ............................ 8 AutoOff ................................8 Exiting Set-Up Mode ............................9 Corrective Maintenance ............................9 Display Message Codes ............................9 Power Source ..............................9 Spare Parts ................................9 Service ................................9 PACE LIMITED WARRANTY STATEMENT ...................... 10... -
Page 3: General Information
Please read this manual thoroughly before using the system. The ST125 system is offered in either 120 VAC or 230 VAC versions. Each of these incorporate SensaTemp® technology. The 230 VAC version systems bear the CE Conformity Marking, which assures the user that it conforms to EMC 89/336/EEC. -
Page 4: Power Supply Features
Tips and Heaters are hot when the handpiece is powered on and will remain so for a period of time after power off. DO NOT touch the heater or the tip. Severe burns may result. PACE Tip & Tool Stands are designed specifically for use with the associated handpiece and houses it in a manner that protects the user from accidental burns. -
Page 5: System Set-Up
6 inches from the ends of the handpiece. c) If you have a PACE system incorporating 2 or more air handpieces, you may wish to leave the air hose assembly unattached to allow a quick change to any air handpiece being used. -
Page 6: System Power
Insert the end of the quick connect hose mount fitting (from the VisiFilter FLOW OUT) into the power source Vacuum Port. 3. When using air pressure, and/or utilizing multiple air handpieces, PACE suggests the following alternative set-up which utilizes some additional quick connect fittings. -
Page 7: Basic Operation
Set Temperature or may be cooling down to the SetBack Temperature. LED Off - Unit is not turned on or is in Auto ShutOff. ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 5 https://paceworldwide.com/... -
Page 8: Temperature Adjustment Display Mode
The PACE ST125 contains a vacuum pump that also provides air pressure. To activate, depress the activation button on the connected handpiece. The ST125 has an optional foot pedal connector on the back, which can be used to activate the pump instead of the switch on the handpiece. -
Page 9: Customizing Your System
Adjust the stored High Temperature Limit using the keypad. ( ) Cannot • be adjusted below the Low Temperature Limit. Press and release the Program Key ( ) to proceed to the next step. • ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 7 https://paceworldwide.com/... -
Page 10: Automatic Setback Timer
Press and release the Program Key ( ) to proceed to the next step. • The full allowable temperature range of the ST125 is between 38°C (100°F) and 482°C (900°F). The Low Temperature Limit cannot be adjusted higher than the High Temperature Limit. These limits control how high or low the Set Temperature can be adjusted to during normal operation. -
Page 11: Exiting Set-Up Mode
Fuse 0.50 Amp, Time Lag (for 230V) 1159-0213-P5 Optional under shelf mounting bracket 1321-0609-P1 Pressure Knob assembly 1222-0081-P1 Service Please contact PACE or your local distributor for service and repair. ©2022 PACE Inc., Vass, North Carolina, All Rights Reserved Page 9 https://paceworldwide.com/... -
Page 12: Pace Limited Warranty Statement
(6) months. Monitors, computers and other brand equipment supplied but not manufactured by PACE are covered under their respective manufacturer’s warranty in lieu of this Warranty.
