Chassis Rear

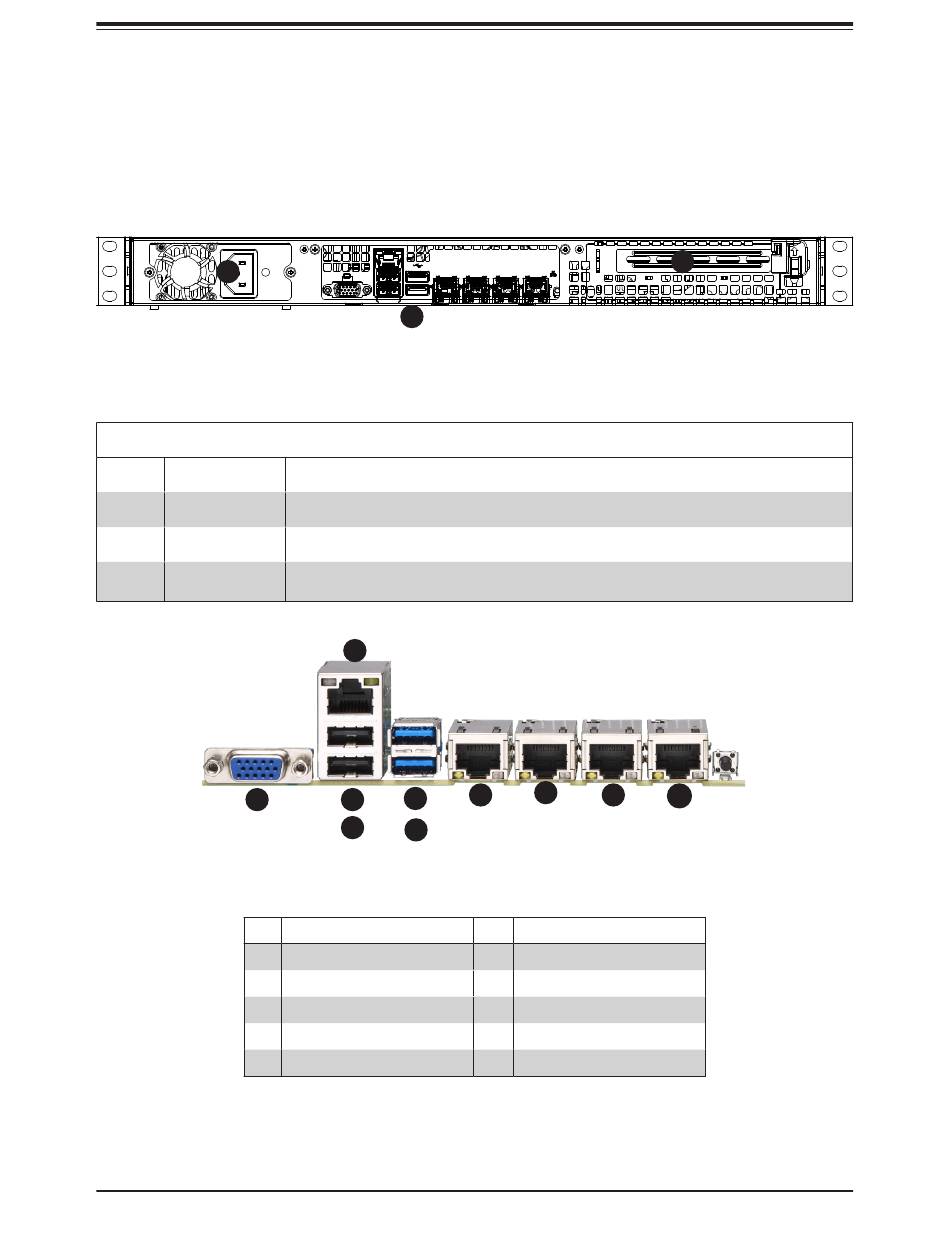

The illustration below shows the features included on the rear of the chassis. Power supply
modules display status lights.
1
Item Features
1 Power Supply
2 I/O Backpanel
Expansion Card
3
Slot
1
#
1
2
3
4
5
2
Figure 1-3. Rear View
Chassis Rear Features
Description
350W Platinum Level Power Supply (p/n PWS-350-1H)
Rear I/O ports (see below and Section 4.3)
Slot for one expansion card (requires pre-installed riser card)
2
5
3
4
6
Figure 1-4. Rear Input/Output Ports
Description
VGA Port
Dedicated IPMI LAN
USB1
USB0
USB5 (USB 3.1 Gen 1)
12
8
7 9
# Description
6 USB4 (USB 3.1 Gen 1)
7 LAN1
8 LAN2
9 LAN3
10 LAN4
