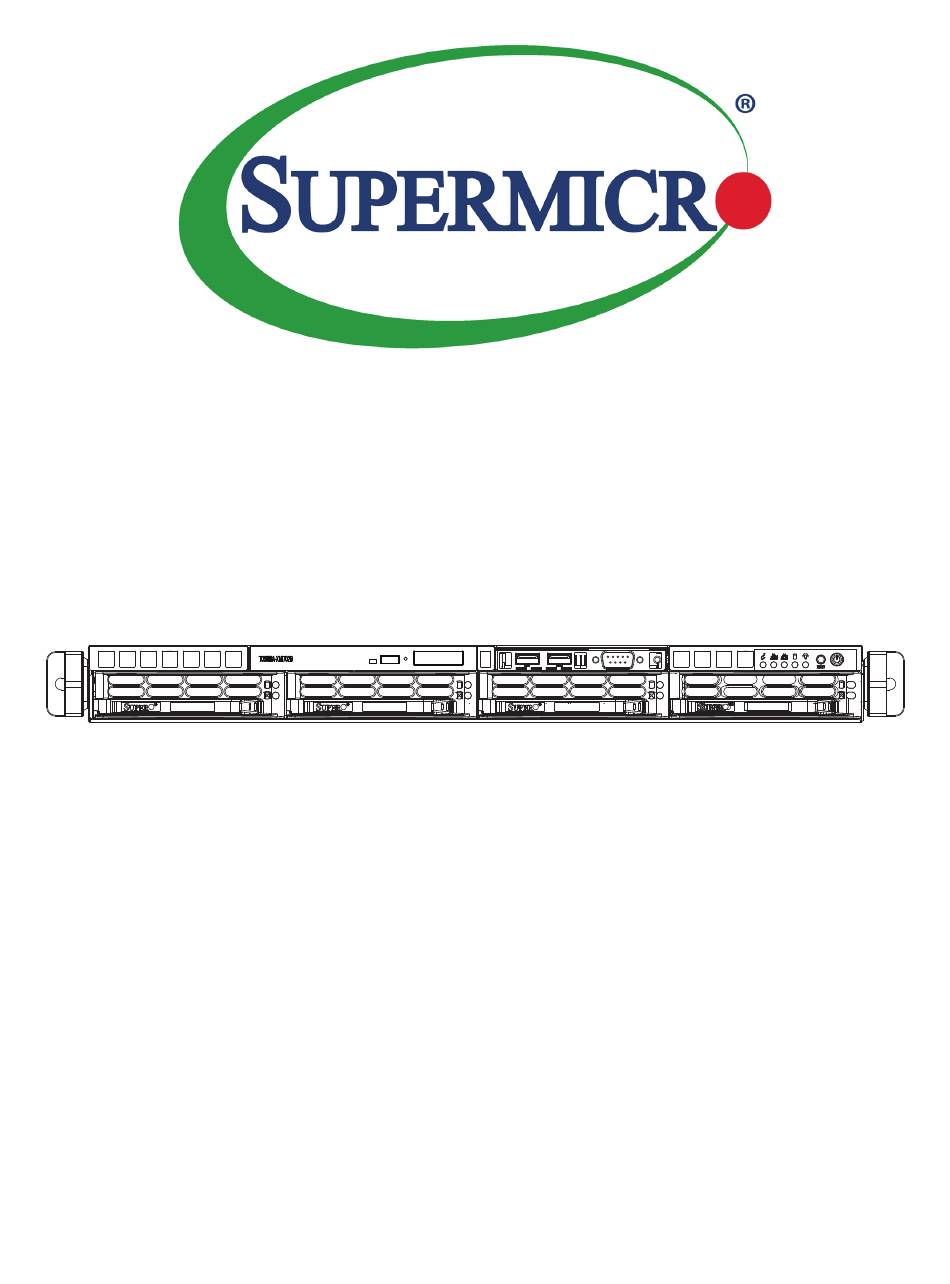

  • Page 1 SuperServer ® 5019C-MHN2 USER'S MANUAL Revision 1.0a...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5019C-MHN2. Installation and maintenance should be performed by experienced technicians only. Please refer to the 5019C-MHN2 server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

  • Page 4: Table Of Contents

    SuperServer 5019C-MHN2 User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................11 Control Panel ........................11 Front Features ........................12 Rear Features ........................13 1.5 Motherboard Layout ......................14 Quick Reference Table ......................15 Chapter 2 Server Installation 2.1 Overview ..........................18...
  • Page 5 Preface Processor and Heatsink Installation ..................25 Overview of the Processor Socket Assembly ..............26 Overview of the Processor Heatsink Module (PHM) ............27 Preparing the CPU Socket for Installation ................28 Removing the Dust Cover from the CPU Socket .............28 Installing the Processor Heatsink Module (PHM) ............29 Removing the Processor Heatsink Module (PHM) from the Motherboard .......30 Memory Support and Installation ..................31 Memory Support ......................31...
  • Page 6 SuperServer 5019C-MHN2 User's Manual Chapter 5 Software 5.1 Microsoft Windows OS Installation ..................56 5.2 Driver Installation ........................58 5.3 SuperDoctor 5 ........................59 ® 5.4 IPMI ............................60 Chapter 6 BIOS 6.1 Introduction .........................61 Starting the Setup Utility ....................61 6.2 Main Setup .........................62 6.3 Advanced ..........................64...
  • Page 7 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 8: Overview

    4-cm Counter-rotating Fans FAN-0154L4 1.2 Unpacking the System Inspect the box the SuperServer 5019C-MHN2 was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the 5019C-MHN2. Please refer to Appendix C for additional specifications. System Features Motherboard X11SCZ-F Chassis SC813MFTQC-350CB2 Supports Intel® Xeon® E-2100, 8th/9th Gen. Intel® Core™ i9/i7/i5 processors, Intel® Celeron®, Intel® Pentium® processors Socket Type Socket LGA1151...
  • Page 10 SuperServer 5019C-MHN2 User's Manual System Features Power One 350W power supply ( PWS-350-1H) Cooling Five 40 x 40 x 28 mm PWM fans plus one additional fan housing space Form Factor 1U rackmount Dimensions (WxHxD) 17.2 x 1.7 x 19.85 in. (437 x 43 x 504 mm)

  • Page 11: Server Chassis Features

    Chapter 1: Introduction 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features Item Feature Description Information LED...

  • Page 12: Front Features

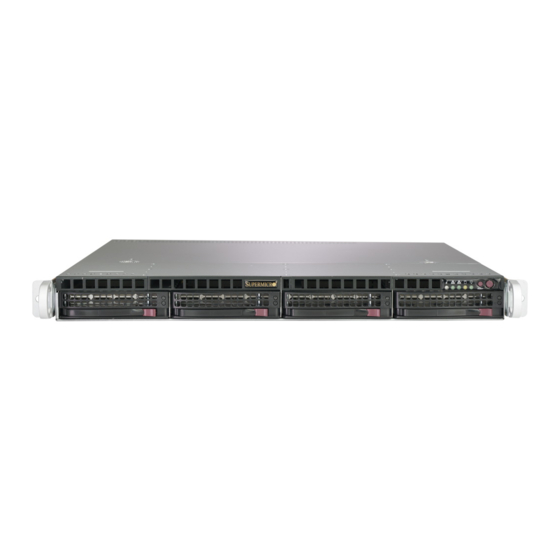

    SuperServer 5019C-MHN2 User's Manual Front Features The SC813MFTQC-350CB2 is a mini 1U chassis. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description SATA HDD Hot-swap 3.5"...

  • Page 13: Rear Features

    Chapter 1: Introduction Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description Power Supply Single 350W Platinum Level power supply I/O Backpanel Rear I/O ports (see Section 4.4 for full details) Expansion Card Slot Slot for one expansion card (requires pre-installed riser card) Rack Ear Brackets...

  • Page 14: Motherboard Layout

    SuperServer 5019C-MHN2 User's Manual 1.5 Motherboard Layout Below is a layout of the X11SCZ-F with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4.

  • Page 15: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JPAC1 Audio Enable/Disable Pins 1-2 (Enable) JPG1 BMC Video Enable/Disable Pins 1-2 (Enable) JPL1/JPL2 LAN1/LAN2 Enable/Disable Pins 1-2 (Enable) JPME2 Manufacturing Mode Pins 1-2 (Normal) JPT1 Onboard TPM2.0 Enable/Disable Pins 1-2 (Enable)
  • Page 16 SuperServer 5019C-MHN2 User's Manual Connector Description JSD1 SATA Disk On Module (DOM) Power Connector JSMB1 PCH SMBus Header JTPM1 Trusted Platform Module (TPM) Header LAN1/2 Gigabit Ethernet RJ45 Ports SLOT4, SLOT7 PCH PCI-E 3.0 x4 Slots (in x8) SLOT6 CPU PCI-E 3.0 x16 Slot...
  • Page 17 Chapter 1: Introduction IMVP8-VGT PCIe3.0 x16/x8x8 PCIe x16 Slot 6 8.0GT/s SVID INTEL LGA1151 IMVP8-Vcore TDMS DDI 1 ASM1442K (Socket-H4) DVI-I PTN3355 DDR4 (CHA) DIMMA1 DIMMA2 2666MHz Digital port 3 DDI 3 Display Port++ DDR4 (CHB) DIMMB1 Digital port 2 DDI 2 Display Port++ 2666MHz...

  • Page 18: Chapter 2 Server Installation

    SuperServer 5019C-MHN2 User's Manual Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 3 for details on installing those specific components.

  • Page 19: Server Precautions

    Chapter 2: Server Installation • Always make sure the rack is stable before extending a server or other component from the rack. • You should extend only one server or component at a time - extending two or more simul- taneously may cause the rack to become unstable.

  • Page 20: Circuit Overloading

    SuperServer 5019C-MHN2 User's Manual Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 21: Installing The Rails

    Chapter 2: Server Installation 2.3 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided.

  • Page 22: Installing The Server Into A Rack

    SuperServer 5019C-MHN2 User's Manual 2.4 Installing the Server into a Rack You should now have rails attached to both the chassis and the rack. The next step is to install the server into the rack. 1. Line up the rear of the chassis rails with the front of the rack rails.

  • Page 23: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the SuperServer 5019C-MHN2 into a Telco (or “open”) type rack, use two L-shaped brackets on either side of the chassis (four total). 1. First, determine how far the server will extend out from the front of the rack. The chassis should be positioned so that the weight is balanced between front and back.

  • Page 24: Chapter 3 Maintenance And Component Installation

    SuperServer 5019C-MHN2 User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 25: Motherboard Components

    CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. • Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.

  • Page 26: Overview Of The Processor Socket Assembly

    SuperServer 5019C-MHN2 User's Manual Overview of the Processor Socket Assembly The processor socket assembly contains 1) the Intel processor, 2) the processor clip, 3) the dust cover, and 4) the CPU socket. Note: Be sure to cover the CPU socket with the dust cover when the CPU is not installed.

  • Page 27: Overview Of The Processor Heatsink Module (Phm)

    Chapter 3: Maintenance and Component Installation Overview of the Processor Heatsink Module (PHM) The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a processor clip, and 3) the processor. 3. Processor 2. Processor Clip 1. Heatsink (Bottom View)

  • Page 28: Preparing The Cpu Socket For Installation

    Remove the dust cover from the CPU socket. Do not touch the socket pins! Socket Pins Figure 3-2. Removing the Dust Cover from the CPU Socket Note: Visit the product page on the Supermicro website for possible updates to memory support (www.supermicro.com).

  • Page 29: Installing The Processor Heatsink Module (Phm)

    Chapter 3: Maintenance and Component Installation Installing the Processor Heatsink Module (PHM) 1. Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 26, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below.

  • Page 30: Removing The Processor Heatsink Module (Phm) From The Motherboard

    SuperServer 5019C-MHN2 User's Manual Removing the Processor Heatsink Module (PHM) from the Motherboard Before removing the processor heatsink module (PHM), unplug power cord from the power outlet. 1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with the screw marked #4 (in the sequence of 4, 3, 2, 1).

  • Page 31: Memory Support And Installation

    Chapter 3: Maintenance and Component Installation Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X11SCZ-F supports up to 64GB of DDR4 ECC/Non-ECC UDIMM with speeds of up to 2666 MHz in four memory slots.

  • Page 32: Dimm Module Population Sequence

    SuperServer 5019C-MHN2 User's Manual DIMM Module Population Sequence When installing memory modules, the DIMM slots must be populated in the following order: DIMMA2, DIMMB2, DIMMA1, and DIMMB1. • Always use DDR4 memory of the same type, size and speed. •...

  • Page 33: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots in the order described above. For best performance, please use the memory modules of the same type and speed. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. 3.

  • Page 34: Pci Expansion Card Installation

    SuperServer 5019C-MHN2 User's Manual PCI Expansion Card Installation The system includes one pre-installed riser card: RSC-RR1U-E16, for a standard size PCI-E x16 card. Riser cards position the expansion cards at a 90 degree angle, allowing them to fit inside the 1U chassis.

  • Page 35: Chassis Components

    Chapter 3: Maintenance and Component Installation 3.4 Chassis Components Front Bezel If your system has an optional bezel attached to the front of the chassis, you will need to remove it to gain access to the drive bays. 1. Unlock the front of the chassis and then press the release knob. 2.

  • Page 36: Hard Drive Carrier Indicators

    State/Condition Indication Green Blinking Drive activity Blinking Drive rebuilding Solid on Drive failure Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www. supermicro.com/products/nfo/files/storage/SBB-HDDCompList.pdf...

  • Page 37: Dvd-Rom Drive Installation

    Chapter 3: Maintenance and Component Installation DVD-ROM Drive Installation The 5019C-MHN2 can accommodate a slim DVD drive (optional). Side mounting brackets are needed to install the DVD drive in the chassis. Accessing a DVD-ROM Drive Begin by removing power from the system as described in Section 3.1. 1.
  • Page 38 SuperServer 5019C-MHN2 User's Manual Figure 3-8. Replacing a System Fan Note: The figure above is intended to show fan location only. The serverboard may differ from that in the 5019C-MHN2.

  • Page 39: Power Supply

    Chapter 3: Maintenance and Component Installation Power Supply The SuperServer 5019C-MHN2 has a single 350W high-efficiency power supply. The power supply module has an auto-switching capability, which enables them to automatically sense and operate with a 100V-240V input voltage. Power Supply Failure If the power supply fails, the system will shut down and you will need to replace the unit.

  • Page 40: Chapter 4 Motherboard Connections

    SuperServer 5019C-MHN2 User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 41: Headers And Connectors

    Chapter 4: Motherboard Connections 4-pin 12V Power for GPU JPWR1 is a 4-pin 12V power connector for a GPU card that requires an extra 12V of power, up to 75W. 4.2 Headers and Connectors Fan Headers There are six 4-pin fan headers on the motherboard. Although these are 4-pin fan headers, pins 1-3 are backward compatible with traditional 3-pin fans.
  • Page 42 The X11SCZ-F has five I-SATA 3.0 ports (I-SATA0 - I-SATA4). I-SATA0 can be used with Supermicro SuperDOMs that are yellow SATA DOM connectors with power pins built in, and do not require external power cables. Supermicro SuperDOMs are backward compatible with regular SATA HDDs or SATA DOMs that need external power cables.
  • Page 43 Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www. supermicro.com/support/manuals/. UID LED Pin Definitions Color...
  • Page 44 SuperServer 5019C-MHN2 User's Manual Front Accessible Audio Header A 10-pin audio header located at AUDIO FP allows you to use the onboard sound for audio playback. Connect an audio cable to this header to use this feature. Refer to the table below for pin definitions.
  • Page 45 Chapter 4: Motherboard Connections COM Port The motherboard has two COM headers (COM1/2, COM3/4) that provide four serial connections and support RS-232 function, utilizing Supermicro PN: CBL-CUSB-0984 (not included). COM Header (COM1/2, COM3/4) Pin Definitions Pin# Definition Pin# Definition DCD4...

  • Page 46: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 47 Chapter 4: Motherboard Connections Overheat (OH)/Fan Fail Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings for chassis overheat/fan failure. This connection will also serve as an IPMI UID indicator as a blue LED.
  • Page 48 SuperServer 5019C-MHN2 User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions. Power LED Pin Definitions (JF1) Pins Definition +3.3V Stby PWR LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1.

  • Page 49: Ports

    Chapter 4: Motherboard Connections 4.4 Ports Rear I/O Ports See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 4-2. Rear Input/Output Ports Rear I/O Ports Description Description Description IPMI LAN LAN2 DisplayPort 1...
  • Page 50 SuperServer 5019C-MHN2 User's Manual LAN Ports There are two 1GbE LAN ports (LAN1/LAN2) on the I/O back panel. The X11SCZ-F also has a dedicated IPMI LAN port on the I/O back panel. These ports accept RJ45 type cables. Refer to the table below for the pin definitions.
  • Page 51 Chapter 4: Motherboard Connections Universal Serial Bus (USB) Header There are three USB 2.0 headers (USB1/2, USB3/4, USB5/6), one USB 3.1 Gen 1 header (USB7/8), one USB 3.1 Gen 2 header (USB13/14), and one USB 2.0 Type-A header (USB0) on the motherboard to provide front access connection with a cable (not included). There are also four USB 3.1 Gen 2 ports on the I/O back panel.

  • Page 52: Jumpers

    SuperServer 5019C-MHN2 User's Manual 4.5 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 53 Chapter 4: Motherboard Connections ME Manufacturing Mode Close JPME2 to bypass SPI flash security and force the system to use the Manufacturing Mode, which will allow the user to flash the system firmware from a host server to modify system settings. Refer to the table below for jumper settings. Manufacturing Mode Jumper Settings Jumper Setting...
  • Page 54 SuperServer 5019C-MHN2 User's Manual Onboard Audio Enable/Disable JPAC1 allows you to enable or disable the onboard audio support. The default position is on pins 1-2 to enable onboard audio connections. Refer to the table below for jumper settings. Audio Enable/Disable...

  • Page 55: Led Indicators

    Chapter 4: Motherboard Connections 4.6 LED Indicators BMC Heartbeat LED BMC_HB_LED1 is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning normally. BMC LED Indicator LED Color Definition Blinking Green BMC Normal Power LED LED1 is an Onboard Power LED. When this LED is lit, it means power is present on the motherboard.

  • Page 56: Chapter 5 Software

    USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 57 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 58: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD.

  • Page 59: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 60: Ipmi

    SuperServer 5019C-MHN2 User's Manual 5.4 IPMI The X11SCZ-F supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at:...

  • Page 61: Chapter 6 Bios

    Chapter 6: BIOS Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the X11SCZ-F/-Q motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 62: Main Setup

    SuperServer 5019C-MHN2 User's Manual 6.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.
  • Page 63 Chapter 6: BIOS Memory Information Total Memory This feature displays the total size of memory available in the system.

  • Page 64: Advanced

    SuperServer 5019C-MHN2 User's Manual 6.3 Advanced Use this menu to configure advanced settings. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.
  • Page 65 Chapter 6: BIOS Option ROM Messages Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current. Wait For "F1"...
  • Page 66 SuperServer 5019C-MHN2 User's Manual CPU Configuration  The following CPU information will display: • Processor type • CPU Signature • Microcode Patch • Max CPU Speed • Min CPU Speed • CPU Speed • Processor Cores • Hyper Threading Technology •...
  • Page 67 Chapter 6: BIOS C6DRAM Select Enabled to activate moving the DRAM contents to PRM memory when the CPU is in the C6 state. The options are Disabled and Enabled. Hardware Prefetcher If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance.
  • Page 68 SuperServer 5019C-MHN2 User's Manual Turbo Mode Select Enable for processor cores to run faster than the frequency specified by the manufacturer. The options are Disable and Enable. Package Power Limit MSR Lock Select Enabled to lock the package power limit for the model specific registers. The options are Disabled and Enabled.
  • Page 69 Chapter 6: BIOS 4-Core Ratio Limit Override This increases (multiplies) four clock speeds in the CPU core in relation to the bus speed when four CPU cores are active. Press "+" or "-" on your keyboard to change the value. The default value is 37 for X11SCZ-Q.
  • Page 70 SuperServer 5019C-MHN2 User's Manual Chipset Configuration  Warning: Setting the wrong values in the sections below may cause the system to malfunction. System Agent (SA) Configuration The following information will display: • SA PCIe Code Version: 7.0.53.66 • VT-d: Supported Memory Configuration...
  • Page 71 Chapter 6: BIOS Memory Scrambler Use this feature to enable or disable memory scrambler support. The options are Dis- able and Enable. MRC Fast Boot Use this feature to enable or disable fast path through the memory reference code. The options are Disable and Enable.
  • Page 72 SuperServer 5019C-MHN2 User's Manual Aperture Size Use this feature to set the Aperture size, which is the size of system memory reserved by the BIOS for graphics device use. The options are 128MB, 256MB, 512MB, 1024MB, and 2048MB. DVMT Pre-Allocated...
  • Page 73 Chapter 6: BIOS DMI Link ASPM Control Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disable, L0s, L1, and L0sL1. DMI Extended Sync Control Use this feature to enable or disable the DMI extended synchronization.
  • Page 74 SuperServer 5019C-MHN2 User's Manual GT - Power Management Control RC6 (Render Standby) Use this feature to enable render standby support. The options are Disabled and En- abled. Maximum GT frequency Use this feature to define the Maximum GT frequency. Choose between 33MHz (RPN) and 1200Mhz (RP0).
  • Page 75 Chapter 6: BIOS X2APIC Opt Out The feature "VT-D" must be enabled for this feature to be configurable. Use this feature to enable or disable X2APIC Opt Out. The options are Enable and Disable. PCH-IO Configuration PCH-IO Configuration • PCH SKU Name •...
  • Page 76 SuperServer 5019C-MHN2 User's Manual EDPC Use this feature to enable or disable rootport extensions for Downstream Port Contain- ment. The options are Disabled and Enabled. PCIe Speed Use this feature to select the PCI Express port speed. The options are Auto, Gen1, Gen2, and Gen3.
  • Page 77 Chapter 6: BIOS Device Settings This feature displays the status of a serial port specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address.
  • Page 78 SuperServer 5019C-MHN2 User's Manual AST2500SEC Super IO Configuration  AST2500SEC Super IO Configuration Super IO Chip AST 2500SEC Serial Port 2 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This feature displays the status of a serial port specified by the user.
  • Page 79 Chapter 6: BIOS Console Redirection Settings  Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 80 SuperServer 5019C-MHN2 User's Manual Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled. Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.
  • Page 81 Chapter 6: BIOS SOL Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits). SOL Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even.
  • Page 82 SuperServer 5019C-MHN2 User's Manual COM5 Redirection After BIOS POST Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.
  • Page 83 Chapter 6: BIOS AMT SOL Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 84 SuperServer 5019C-MHN2 User's Manual Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled. *If the feature above is set to Enabled, the following features are available for...
  • Page 85 Chapter 6: BIOS SATA And RST Configuration  SATA Controller(s) This feature enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled. SATA Mode Selection Select AHCI to configure a SATA drive specified by the user as an AHCI drive. Select RAID to configure a SATA drive specified by the user as a RAID drive.
  • Page 86 SuperServer 5019C-MHN2 User's Manual PCH-FW Configuration ME Firmware Version: 12.0.3.1091 ME Firmware Mode: Normal Mode ME Firmware SKU: Corporate SKU ME FW Image Re-Flash Use this feature to update the Mangement Engine firmware. The options are Disabled and Enabled. Manageability Features State Enabled this feature to allow system administrators to configure the ME BIOS extension (MEBx) configuration settings.
  • Page 87 Chapter 6: BIOS ASF Configuration  PET Progress Use this feature to enable or disable PET Events Progress to receive PET Events alerts. The options are Disabled and Enabled. WatchDog Select Enabled to allow AMT to reset or power down the system if the operating system or BIOS hangs or crashes.
  • Page 88 SuperServer 5019C-MHN2 User's Manual MEBx OEM Debug Menu Enable Use this feature to enable or disable the OEM debug menu in MEBx. The options are Disabled and Enabled. Unconfigure ME Use this feature to reset the MEBx password to default. The options are Disabled and Enabled.
  • Page 89 Chapter 6: BIOS Native PCIE Enable Enable this feature to grant control of PCI Express Native hot plug, PCI Express Power Management Events, and PCI Express Capability Structure Control. The options are Disabled and Enabled. Native ASPM Select Enabled for the operating system to control the ASPM, or Disabled for the BIOS to control the ASPM.
  • Page 90 SuperServer 5019C-MHN2 User's Manual PCIe/PCI/PnP Configuration  Option ROM execution Video Use this feature to select the execution of the video OpROM. The options are Do not launch, UEFI, and Legacy. PCI PERR/SERR Support Use this feature to enable or disable the runtime event for PCI errors. The options are Disabled and Enabled.
  • Page 91 Chapter 6: BIOS Use this feature to select which firmware to be loaded for LAN Port1 used for system boot. The options are Disabled and Enabled. Onboard LAN Option ROM Type Use this feature to select which firmware to be loaded for onboard LAN devices. The options Legacy and EFI.
  • Page 92 SuperServer 5019C-MHN2 User's Manual Use this feature to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0. Media detect count Use this option to specify the number of times media will be checked.
  • Page 93 • TPM Owner Status SMCI BIOS-Based TPM Provision Support (not available on the -F SKU) Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled. TXT Support Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system.
  • Page 94 SuperServer 5019C-MHN2 User's Manual *If the feature "Security Device Support" is enabled, the following features are available for configuration: SHA-1 PCR Bank Use this feature to disable or enable the SHA-1 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.
  • Page 95 Chapter 6: BIOS Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The options are TPM 1.2, TPM 2.0, Auto.

  • Page 96: Event Logs

    SuperServer 5019C-MHN2 User's Manual 6.4 Event Logs Use this menu to configure event log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 97 Chapter 6: BIOS SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events. The options are Enabled and Disabled. MECI (Multiple Event Count Increment) Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

  • Page 98: Ipmi

    SuperServer 5019C-MHN2 User's Manual 6.5 IPMI Use this menu to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This feature indicates the IPMI firmware revision in your system. IPMI STATUS This feature indicates the status of the IPMI firmware installed in your system.
  • Page 99 Chapter 6: BIOS When SEL is Full This feature allows the user to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 100 SuperServer 5019C-MHN2 User's Manual Station MAC Address This feature displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Gateway IP Address This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).
  • Page 101 The Disable option is for applications that require faster power on time wthout using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup is also invalid when IPMI Function Support is disabled. The general BMC function and motherboard health monitor such as fan control are still functioning even when this option is disabled.

  • Page 102: Security

    SuperServer 5019C-MHN2 User's Manual 6.6 Security Use this menu to configure the security settings for the system. Administrator Password Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.
  • Page 103 Chapter 6: BIOS Secure Boot Mode This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Customized. *If Secure Boot Mode is set to Customized, Key Management features are available for configuration: CSM Support This feature is for manufacturing debugging purposes.
  • Page 104 SuperServer 5019C-MHN2 User's Manual Secure Boot variable  Platform Key (PK) This feature allows the user to configure the settings of the platform keys. Details Select this feature to view the details of the Platform Key. Export Select Yes to export a PK from a file on an external media.
  • Page 105 Chapter 6: BIOS Append Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No. Delete Select Ok to remove the db and then the system will reset to Setup/Audit Mode. ...
  • Page 106 SuperServer 5019C-MHN2 User's Manual  OsRecovery Signatures Details Select this feature to view the details of the dbr. Export Select Yes to export a dbr from a file on an external media. Update Select Yes to load a factory default dbr or No to load from a file on an external media.

  • Page 107: Boot

    Chapter 6: BIOS 6.7 Boot Use this menu to configure boot settings. Setup Prompt Timeout Use this feature to specify the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.
  • Page 108 SuperServer 5019C-MHN2 User's Manual • LEGACY/UEFI/DUAL Boot Order #7 • LEGACY/UEFI/DUAL Boot Order #8 • LEGACY/UEFI/DUAL Boot Order #9 • LEGACY/UEFI/DUAL Boot Order #10 • LEGACY/UEFI/DUAL Boot Order #11 • LEGACY/UEFI/DUAL Boot Order #12 • LEGACY/UEFI/DUAL Boot Order #13 •...

  • Page 109: Save & Exit

    Chapter 6: BIOS 6.8 Save & Exit Use this menu to configure save and exit settings. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 110 SuperServer 5019C-MHN2 User's Manual Default Options Restore Defaults To set this feature, select Restore Optimized Defaults and press <Enter>. These are factory settings designed for maximum system performance but not for maximum stability. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>. This enables the user to save any changes to the BIOS setup for future use.

  • Page 111: Appendix A Bios Codes

    Appendix A: BIOS Codes Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 112 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 113: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 114 SuperServer 5019C-MHN2 User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät...
  • Page 115 Appendix B: Standardized Warning Statements . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 116 SuperServer 5019C-MHN2 User's Manual Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.
  • Page 117 Appendix B: Standardized Warning Statements Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 118 SuperServer 5019C-MHN2 User's Manual Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 119 Appendix B: Standardized Warning Statements ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 120 SuperServer 5019C-MHN2 User's Manual Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬...
  • Page 121 Appendix B: Standardized Warning Statements Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 122 SuperServer 5019C-MHN2 User's Manual Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 123 Appendix B: Standardized Warning Statements ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 124 SuperServer 5019C-MHN2 User's Manual ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 125 Appendix B: Standardized Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心 。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 126 SuperServer 5019C-MHN2 User's Manual ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오.
  • Page 127 Appendix B: Standardized Warning Statements ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 128 SuperServer 5019C-MHN2 User's Manual Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬...
  • Page 129 Appendix B: Standardized Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 130 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 131 ‫حجم املوصل والقابس السليم. استخدام أي كابالت ومحوالت أخرى قد يتسبب يف عطل أو حريق. يحظر قانون السالمة لألجهزة الكهربائية واملعدات استخدام الكابالت املعتمدة‬ ‫ من قبل‬UL ‫ أو‬CSA ‫( والتي تحمل عالمة‬UL/CSA) ‫ مع أي معدات أخرى غري املنتجات املعنية واملحددة من قبل‬Supermicro.
  • Page 132 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 133: Appendix C System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors Single Intel Xeon E-2100 or 8th/9th Gen Core i3/5/7/9 Pentium, Celeron processor in an LGA1151 socket Note: Please refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel PCH C246 BIOS...
  • Page 134 SuperServer 5019C-MHN2 User's Manual Power Supply Single 350W power supply AC Input Voltages: 100-240 VAC Rated Input Current: 5-2.5A Rated Input Frequency: 50-60 Hz Rated Output Power: 350 Watts Rated Output Voltages: +5V (8A), +12V (16A), +3.3V (8A), +5Vsb (2A) Operating Environment Operating Temperature: 0º...

  • Page 135: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 136 SuperServer 5019C-MHN2 User's Manual The file system supported by UEFI is FAT (including FAT12, FAT16, and FAT32), which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.
  • Page 137 Appendix D: UEFI BIOS Recovery 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 138 SuperServer 5019C-MHN2 User's Manual 6. After the BIOS recovery process is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a USB flash drive. 8. Press <Del> continuously during system boot to enter the BIOS setup utility. From the top of the tool bar, click on Boot and press <Enter>...
  • Page 139 Appendix D: UEFI BIOS Recovery 9. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 7. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process. Note: Do not interrupt this process until the BIOS flashing is complete.

Table of Contents
