SuperServer 5019C-M4L User's Manual
Installing the Air Shroud
Air shrouds concentrate airflow to maximize fan efficiency. It does not require screws to install.
•
Position the air shroud in the chassis as illustrated below (in red outline). The air shroud
fits over the fans and over the CPU. If necessary, move any cables that interfere with the
air shroud placement. Remove perforated tabs if necessary for a good fit.
SC512_X11SCL-LN4F
Air Shroud

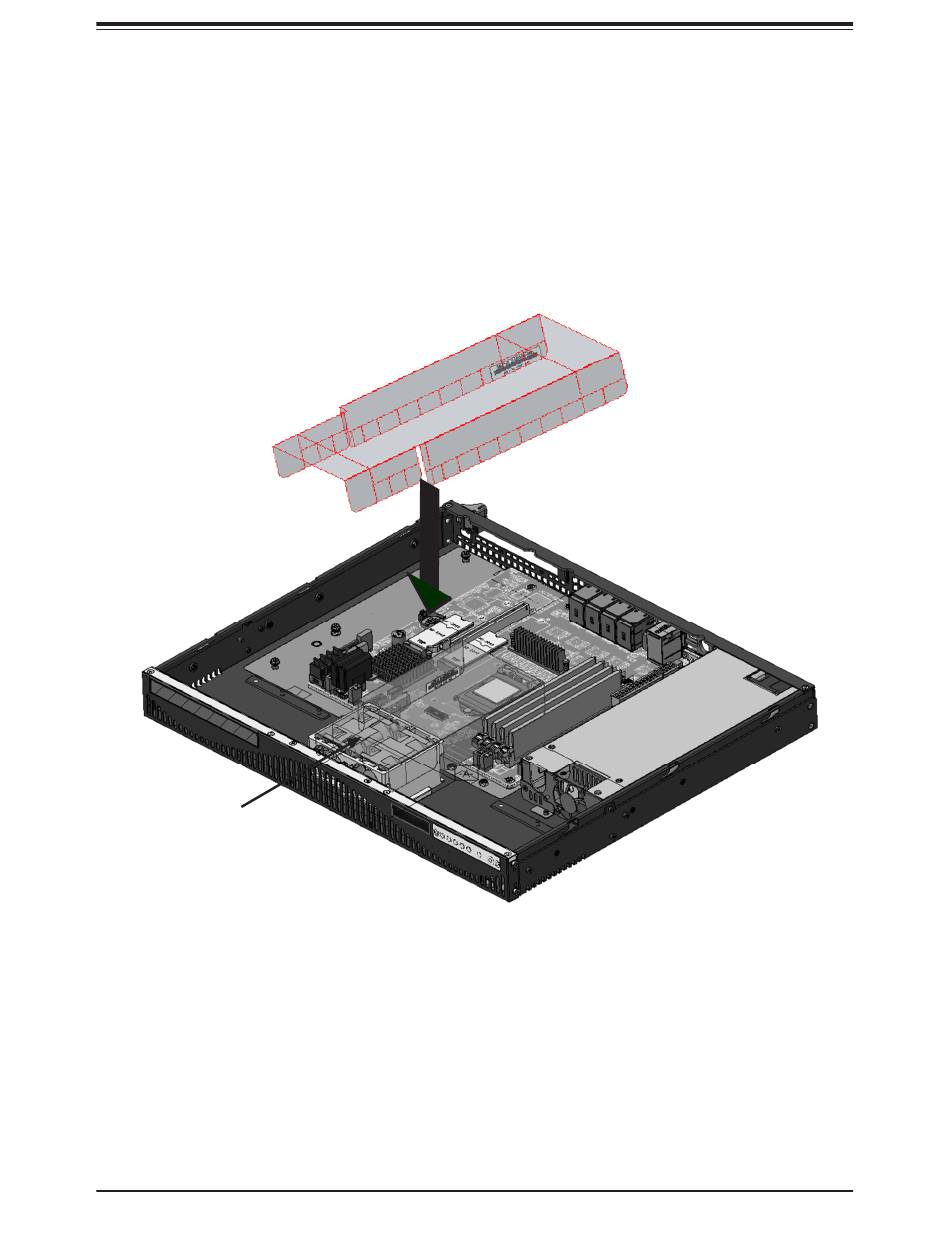

Figure 3-10. Installing the Air Shroud
40
