SuperServer 5019C-M4L User's Manual

3.3 Motherboard Components

Processor and Heatsink Installation

Notes:
•
Use ESD protection.
•
Unplug the AC power cord from all power supplies after shutting down the system.
•
Check that the plastic protective cover is on the CPU socket and none of the socket pins
are bent. If they are, contact your retailer.
•
When handling the processor, avoid touching or placing direct pressure on the LGA lands
(gold contacts). Improper installation or socket misalignment can cause serious damage
to the processor or CPU socket, which may require manufacturer repairs.
•
Refer to the Supermicro website for updates on processor support.
•
Graphics in this manual are for illustration only. Your components may look different.

Installing the LGA 1151 Processor

The motherboard should be installed in the chassis before the processor is installed.

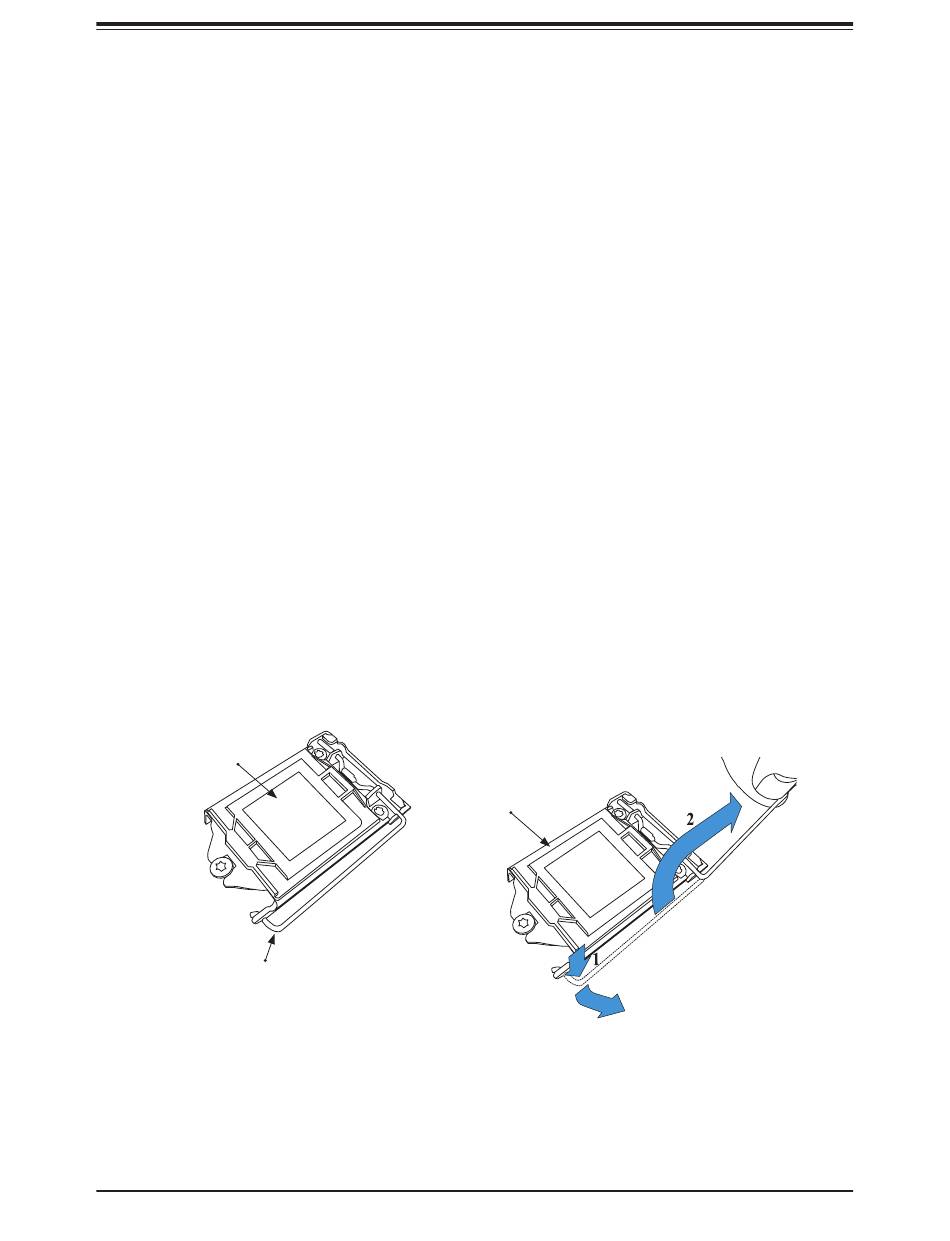

1. Press the load lever down to release the load plate from its locking position.
Plastic Protective
Cover
Load Lever
Load Plate
26
