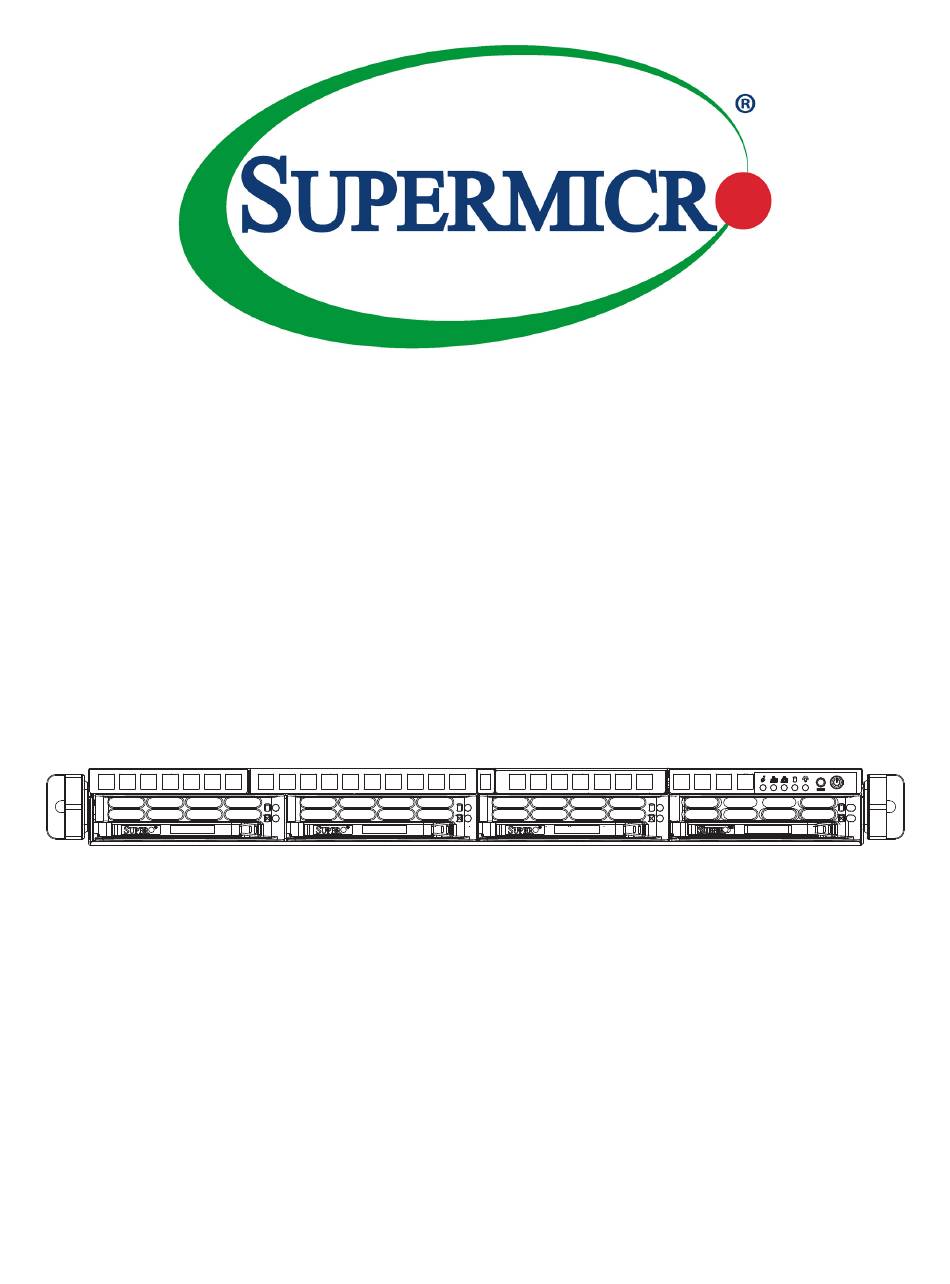

  • Page 1 SuperServer ® 5019C-M 5019C-MR USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5019C-M/MR. Installation and maintenance should be performed by experienced technicians only. Please refer to the 5019C-M/MR server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 SuperServer 5019C-M/MR User's Manual Memory Support ........................30 General Guidelines for Optimizing Memory Performance ..........30 DIMM Installation ......................31 DIMM Removal .........................31 3.4 Chassis Components ......................32 Hard Drives ........................32 Hard Drive Carrier Indicators ..................33 System Cooling .........................34 Replacing a Failed Fan ....................34 Air Shroud ........................35...
  • Page 6 Preface 6.2 Main Setup .........................56 6.3 Advanced Setup Configurations ..................58 6.4 Event Logs .........................81 6.5 IPMI ........................... 83 6.6 Security ..........................86 6.7 Boot ...........................90 6.8 Save & Exit .........................94 Appendix A BIOS Error Codes Appendix B Standardized Warning Statements for AC Systems Appendix C System Specifications...
  • Page 7 SuperServer 5019C-M/MR User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    Riser Card RSC-RR1U-E16 1.2 Unpacking the System Inspect the box the SuperServer 5019C-M/MR was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the 5019C-M/MR. Please refer to Appendix C for additional specifications. System Features Motherboard X11SCM-F Chassis 5019C-M: SC813MFTQC-350B 5019C-MR: SC813MFTQC-R407CB Intel Xeon E-2100, 8th Generation Core i3, Pentium, and Celeron (Socket H4 - LGA 1151) series Socket Type LGA 1151 (H4) Memory...

  • Page 10: Server Chassis Features

    SuperServer 5019C-M/MR User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features...

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The 5019C-M/MR is a 1U server. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description SATA HDD Hot-swap 3.5" SATA hard disk drive DVD Drive (optional) Front access DVD drive bay (drive is optional) Front USB 3.0 and...

  • Page 12: Rear Features

    SuperServer 5019C-M/MR User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. 5019C-M 5019C-MR Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description 5019C-M: 350W Platinum Level Power Supply Power Supply...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11SCM-F with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. JUIDB1 BMC_HB_LED LED4 FAN4...

  • Page 14: Quick Reference Table

    SuperServer 5019C-M/MR User's Manual Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JPG1 VGA Enable Pins 1-2 (Enabled) JPL1 ~ JPL2 GLAN Enable Pins 1-2 (Enabled) JPME2 ME Manufacturing Mode Pins 1-2 (Normal) JWD1 Watchdog Timer...
  • Page 15 Chapter 1: Introduction Connector Description USB0/1 Back Panel Universal Serial Bus (USB) 2.0 Ports USB2/3 Front Accessible USB 2.0 Header USB4/5 Back Panel USB 3.1 Gen 1 Ports USB6/7 Front Accessible USB 3.1 Gen 1 Header USB8 USB 3.1 Gen 1 Type-A Header VGA Port...
  • Page 16 SuperServer 5019C-M/MR User's Manual SVID IMVP8 VR DIMMA1 DDR4 (CHA) INTEL LGA1151 CPU_PE3 PCIe x16 SLOT DIMMA2 (Blue) (65W / 71W / 80W / 95W) DDR4 (CHB) DIMMB1 DIMMB2 (Blue) x4 DMI3 8GT/s PCHPE3 M.2 M-KEY #1 RMII/NCSI PCHPE3 PCHPE3 GLAN1 M.2 M-KEY #2...

  • Page 17: Chapter 2 Server Installation

    SuperServer 5019C-M/MR User's Manual Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.

  • Page 18: Server Precautions

    Chapter 2: Server Installation • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack.

  • Page 19: Circuit Overloading

    SuperServer 5019C-M/MR User's Manual Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 20: Installing The Rails

    Chapter 2: Server Installation 2.3 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided.

  • Page 21: Installing The Rack Rails

    SuperServer 5019C-M/MR User's Manual Figure 2-1. Installing the Rear Inner Rails Installing the Rack Rails Determine where you want to place the server in the rack (see the Rack and Server Precautions in Section 2.2). Note that servers should always be installed to the bottom of a rack first for stability reasons.

  • Page 22: Installing The Server Into A Rack

    Chapter 2: Server Installation 2.4 Installing the Server into a Rack You should now have rails attached to both the chassis and the rack. The next step is to install the server into the rack. 1. Line up the rear of the chassis rails with the front of the rack rails. 2.

  • Page 23: Installing The Server Into A Telco Rack

    SuperServer 5019C-M/MR User's Manual Installing the Server into a Telco Rack To install the SuperServer 5019C-M/MR into a Telco (or “open”) type rack, use two L-shaped brackets on either side of the chassis (four total). 1. First, determine how far the server will extend out from the front of the rack. The chassis should be positioned so that the weight is balanced between front and back.

  • Page 24: Chapter 3 Maintenance And Component Installation

    SuperServer 5019C-M/MR User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 25: Motherboard Components

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor(s) Begin by removing power from the system as described in Section 3.1.
  • Page 26 SuperServer 5019C-M/MR User's Manual Plastic Protective Cover Load Plate Load Lever 2. Gently lift the load lever to open the load plate. Remove the plastic protective cover. Do not touch the CPU socket contacts. 3. Locate the triangle on the CPU and CPU socket, which indicates the location of Pin 1.
  • Page 27 Chapter 3: Maintenance and Component Installation 4. Close the load plate, then gently push down the load lever into its locking position. CPU properly installed Load lever locked into place Note: You can only install the CPU in one direction. Make sure it is properly inserted into the socket before closing the load plate.
  • Page 28 SuperServer 5019C-M/MR User's Manual 1. Add the two remaining screws then finish the installation by fully tightening all four screws (be careful not to overtighten). Screw#2 Screw#1 Motherboard Mounting Holes Heatsink Bracket Figure 3-2. Installing the Heatsink Removing a Heatsink We do not recommend removing the heatsink.
  • Page 29 Chapter 3: Maintenance and Component Installation 3. Once the heatsink is loose, remove it from the CPU. 4. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease. Reapply the proper amount of thermal grease to the surface before you re-install the heatsink.

  • Page 30: Memory Support

    (2-DIMM per channel) with speeds of up to 2666MHz in four memory slots. Refer to the tables below for the recommended DIMM population order and additional memory information. Note: Check the Supermicro website for recommended memory modules. Exercise extreme care when installing or removing DIMM modules to prevent any damage.

  • Page 31: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots based on the recommended DIMM population table on page 31. 2. Push the release tabs outwards on both Notches ends of the DIMM slot to unlock it. 3.

  • Page 32: Chassis Components

    SuperServer 5019C-M/MR User's Manual 3.4 Chassis Components Hard Drives Your server may or may not have come with hard drives installed. Up to four 3.5" hard drives are supportd by the chassis. The SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis.

  • Page 33: Hard Drive Carrier Indicators

    State/Condition Indication Green Blinking Drive activity Binking Drive rebuilding Solid on Drive failure Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www. supermicro.com/products/nfo/files/storage/SBB-HDDCompList.pdf...

  • Page 34: System Cooling

    SuperServer 5019C-M/MR User's Manual System Cooling Four 4-cm fans provide the cooling for the system. The chassis provides two additional open fan housings, where an additional system fan may be added for optimal cooling. It is very important that the chassis top cover is installed for the cooling air to circulate properly through the chassis and cool the components.

  • Page 35: Air Shroud

    Chapter 3: Maintenance and Component Installation Figure 3-6. Replacing a System Fan Note: the figure above is for illustrative purposes only. The 5019C-M features a single power supply only. Air Shroud The air shroud is used to concentrate airflow to maximize fan efficiency. The air shroud does not require screws to set up.

  • Page 36: 5019C-M Power Supply

    Power Supply Failure If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). Removing the Power Supply Begin by removing power from the system as described in Section 3.1.

  • Page 37: 5019C-Mr Power Supplies

    The Power Fail LED will illuminate and remain on until the failed unit has been replaced. Replacement units can be ordered directly from Supermicro. The power supply units have a hot-swap capability, meaning you can replace the failed unit without powering down the system.

  • Page 38: Chapter 4 Motherboard Connections

    SuperServer 5019C-M/MR User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A serverboard layout indicating component locations may be found in Appendix B.

  • Page 39: Headers And Connectors

    Chapter 4: Motherboard Connections 8-Pin Power Connector JPW2 is an 8-pin 12V DC power input for the CPU that must be connected to the power supply. Refer to the table below for pin definitions. 8-pin Power Pin Definitions Pin# Definition 1 - 4 5 - 8 P12V (12V Power)

  • Page 40: Onboard Power Led Header

    SuperServer 5019C-M/MR User's Manual COM Header There is one COM header (COM1) on the motherboard. The COM header provides serial communication support. COM Header Pin Definitions Pin# Definition Pin# Definition Onboard Power LED Header An Onboard Power LED header is located at JLED1. This Power LED header is connected to the Front Control Panel to indicate the status of system power.
  • Page 41 Chapter 4: Motherboard Connections M.2 Slot The X11SCM-Fmotherboard has two M.2 slots. M.2 was formerly known as Next Generation Form Factor (NGFF) and serves to replace mini PCI-E. M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The hybrid M.2-H_2 slot supports PCI-E 3.0 x4 SSD cards in a 2280/22110 form factor, or SATA 3.0.
  • Page 42 SuperServer 5019C-M/MR User's Manual Standby Power The Standby Power header is located at JSTBY1 on the motherboard. You must have a card with a Standby Power connector and a cable to use this feature. Refer to the table below for pin definitions.
  • Page 43 Chapter 4: Motherboard Connections SGPIO Headers There are two Serial Link General Purpose Input/Output (I-SGPIO1, I-SGPIO2) headers located on the motherboard. The SGPIO headers are used to communicate with the enclosure management chip on the back panel. SGPIO Header I-SGPIO 1/2 Pin Definitions Pin# Definition...
  • Page 44 RAID 0, 1, 5, and 10. SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA. Note: Supermicro SuperDOMs are yellow SATADOM connectors with power pins built in and do not require separate external power cables. These connectors are backwards compatible with non-Supermicro SATADOMS that require an external power supply.

  • Page 45: Ports

    Chapter 4: Motherboard Connections 4.3 Ports Rear I/O Ports See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 4-2. Rear I/O Ports Description Description VGA Port USB4 (USB 3.1 Gen 1) Dedicated IPMI LAN LAN1 USB1...

  • Page 46: Jumpers

    SuperServer 5019C-M/MR User's Manual 4.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 47 Chapter 4: Motherboard Connections ME Manufacturing Mode Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in the manufacturing mode, which will allow the user to flash the system firmware from a host server for system setting modifications.
  • Page 48 SuperServer 5019C-M/MR User's Manual VGA Enable Jumper JPG1 allows the user to enable the onboard VGA connector. The default setting is pins 1-2 to enable the connection. Refer to the table below for jumper settings. VGA Enable/Disable Jumper Settings Jumper Setting...

  • Page 49: Led Indicators

    Chapter 4: Motherboard Connections 4.5 LED Indicators LAN LEDs Two LAN ports (LAN1 ~ LAN2) are on the X11SCM-F. Each Ethernet LAN port has two LEDs. The yellow LED indicates activity, while the other Link LED may be green, orange, or off to indicate the speed of the connection.
  • Page 50 SuperServer 5019C-M/MR User's Manual Unit ID LED A rear UID LED indicator (LED4) is located near the UID switch on the back I/O panel. This UID indicator provides easy identification of a system unit that may need service. UID LED...

  • Page 51: Chapter 5 Software

    You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, please refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the Windows OS for a RAID System 1.

  • Page 52: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains.

  • Page 53: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 54: Ipmi

    SuperServer 5019C-M/MR User's Manual 5.4 IPMI The X11SCM-F supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at:...

  • Page 55: Chapter 6 Bios

    Chapter 6: BIOS Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 56: Main Setup

    SuperServer 5019C-M/MR User's Manual 6.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. The Main BIOS setup screen is shown below.
  • Page 57 Chapter 6: BIOS CPLD Version This item displays the Complex Programmable Logic Device version. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 58: Advanced Setup Configurations

    SuperServer 5019C-M/MR User's Manual 6.3 Advanced Setup Configurations Use the arrow keys to select the Advanced menu and press <Enter> to access the submenu features: Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 59 Chapter 6: BIOS Option ROM Messages Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current. Wait For "F1"...
  • Page 60 SuperServer 5019C-M/MR User's Manual CPU Configuration  The following CPU information will display: • Type • CPU Signature • Microcode Revision • CPU Speed • L1 Data Cache • L1 Instruction Cache • L2 Cache • L3 Cache • L4 Cache •...
  • Page 61 Chapter 6: BIOS Intel (VMX) Virtualization Technology Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disabled and Enabled. Active Processor Cores This feature determines how many CPU cores will be activated for each CPU. When All is selected, all cores in the CPU will be activated.
  • Page 62 SuperServer 5019C-M/MR User's Manual Turbo Mode This feature will enable dynamic control of the processor, allowing it to run above stock fre- quency. The options are Disabled and Enabled. Monitor/Mwait Select Enabled to enable the Monitor/Mwait instructions. The Monitor instructions monitor a region of memory for writes, while MWait instructions instruct the CPU to stop until the moni- tored region begins to write.
  • Page 63 Chapter 6: BIOS Chipset Configuration  Warning: Setting the wrong values in the following features may cause the system to malfunc- tion. System Agent (SA) Configuration The following information is displayed: • SA PCIe Code Version • VT-d Memory Configuration ...
  • Page 64 SuperServer 5019C-M/MR User's Manual Fast Boot Use this feature to enable or disable fast path through the memory reference code (MRC). The options are Disabled and Enabled. REFRESH_2X_MODE Use this feature to select the memory controller 2x refresh rate mode. The options are Disabled, 1- Enabled for WARM or HOT, and 2- Enabled HOT only.
  • Page 65 Chapter 6: BIOS Power Limit Scale Use this feature to select the scale used for the slot power limit value. The options are 1.0x, 0.1x, 0.01x, and 0.001x. Physical Slot Number Use this feature to set the physical slot number attached to this port. Press "+" or "-" on your keyboard to change the setting to a value between 0-8191.
  • Page 66 SuperServer 5019C-M/MR User's Manual Peer Memory Write Enable Use this feature to enable or disable peer memory write. The options are Disabled or Enabled. M.2-P_1 / M.2-H_2  M.2-P_1 / M.2-H_2** ASPM Support This feature controls the Active State Power Management (ASPM) setting. The op- tions are Disabled, L0s, L1, L0sL1, and Auto.
  • Page 67 Chapter 6: BIOS Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options for Serial Port 1 are Auto, (IO=3F8h;...
  • Page 68 SuperServer 5019C-M/MR User's Manual COM1 Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 69 Chapter 6: BIOS COM1 Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled. COM1 Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. COM1 Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 70 SuperServer 5019C-M/MR User's Manual SOL Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits. SOL Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even.
  • Page 71 Chapter 6: BIOS SOL Redirection After POST Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.
  • Page 72 SuperServer 5019C-M/MR User's Manual EMS Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 73 Chapter 6: BIOS Aggressive LPM Support When Aggresive Link Power Management (LPM) support is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes.
  • Page 74 SuperServer 5019C-M/MR User's Manual PCH-FW Configuration  The following firmware information will display: • Operational Firmware Version • Backup Firmware Version • Recovery Firmware Version • ME Firmware Features • ME Firmware Status #1 • ME Firmware Status #2 •...
  • Page 75 Chapter 6: BIOS USB Configuration  The following USB items will be displayed: • USB Module Version • USB Controllers • USB Devices Legacy USB Support (Available when USB Functions are not Disabled) Select Enabled to support legacy USB devices. Select Auto to disable legacy support if USB devices are not present.
  • Page 76 SuperServer 5019C-M/MR User's Manual VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select On- board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.
  • Page 77 Chapter 6: BIOS Network Stack Select Enabled to enable Preboot Execution Environment (PXE) or Unified Extensible Firm- ware Interface (UEFI) for network stack support. The options are Disabled and Enabled. *If the feature above is set to Enabled, the following settings will become available for configuration: Ipv4 PXE Support Select Enabled to enable IPv4 PXE boot support.
  • Page 78 SuperServer 5019C-M/MR User's Manual Trusted Computing  The X11SCM-F supports TPM 1.2 and 2.0. The following Trusted Platform Module (TPM) information will display if a TPM 2.0 module is detected: • Firmware Version • Vendor Name Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enable, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security.
  • Page 79 TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The options are TPM 1.2, TPM 2.0, and Auto. SMCI BIOS-Based TPM Provision Support Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled. TXT Support Intel Trusted Execution Technology (TXT) helps protect against software-based attacks and ensures protection, confidentiality, and integrity of data stored or created on the system.
  • Page 80 SuperServer 5019C-M/MR User's Manual iSCSI Configuration  This submenu is available for configuration when "Network Stack" is enabled under the sub- menu, "PCIe/PCI/PnP Configuration". iSCSI Initiator Name This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format.

  • Page 81: Event Logs

    Chapter 6: BIOS 6.4 Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled. Erasing Settings Erase Event Log If No is selected, data stored in the event log will not be erased.
  • Page 82 SuperServer 5019C-M/MR User's Manual SMBIOS Event Log Standard Settings Log System Boot Event This feature toggles the System Boot Event logging to enabled or disabled. The options are Enabled and Disabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurences that a duplicate event must happen before the MECI counter is incremented.

  • Page 83: Ipmi

    Chapter 6: BIOS 6.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 84 SuperServer 5019C-M/MR User's Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 85 Chapter 6: BIOS Station MAC Address This feature displays the Station MAC address for this computer. Mac addresses are 6 two- digit hexadecimal numbers. Gateway IP Address This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 86: Security

    SuperServer 5019C-M/MR User's Manual 6.6 Security This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.
  • Page 87 Chapter 6: BIOS CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The options are Disabled and Enabled.  Key Management This submenu allows the user to configure the following Key Management settings. ...
  • Page 88 SuperServer 5019C-M/MR User's Manual  Key Exchange Keys Update Select Yes to load the KEK from the manufacturer's defaults. Select No to load the KEK from a file. The options are Yes and No. Append Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK.
  • Page 89 Chapter 6: BIOS  OsRecovery Signature This feature uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are: 1) Public Key Certificate a. EFI Signature List b. EFI CERT X509 (DER Encoded) c.

  • Page 90: Boot

    SuperServer 5019C-M/MR User's Manual 6.7 Boot Use this feature to configure Boot settings. Setup Prompt Timeout Use this feature to indicate the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.
  • Page 91 Chapter 6: BIOS • Legacy/UEFI/Dual Boot Option #5 • Legacy/UEFI/Dual Boot Option #6 • Legacy/UEFI/Dual Boot Option #7 • Legacy/UEFI/Dual Boot Option #8 • UEFI/Dual Boot Option #9 • Dual Boot Option #10 • Dual Boot Option #11 • Dual Boot Option #12 •...
  • Page 92 SuperServer 5019C-M/MR User's Manual Path for Boot Option Use this feature to enter the path for the new boot option in the format fsx:\path\filename.efi. Boot Option File Path Use this feature to specify the file path for the new boot option.
  • Page 93 Chapter 6: BIOS UEFI Hard Disk Drive BBS Priorities  This feature sets the system boot order of detected devices. • Boot Option #1 Hard Disk Drive BBS Priorities  This feature sets the system boot order of detected devices. •...

  • Page 94: Save & Exit

    SuperServer 5019C-M/MR User's Manual 6.8 Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below: Save Options Discard Changes and Exit Select this feature to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer.
  • Page 95 Chapter 6: BIOS Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save As User Defaults To set this feature, select Save as User Defaults from the Save &...

  • Page 96: Appendix A Bios Error Codes

    SuperServer 5019C-M/MR User's Manual Appendix A BIOS Error Codes A-1 BIOS Error Beep (POST) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 97 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 98: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 99 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 100 SuperServer 5019C-M/MR User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...
  • Page 101 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 102 SuperServer 5019C-M/MR User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 103 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 104 SuperServer 5019C-M/MR User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...
  • Page 105 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 106 SuperServer 5019C-M/MR User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...
  • Page 107 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 108 SuperServer 5019C-M/MR User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 109 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 110 SuperServer 5019C-M/MR User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 111 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 112 SuperServer 5019C-M/MR User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 113 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 114 SuperServer 5019C-M/MR User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 115 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 116 ‫حجم املوصل والقابس السليم. استخدام أي كابالت ومحوالت أخرى قد يتسبب يف عطل أو حريق. يحظر قانون السالمة لألجهزة الكهربائية واملعدات استخدام الكابالت املعتمدة‬ ‫ من قبل‬UL ‫ أو‬CSA ‫( والتي تحمل عالمة‬UL/CSA) ‫ مع أي معدات أخرى غري املنتجات املعنية واملحددة من قبل‬Supermicro.
  • Page 117 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 118: Appendix C System Specifications

    SuperServer 5019C-M/MR User's Manual Appendix C System Specifications Processors Intel Xeon E-2100, 8th Generation Core i3, Pentium, or Celeron (Socket H4 - LGA 1151) series Note: Please refer to the motherboard specifications pages on our website for updates to supported processors.
  • Page 119 Appendix C: System Specifications Operating Environment Operating Temperature: 10º to 35º C (50º to 95º F) Non-operating Temperature: -40º to 70º C (-40º to 158º F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,...
