6. Insert the hard disk module into the slot until it is fully inserted.

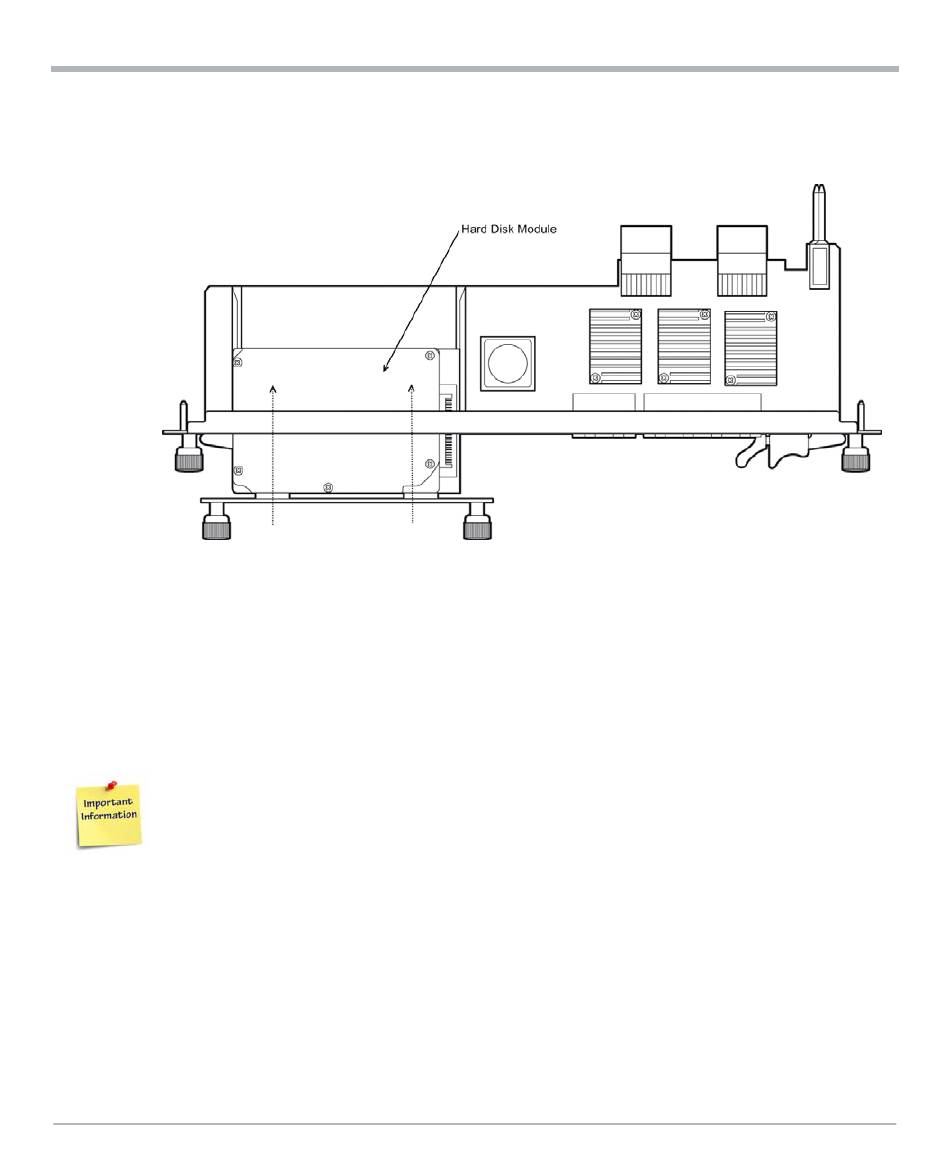

Figure 2-2 Inserting the Hard Disk Module

7. Tighten the two thumb screws of the hard disk module.
8. Take all necessary steps in your operating system to make the hard disk operable (the
step depend on the OS you are using).
2.5

Installing and Removing the RTM

The RTM must be installed into a ATCA system without a Zone 3 midplane.
The RTM provides support for basic hot swap, that means it can be installed,
removed and replaced in a powered system. However, after the RTM is installed or
replaced in a powered system the front blade has to be rebooted so that the OS
can recognize the SAS controller or other PCI devices located on the RTM.
