Canon imagePROGRAF GP-5300 Online Manual page 88

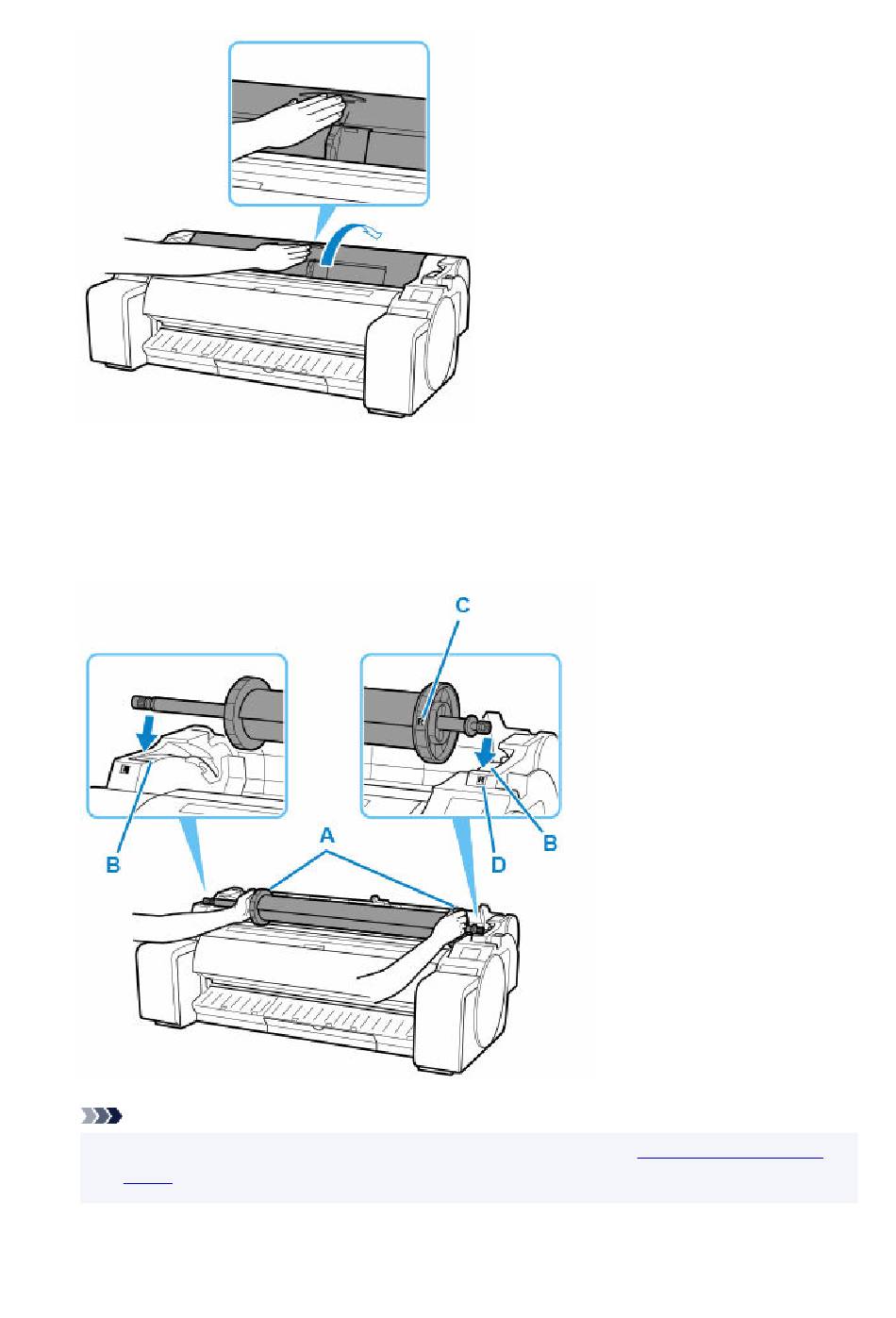

4. 4. Holding the roll holder flange (A), rest the roll holder shaft on the roll holder resting ledge
(B).
At this time, position the holder as shown in the illustration so that the R label (C) on the roll holder
flange is aligned with the R label (D) on the printer.
Note
• • For the procedure for attaching the roll paper to the Roll Holder, see
Holder."
88
"Loading Rolls on the Roll
