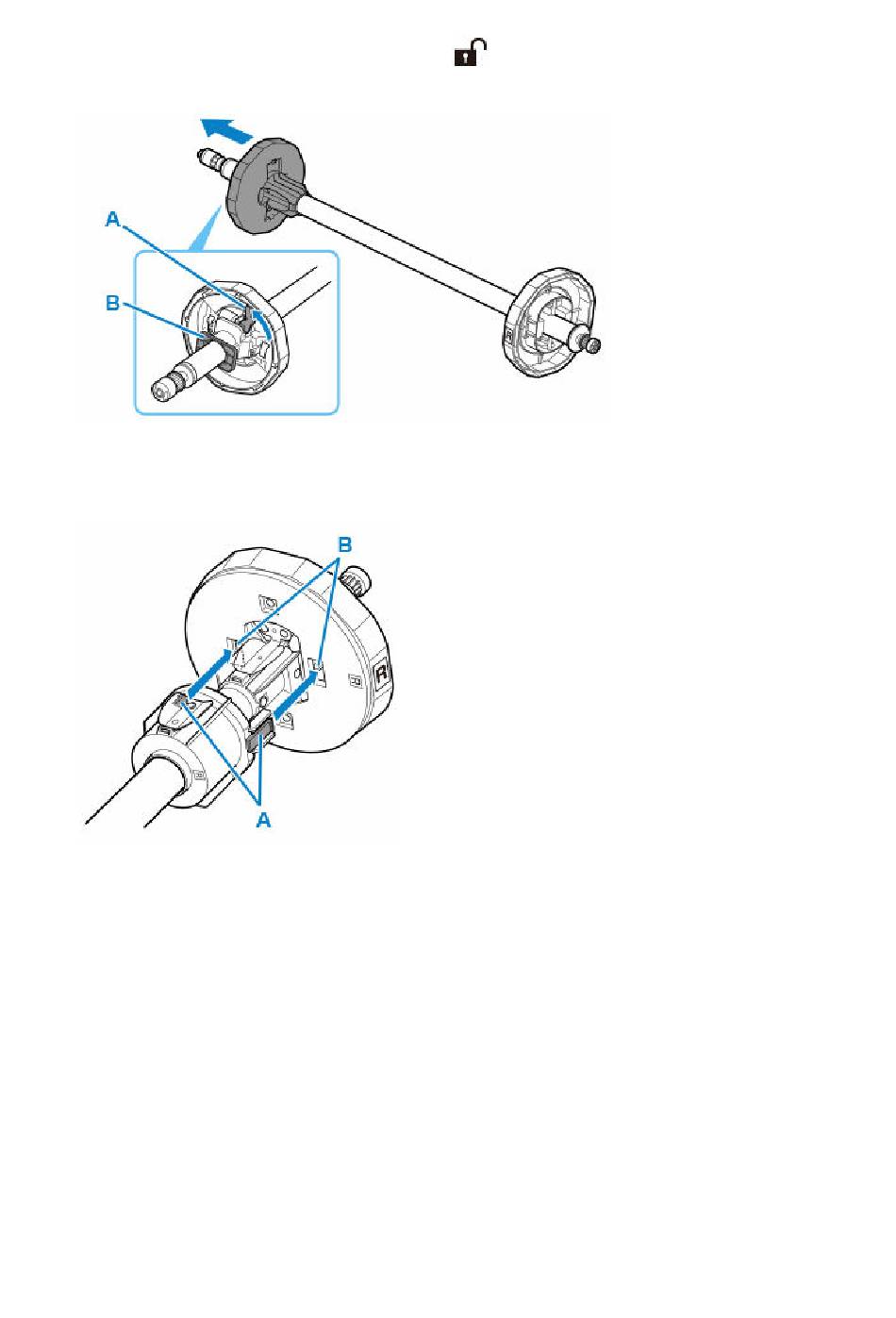

1. 1. Rotate the holder stopper lever (A) towards
position (B), remove holder stopper from the roll holder.
2. 2. If using 3-inch core paper, align 3-inch paper core attachment tabs (A) with roll holder holes
(B) and insert firmly.
3. 3. With leading edge of roll paper facing forward as shown, insert Roll Holder from right side of
roll. Insert firmly until roll paper touches flange (A) of roll holder.
to release the lock, and while holding it in
