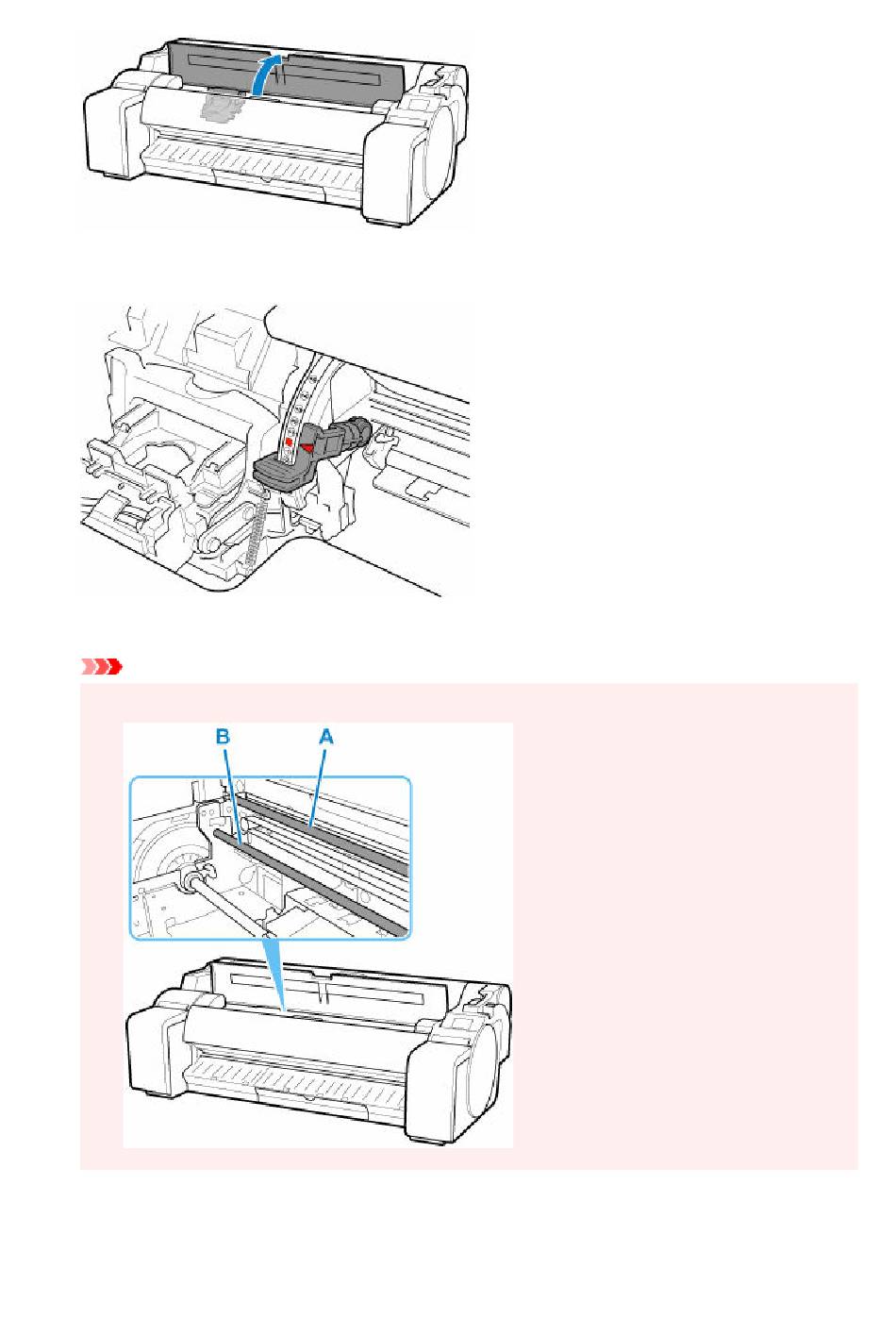

6. Align the angle adjustment lever with the red square and close the top cover.
A test pattern is printed for adjustment.
Important
•
• Do not touch the linear scale (A) or carriage shaft (B). Touching these may cause malfunction.
7.
7. Examine the test pattern for adjustment. Determine the straightest set of lines.
