Camera Installation; Removing The Dome Cover - Direct IP Idis DC-D4236RX Quick Manual

DC-D4236WRX(-A), DC-D4236HRX(-A)
1
2
3
5
7
5
IR LED
1
Lens
2
Factory Reset Button
3
Built-in Microphone
4
Wall/Ceiling
5
Installation Hole
Power
6
6
5
6
9
0
!
Network Port
7
Dome Cover Assembly
8
Part
Alarm I/O, Audio I/O,
9
Video Out (CVBS)
SD Memory Card Slot
0
Cable Rubber
!

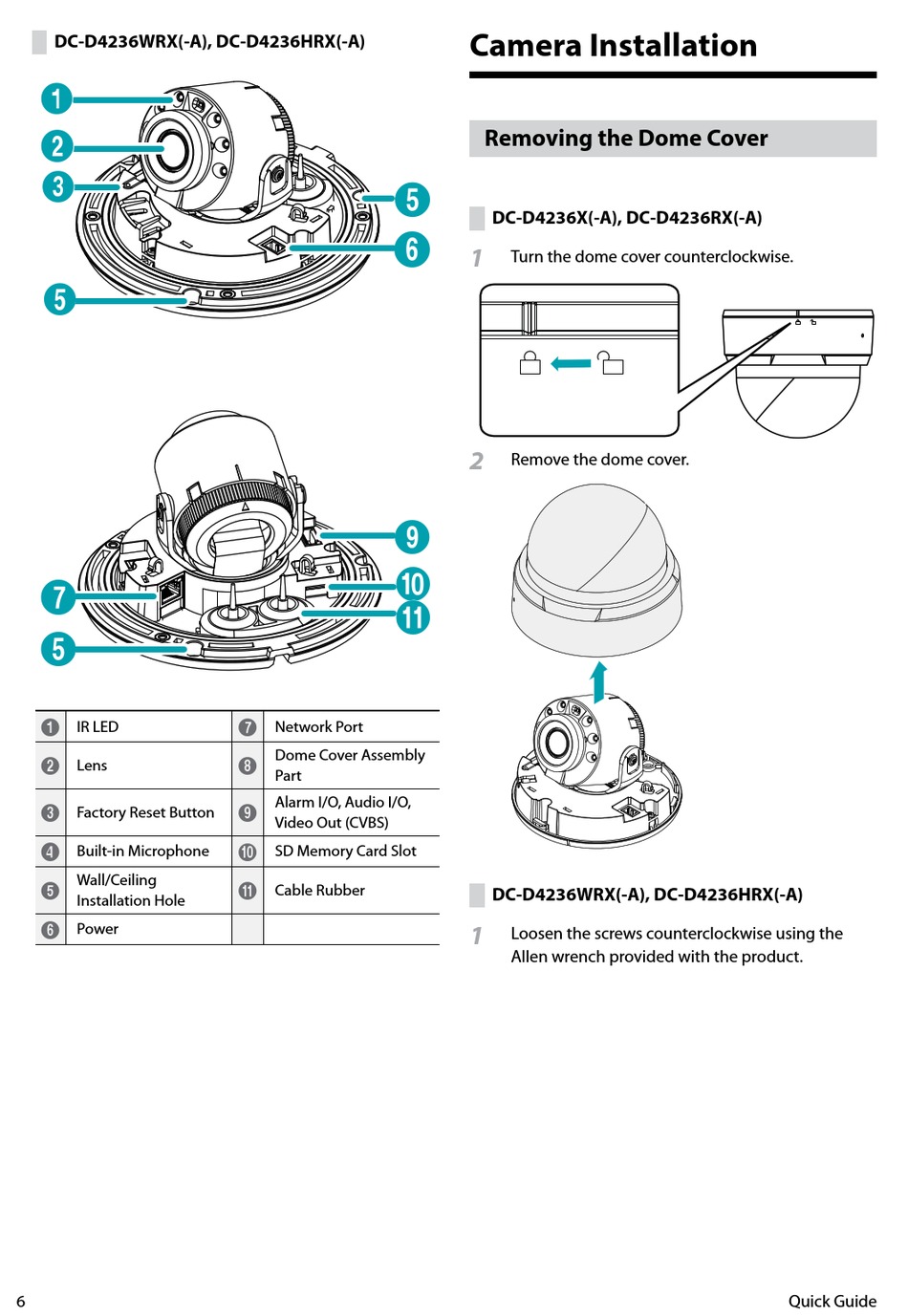

Camera Installation

Removing the Dome Cover

DC-D4236X(-A), DC-D4236RX(-A)
1
Turn the dome cover counterclockwise.
2
Remove the dome cover.
DC-D4236WRX(-A), DC-D4236HRX(-A)
1
Loosen the screws counterclockwise using the
Allen wrench provided with the product.
