Direct IP Idis DC-D4236RX Quick Manual page 8

DC-D4236X(-A), DC-D4236RX(-A)
1

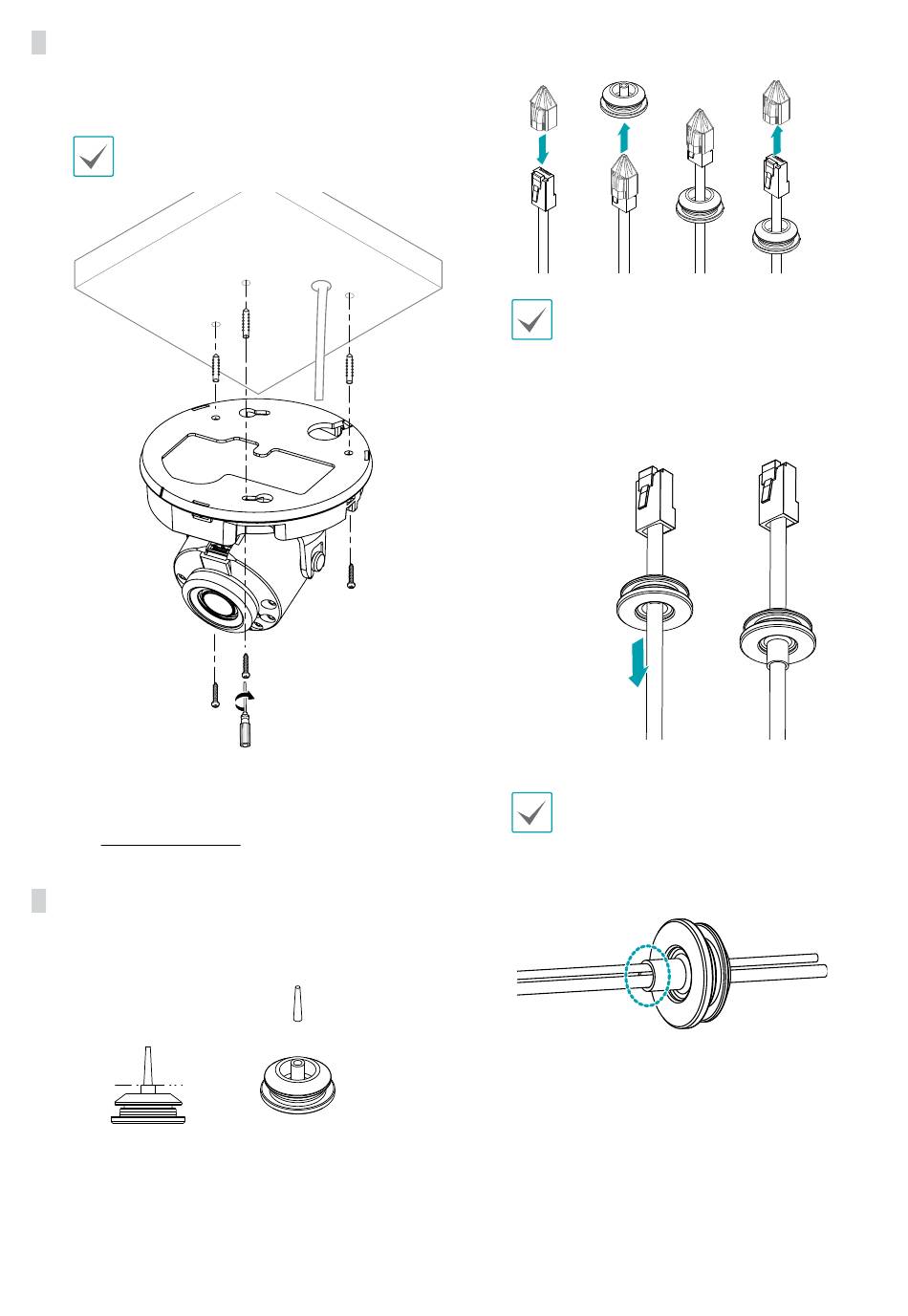

Use the screws, anchor provided with the camera
to secure the install body on a wall or a ceiling.
Use the provided guide pattern to check the
distance between the screws.
2
Connect external devices, the network cable, and
the power adapter.
3
Adjust the angle. For more information, refer to
the Angle Adjustment.
DC-D4236WRX(-A), DC-D4236HRX(-A)
1
Detach the protrusion part from the cable rubber
along the dotted line.
8
2
Make the LAN cable go through the cable rubber
using the protect connector.
It is recommended to use lubricant to move
the LAN cable smoothly.
3
Pull the cable slightly and arrange the rubber as
shown below.
To pass through a thin cable or more than
two cables, it is advised to finish it using
silicon to make sure waterproofed perfectly.
(Silicon finishing part — refer to the bottom
image.)
