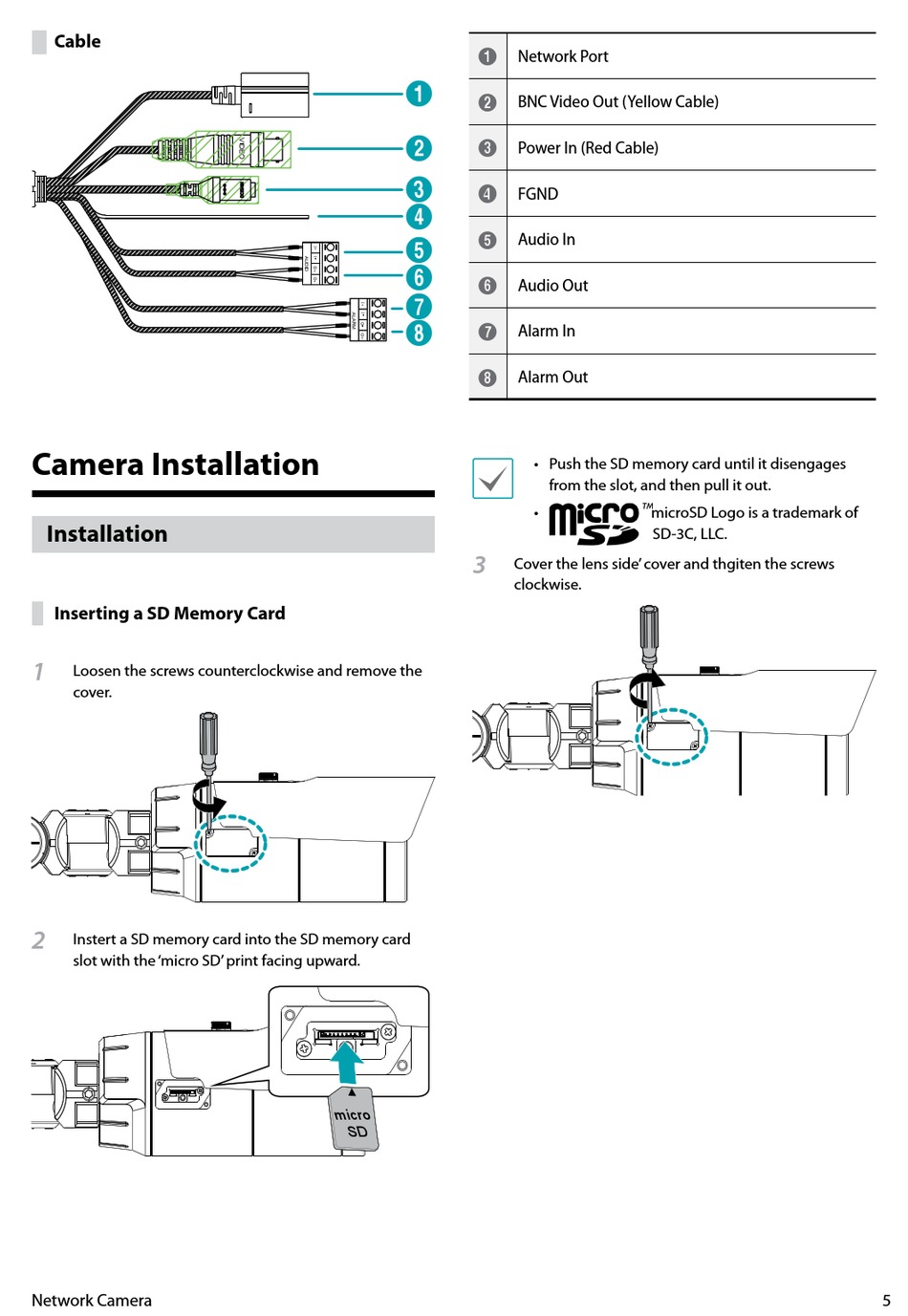

Camera Installation

Installation
Inserting a SD Memory Card
1
Loosen the screws counterclockwise and remove the
cover.
2
Instert a SD memory card into the SD memory card
slot with the 'micro SD' print facing upward.
Network Camera
Network Port
1
1
BNC Video Out (Yellow Cable)
2
2
Power In (Red Cable)
3
3
FGND
4
4
Audio In
5
5
6
Audio Out
6
7
8
Alarm In
7
Alarm Out
8
• Push the SD memory card until it disengages
from the slot, and then pull it out.
3
Cover the lens side' cover and thgiten the screws
clockwise.
microSD Logo is a trademark of
SD-3C, LLC.
