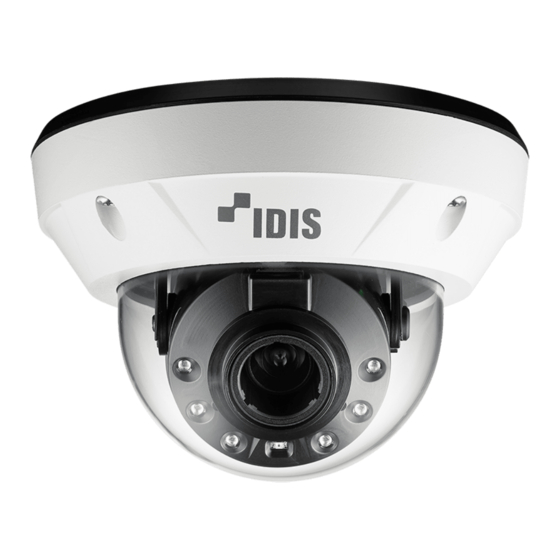

- Page 1 Network Camera Installation Manual DC-D4236X / DC-D4236RX / DC-D4236WRX / DC-D4236HRX DC-D4236X-A / DC-D4236RX-A / DC-D4236WRX-A / DC-D4236HRX-A Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • Supports H.265 and H.264 video compression and M-JPEG still image compression algorithms • Supports 4-stage video compression rate and DC-D4236X(-A) / DC-D4236RX(-A) / DC- multiple compression resolutions D4236WRX(-A) / DC-D4236HRX(-A) are IP-based • Two-way audio communication support for remote network cameras that compress and transmit video over DC-D4236X/DC-D4236RX/DC-D4236WRX/ audio dialog... - Page 7 Part 1 – Introduction • Easy network access via UPnP (Universal Plug and • Backup storage on a micro SD memory card as Play) function and embedded mDNS (Multicast DNS) a safeguard against data loss during network protocol interruptions • Wide dynamic range compensation (True WDR) for •...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D4236X(-A), DC- DC-D4236WRX(-A), DC- D4236RX(-A) D4236HRX(-A) Terminal Blocks (2 ea.) Network Camera Desiccant Allen Wrench Quick Guide Screws (3 ea.) Protect Connector Guide Pattern DC-D4236WRX(-A), DC-D4236HRX(-A) models... -
Page 9: Overview
Part 1 – Introduction Overview Body DC-D4236X(-A) Dome Cover DC-D4236X(-A), DC-D4236RX(-A) DC-D4236WRX(-A), DC-D4236HRX(-A) - Page 10 Part 1 – Introduction DC-D4236RX(-A) DC-D4236WRX(-A), DC-D4236HRX(-A) IR LED Lens Factory Reset Button Wall/Ceiling Installation Hole Power Network Port Dome Cover Assembly Part Alarm I/O, Audio I/O, Video Out (CVBS) SD Memory Card Slot Cable Rubber • IR LED A sensor in the middle monitors lighting levels and activates the IR LED during low-lighting conditions.
- Page 11 Part 1 – Introduction • Factory Reset Button • Alarm Restores the camera's default factory settings. For - O (Out): It is the BJT (Bipolar Junction Transistor) more information, refer to the Factory Reset. - open collector output. If the voltage and current exceed the specification limit (Max.
-
Page 12: Factory Reset
Part 1 – Introduction • Cable Rubber Factory Reset Foreign matter may get inside if reconnecting is failed after removing the cable access hole rubber. Only use the factory reset button to restore the camera to its factory default settings. •... -
Page 13: Installation
Part 1 – Introduction Installation DC-D4236WRX(-A), DC-D4236HRX(-A) Installation of this product does not require the use of Loosen the screws counterclockwise using the allen special tools. wrench provided with the product. For more information on other devices comprising the overall system, refer to their respective installation manuals. -
Page 14: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card Installation Insert a SD memory card into the SD memory card slot • Check the wall or ceiling to see if it needs to be with the 'micro SD' print facing upward. reinforced. - Page 15 Part 1 – Introduction DC-D4236WRX(-A), DC-D4236HRX(-A) To pass through a thin cable or more than two cables, it is advised to finish it using silicon to make sure waterproofed perfectly. (Silicon finishing part — refer Detach the protrusion part from the cable rubber to the bottom image.) along the dotted line.
-
Page 16: Angle Adjustment
Part 1 – Introduction Angle Adjustment Use the screws, anchor provided with the camera to secure the install body on a wall or a ceiling. Use the provided guide pattern to check the The lens can be rotated along three axes. distance between the screws. -
Page 17: Closing The Dome Cover
Part 1 – Introduction Closing the Dome Cover Dimension DC-D4236X(-A), DC-D4236RX(-A) DC-D4236X(-A), DC-D4236RX(-A) Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. DC-D4236WRX(-A), DC-D4236HRX(-A) Fasten the screws for the dome cover clockwise using Ø... - Page 18 Part 1 – Introduction DC-D4236WRX(-A), DC-D4236HRX(-A) Ø 155mm...
-
Page 19: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out Power Network Remote Monitoring... -
Page 20: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Sensor In Audio In Alarm Out Audio Out microSD Memory Card Network Camera Network Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 21: Part 3 - Appendix
Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. If using a PoE switch to supply power to the camera using an Ethernet cable, check the Ethernet cable connection. • Check the power outlet. If using a PoE switch to supply power to the camera using an Ethernet cable, check the PSE device's power supply. -
Page 22: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=2.8 - 12mm Aperture F=1.4 Iris Control DC Iris Angular Field of View Wide : 98°(H), Tele : 33°(H) - Page 23 Part 3 - Appendix * An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended to ensure stable recording performance. * An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure.
- Page 24 Part 3 - Appendix External DC-D4236X(-A), 122mm x 103.40mm (4.8" x 4.07") Dimensions (Ø DC-D4236RX(-A) x H) D4236WRX(-A), 155mm x 105mm (6.1" x 4.13") DC-D4236HRX(-A) Weight (Main DC-D4236X(-A) 0.35kg (0.77lb) Unit) DC-D4236RX(-A) 0.37kg (0.81lb) DC-D4236WRX(- 0.985kg (2.17lb) DC-D4236HRX(-A) 0.99kg (2.18lb) V1.3...
- Page 25 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
