Camera Installation; Removing The Dome Cover; Closing The Dome Cover - Direct IP Idis DC-D4212R Quick Manual

Lens
1
Network Port
2
Wall/Ceiling
3
Installation Hole
Cable Access Hole
4

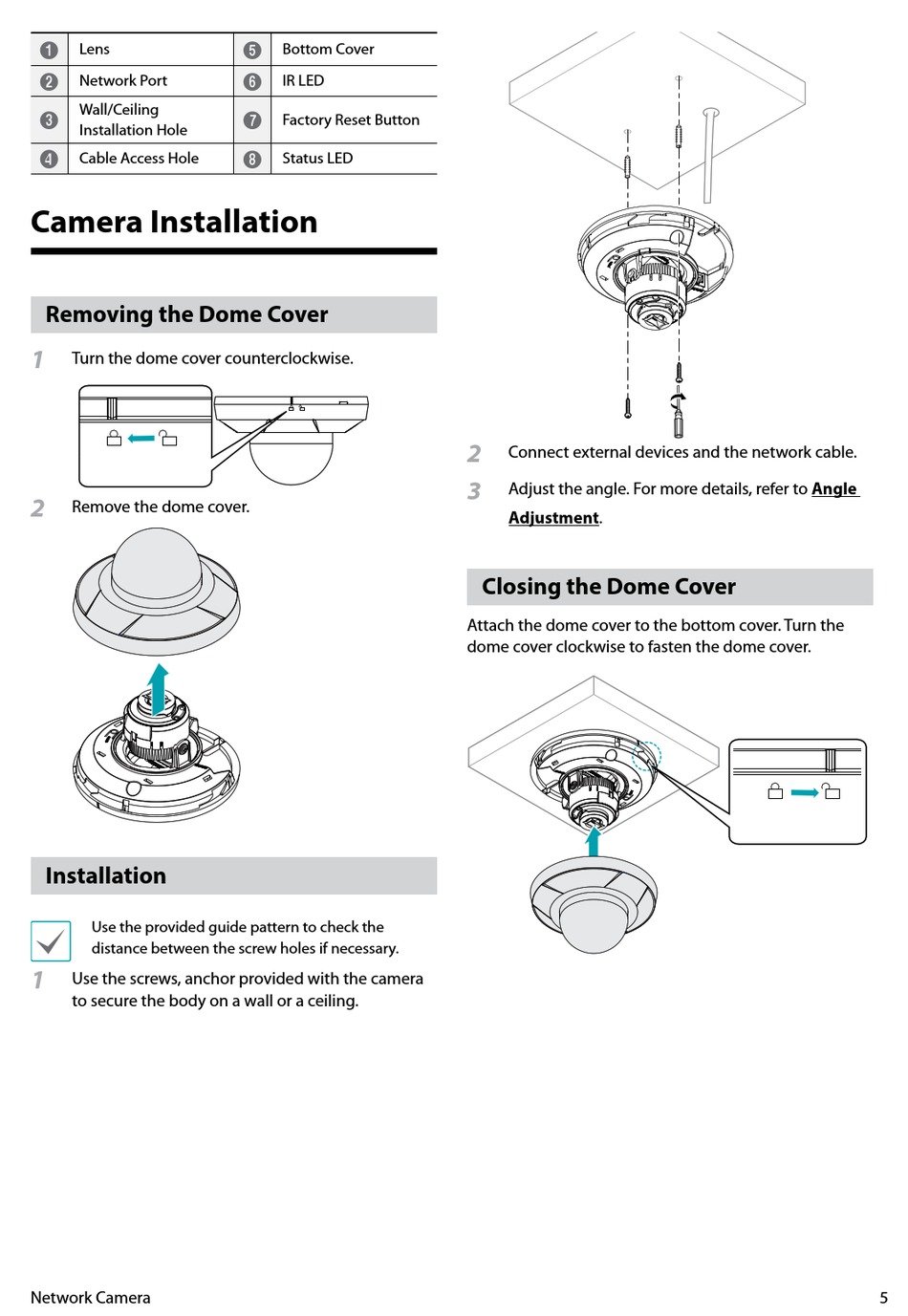

Camera Installation

Removing the Dome Cover

1
Turn the dome cover counterclockwise.
2
Remove the dome cover.
Installation
Use the provided guide pattern to check the
distance between the screw holes if necessary.
1
Use the screws, anchor provided with the camera
to secure the body on a wall or a ceiling.
Network Camera
Bottom Cover
5
IR LED
6
Factory Reset Button
7
Status LED
8
2
Connect external devices and the network cable.
3
Adjust the angle. For more details, refer to Angle
Adjustment.

Closing the Dome Cover

Attach the dome cover to the bottom cover. Turn the
dome cover clockwise to fasten the dome cover.
5
