4 Quick overview
Item Symbol
1
2
3
4
5
6
16
Description 0
System push-button (main menu)
Display and configuration of system settings > see 4.7 chapter
push-button - JOB Favourites > see 5.4 chapter
•-----------Pressing the push-button briefly: Loading Favourites
•-----------Press and hold the push-button (>2 s): Saving as a Favourite
•-----------Press and hold the push-button (>12 s): Deleting a Favourite
Machine display
Machine display showing all machine functions, menus and parameters with their val-
ues > see 4.3 chapter.
Click wheel
• ---------- Setting the welding power
• ---------- Navigate through menu and parameters
• ---------- Setting the parameter values depending on the preselection.
Push-button OL (top left)
Set welding procedure in the main menu
------- TIG-welding
------- MMA welding
-------- MMA Cel welding (characteristics for cellulose electrode)
Context-depending menu parameter setting
Back push-button
Go back one step in the menu navigation.

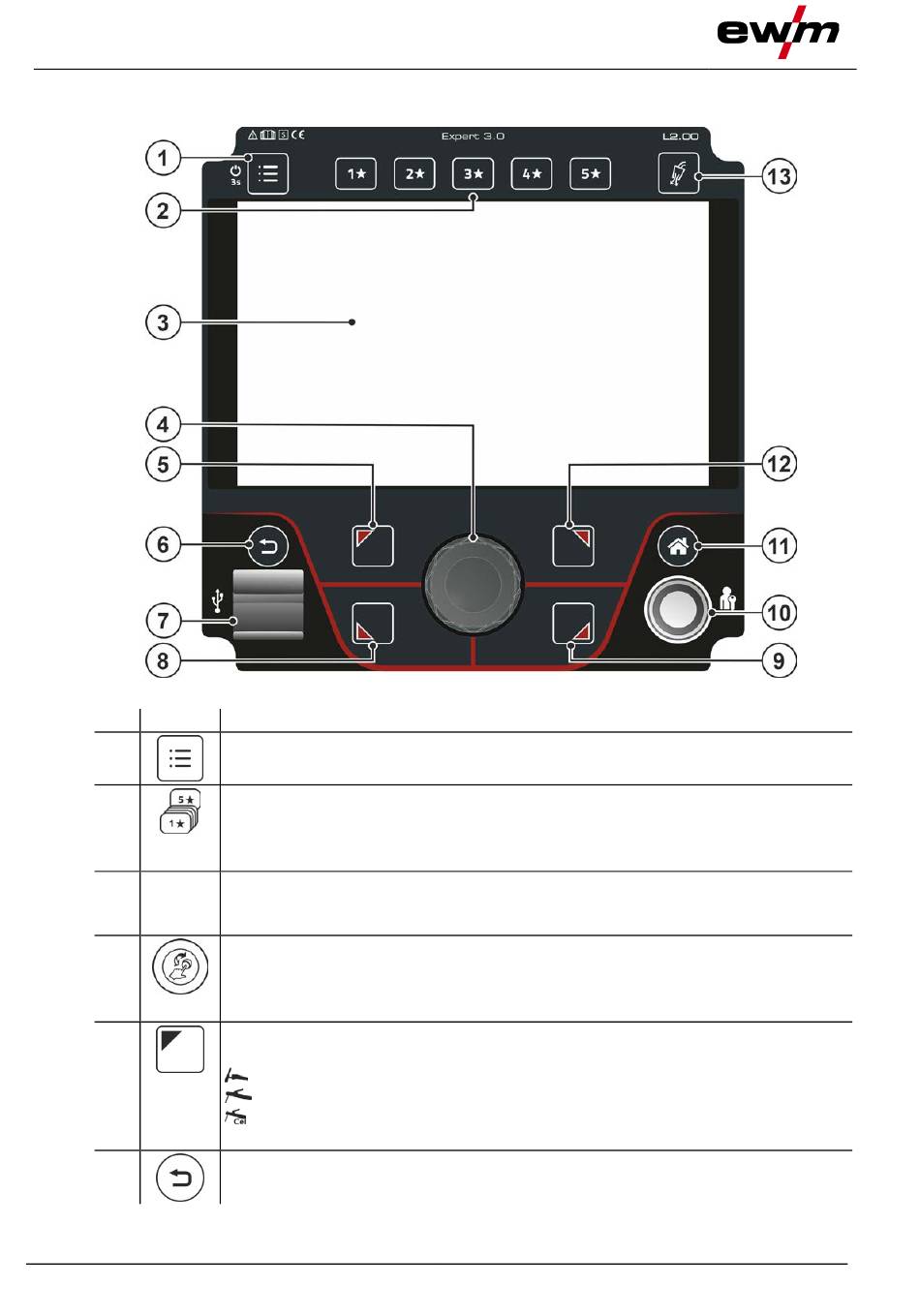

Figure 4-1
