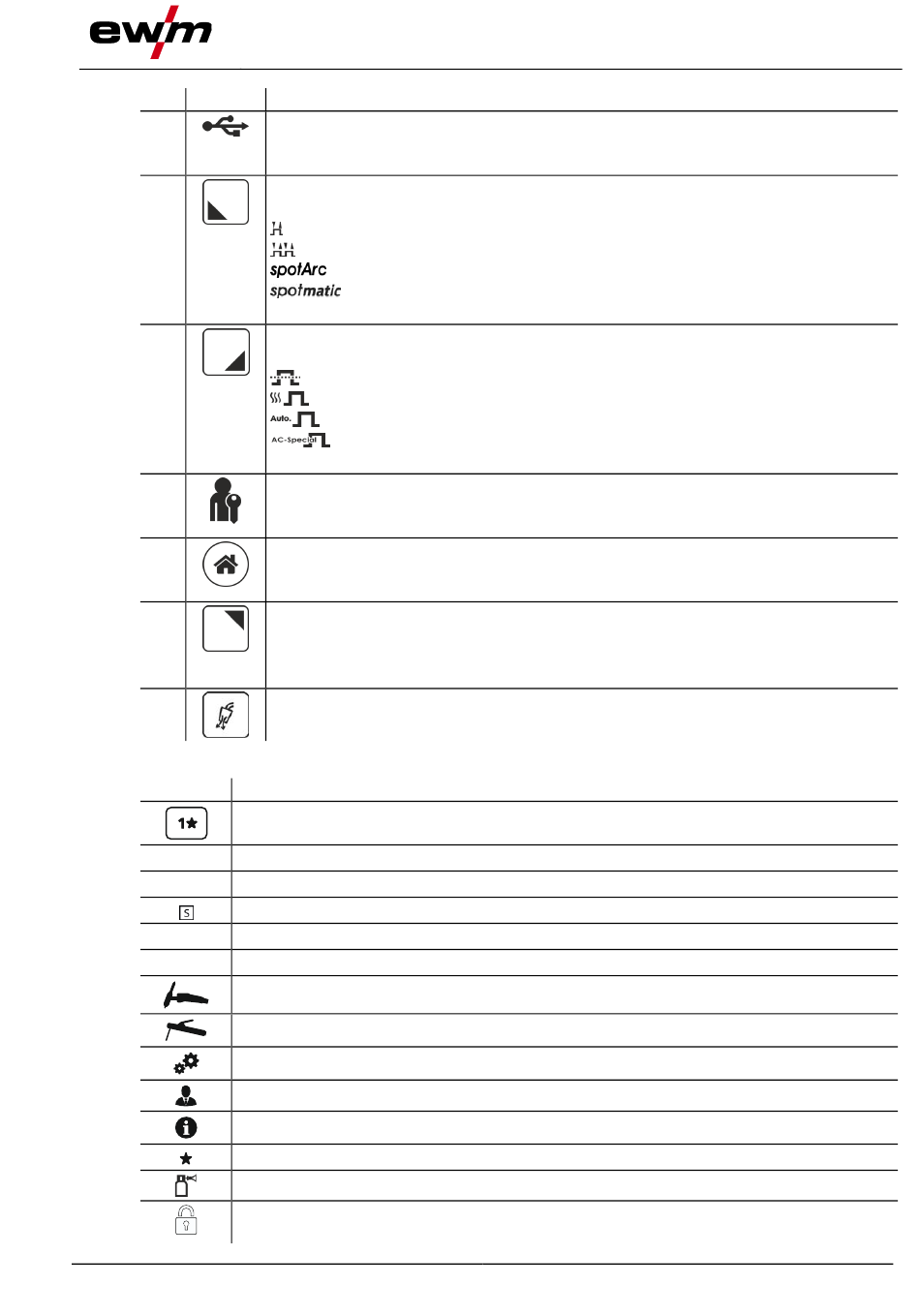

4.1

Screen icons

Symbol Description
Favourites (example Favourite 1)
JOB Welding task
VRD Voltage reduction device (optional)
Welding in environments with increased electrical hazards
activArc TIG activArc® welding
HF Arc striking (HF)
TIG
MMA
Advanced settings / setup
JOB manager
Information
Favourites
Shielding gas
Disabled; selected function is not available with the current access rights - check access
rights.
099-00L200-EW501
13.05.2022
Description 0
USB interface USB for offline data transfer
Connection capability for a USB flash drive - industrial USB flash drive recommended
(FAT32).
Push-button UL (bottom left)
Set operating mode in the main menu > see 5.1.7 chapter
---------- Non-latched
------- Latched
-- Spot welding procedure spotArc
Spot welding procedure spotmatic
Context-depending menu parameter setting
Push-button UR (bottom right)
Set pulsed welding procedure in the main menu > see 5.1.10 chapter
------- Average value pulses
----- Thermal pulsing
--- Automated pulsing
- AC special
Context-depending menu parameter setting
Interface - Xbutton
Welding release with user-defined rights to protect against unauthorised
use > see 5.7 chapter.
Home push-button
View changes between Home (main screen) > see 4.3.2 chapter and Quick Menü
(quick access parameters) > see 4.4 chapter
Push-button OR (top right)
Advanced settings
Selection and setting of advanced system and process parameters > see 4.5 chapter
Context-depending menu parameter setting
Push-button gas test / rinse hose package > see 5.1.1 chapter
