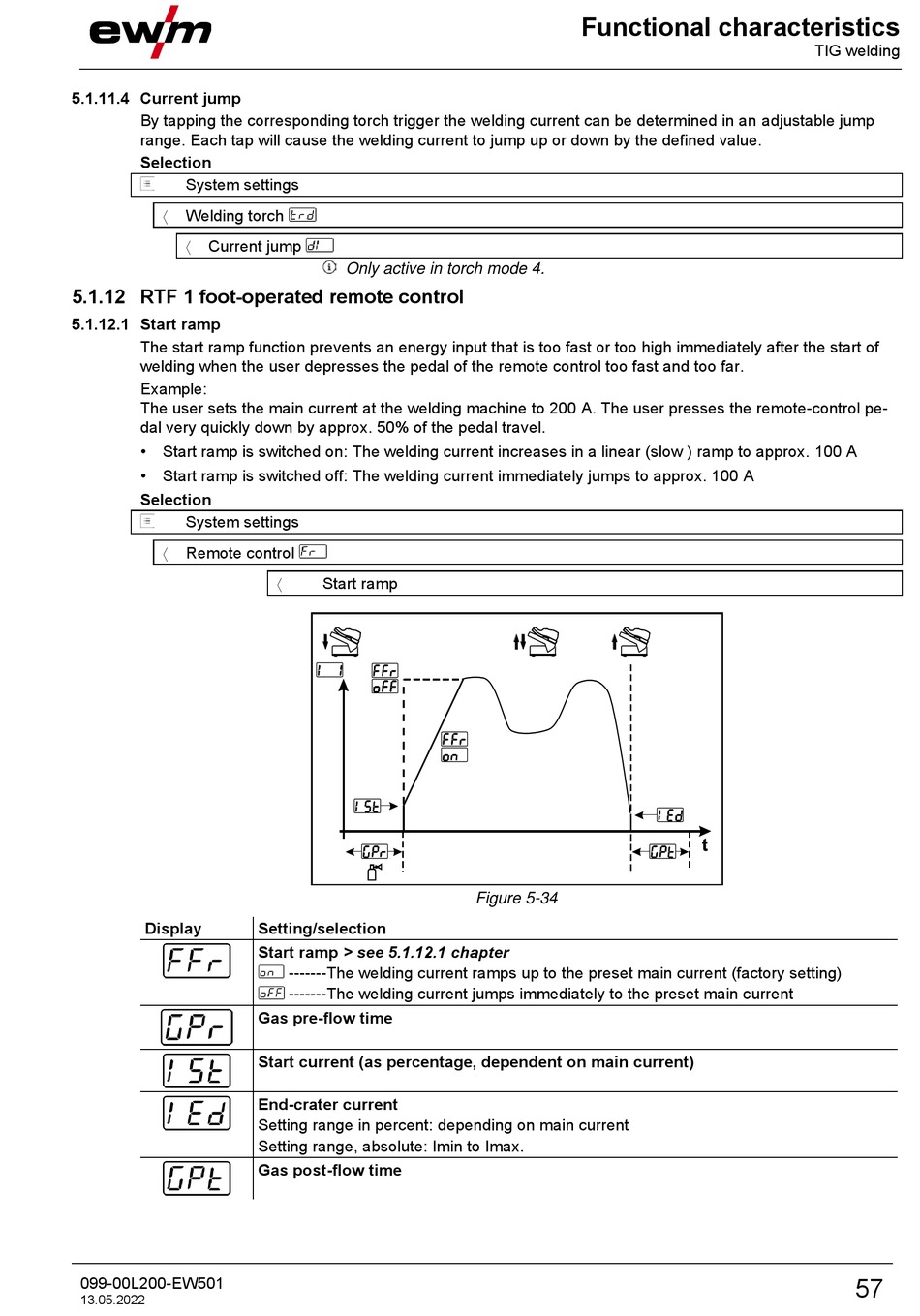

5.1.11.4 Current jump
By tapping the corresponding torch trigger the welding current can be determined in an adjustable jump
range. Each tap will cause the welding current to jump up or down by the defined value.
Selection
System settings
Welding torch
Current jump
5.1.12 RTF 1 foot-operated remote control
5.1.12.1 Start ramp
The start ramp function prevents an energy input that is too fast or too high immediately after the start of
welding when the user depresses the pedal of the remote control too fast and too far.
Example:
The user sets the main current at the welding machine to 200 A. The user presses the remote-control pe-
dal very quickly down by approx. 50% of the pedal travel.
•
Start ramp is switched on: The welding current increases in a linear (slow ) ramp to approx. 100 A
•
Start ramp is switched off: The welding current immediately jumps to approx. 100 A
Selection
System settings
Remote control
Display
099-00L200-EW501
13.05.2022
Only active in torch mode 4.
Start ramp
Setting/selection
Start ramp > see 5.1.12.1 chapter
-------The welding current ramps up to the preset main current (factory setting)
-------The welding current jumps immediately to the preset main current
Gas pre-flow time
Start current (as percentage, dependent on main current)
End-crater current
Setting range in percent: depending on main current
Setting range, absolute: Imin to Imax.
Gas post-flow time
Functional characteristics
Figure 5-34
TIG welding
57
