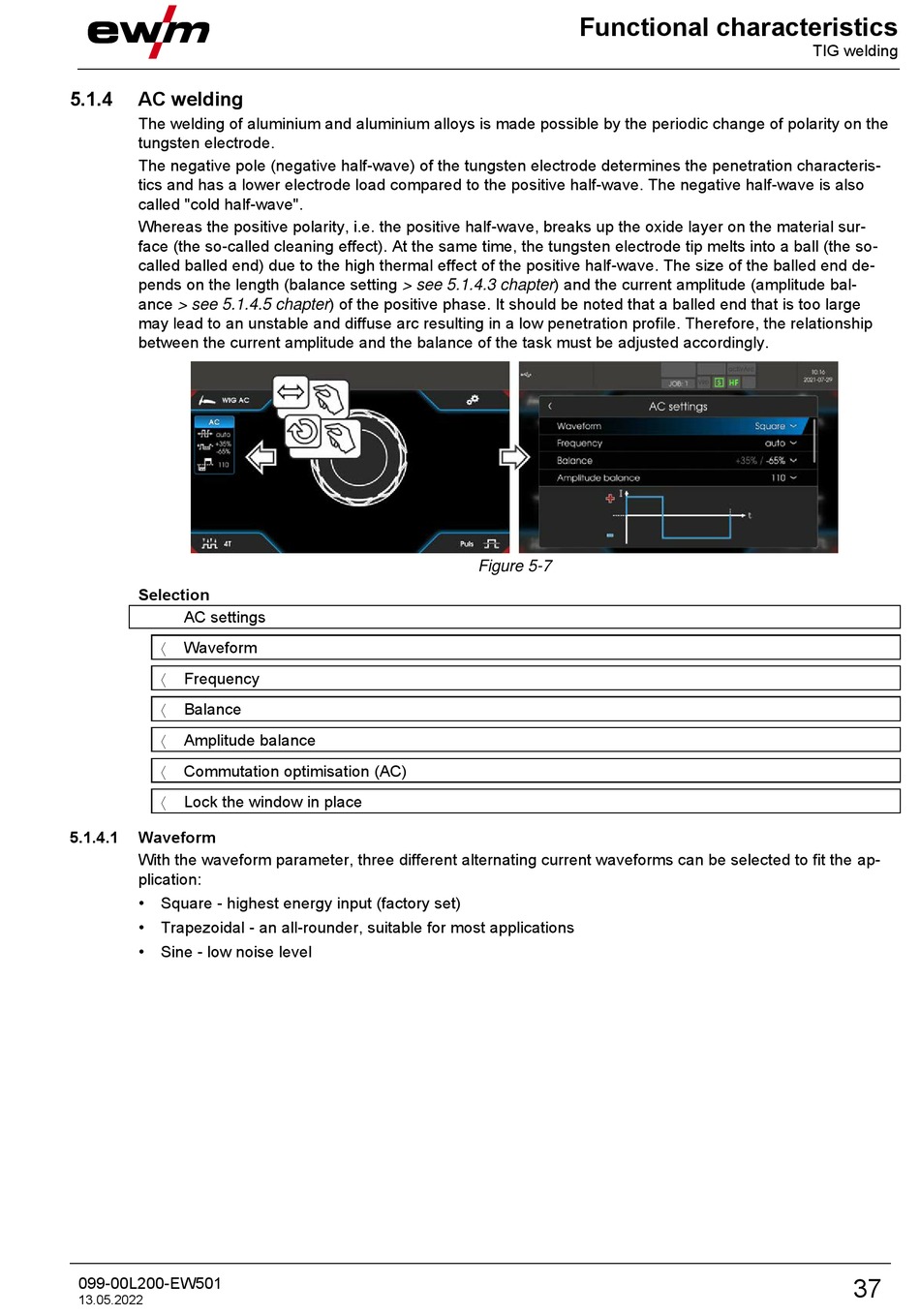

5.1.4

AC welding

The welding of aluminium and aluminium alloys is made possible by the periodic change of polarity on the
tungsten electrode.
The negative pole (negative half-wave) of the tungsten electrode determines the penetration characteris-
tics and has a lower electrode load compared to the positive half-wave. The negative half-wave is also
called "cold half-wave".
Whereas the positive polarity, i.e. the positive half-wave, breaks up the oxide layer on the material sur-
face (the so-called cleaning effect). At the same time, the tungsten electrode tip melts into a ball (the so-
called balled end) due to the high thermal effect of the positive half-wave. The size of the balled end de-
pends on the length (balance setting > see 5.1.4.3 chapter) and the current amplitude (amplitude bal-
ance > see 5.1.4.5 chapter) of the positive phase. It should be noted that a balled end that is too large
may lead to an unstable and diffuse arc resulting in a low penetration profile. Therefore, the relationship
between the current amplitude and the balance of the task must be adjusted accordingly.
Selection
AC settings

Waveform


Frequency

Balance

 Amplitude balance
 Commutation optimisation (AC)
Lock the window in place

5.1.4.1 Waveform
With the waveform parameter, three different alternating current waveforms can be selected to fit the ap-
plication:
• Square - highest energy input (factory set)
• Trapezoidal - an all-rounder, suitable for most applications
• Sine - low noise level
099-00L200-EW501
13.05.2022
Functional characteristics
Figure 5-7
TIG welding
37
