Quick overview

Operating the machine control

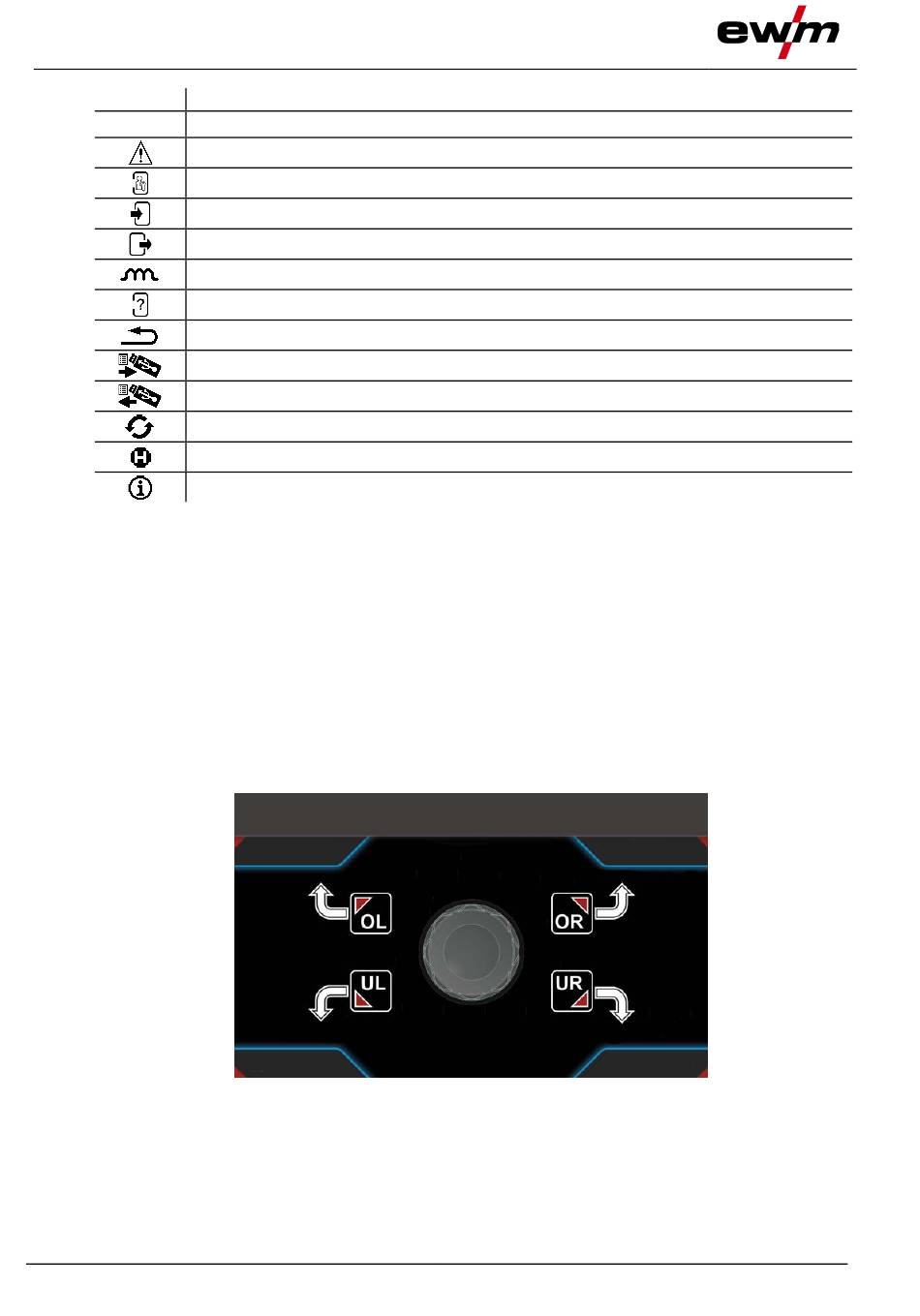

Symbol Description
Programs (P0 - P15) > see 5.1.3 chapter
P
Warning; could be an imminent malfunction
User logged in
Xbutton login
Xbutton logout
Arcforce (welding characteristics)
Xbutton version number not recognised
Menu navigation; one menu back
Save data to a USB medium
Load data from a USB medium
Update
After welding, the last weld values (hold values) from the main program are displayed
Information
4.2 Operating the machine control
After switching on the machine, the start process for the machine's controls will begin (switching on until
ready for welding) and the loading bar > see 4.3.1 chapter will appear on the machine display initial
screen.
After the start process, the machine display will split into the main screen > see 4.3.2 chapter and the sta-
tus bar > see 4.3.2.1 chapter.
On the main screen, either system menus and basic settings > see 4.7 chapter or process-dependent
processes and their parameters are displayed (Homescreen).
Users can jump back to the main screen from any menu item with the push-button Home. If the user is
already on the main screen, they can use this push-button to define the process parameters that should
be displayed in the functional sequence (quick menu > see 4.4 chapter).
The central control is operated with the rotating push-button (click wheel) and the context-dependent
push-buttons OL, OR, UL and UR.
18
Figure 4-2
