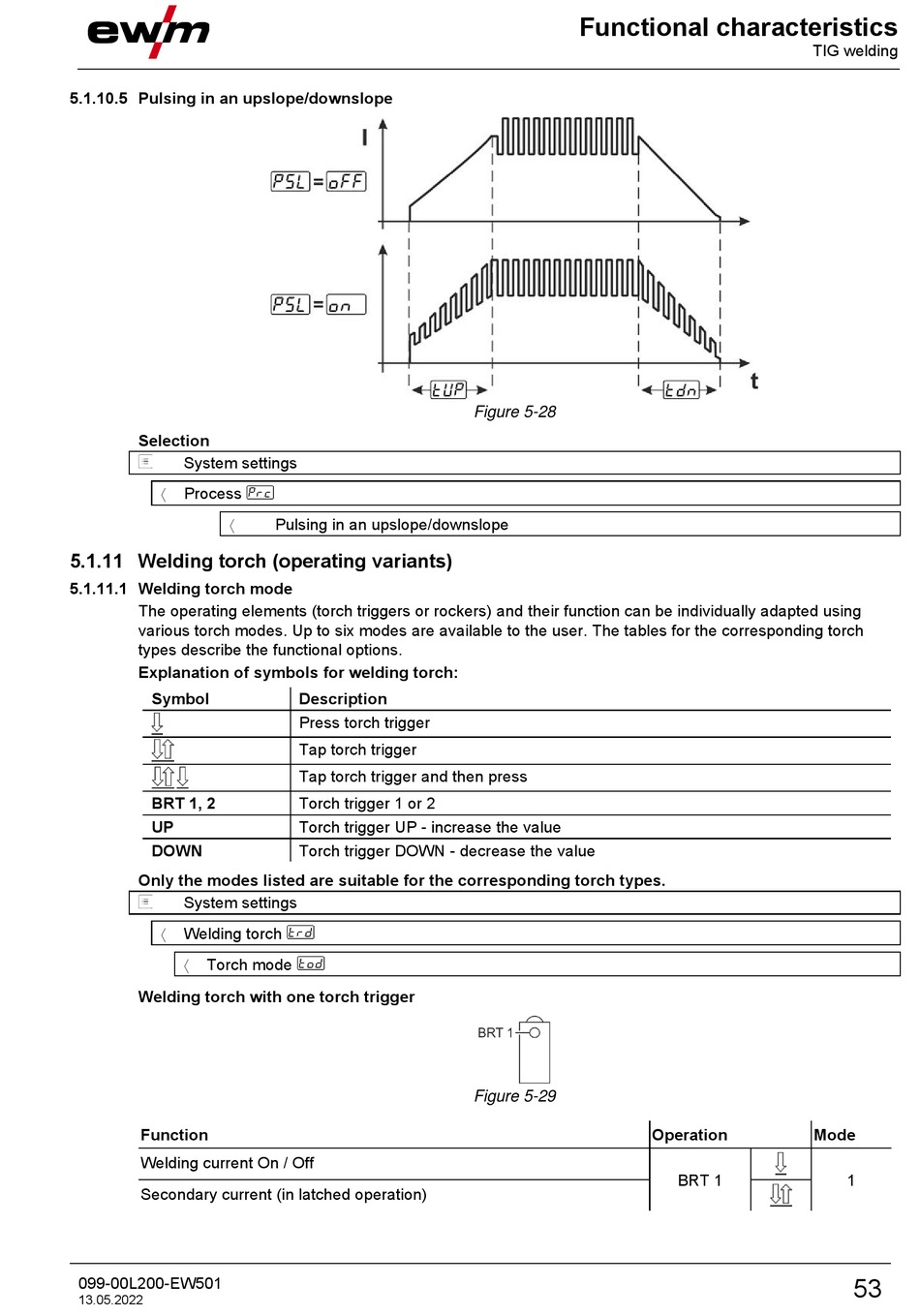

5.1.10.5 Pulsing in an upslope/downslope

Selection
System settings
Process



5.1.11 Welding torch (operating variants)

5.1.11.1 Welding torch mode

The operating elements (torch triggers or rockers) and their function can be individually adapted using
various torch modes. Up to six modes are available to the user. The tables for the corresponding torch
types describe the functional options.
Explanation of symbols for welding torch:
Symbol
BRT 1, 2
UP
DOWN
Only the modes listed are suitable for the corresponding torch types.
System settings
 Welding torch
Torch mode

Welding torch with one torch trigger
Function
Welding current On / Off
Secondary current (in latched operation)
