Quick overview

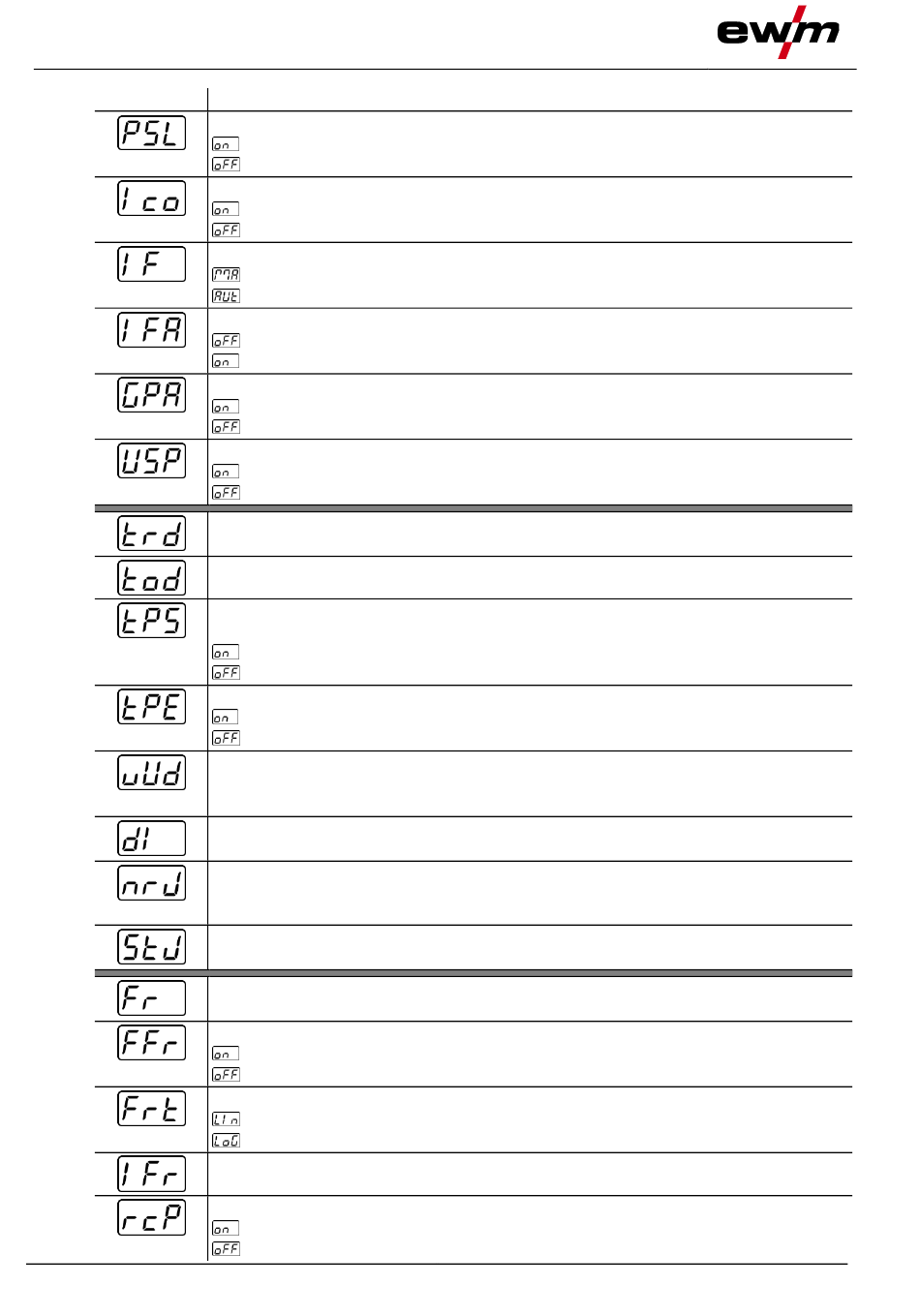

System (main menu)
Display
30
Setting/selection
Pulsing in an upslope/downslope > see 5.1.10.5 chapter
------- Function enabled (factory setting)
------- Function disabled
Commutation optimisation (AC) > see 5.1.4.6 chapter
------- Function enabled
------- Function disabled (factory setting)
Waveform automatic (AC)
------- Manual setting of the waveform (factory setting)
------- Synergetic to current (requirement: Xconnect)
Waveform (AC) - advanced
------- Function disabled
------- Function enabled (factory setting)
Automatic gas post-flow function > see 5.1.1.1 chapter
------- Function on
------- Function off (factory setting)
Arc length restriction > see 5.3 chapter
------- Function switched on
------- Function switched off
Torch configuration menu
Set welding torch functions
Torch mode (ex works 1) > see 5.1.11.1 chapter
Alternative welding start – tapping start
Available from torch mode 11 (welding stop by tapping remains active).
------- Function enabled (ex works)
------- Function disabled
Tap end > see 5.1.11.2 chapter
------- Function enabled
------- Function disabled (factory setting)
Up/down speed > see 5.1.11.3 chapter
Increase value > rapid current change
Decrease value > slow current change
Current jump > see 5.1.11.4 chapter
Current jump setting in ampere
Get JOB number
Set maximum selectable JOBs for function torch Retox XQ (setting: 1 to 100, factory set-
ting 10).
Start JOB
Set first retrievable JOB (setting: 1 to 100, factory setting 1).
Remote control menu
Start ramp > see 5.1.12.1 chapter
------- The welding current ramps up to the preset main current (factory setting)
------- The welding current jumps immediately to the preset main current
Responsiveness > see 5.1.12.2 chapter
------- Linear responsiveness
------- Logarithmic responsiveness (factory setting)
Minimum current limit (AC)
Welding current polarity switching
------- polarity switching at the RT PWS 1 19POL remote control (ex works)
------- polarity switching at the welding machine control
