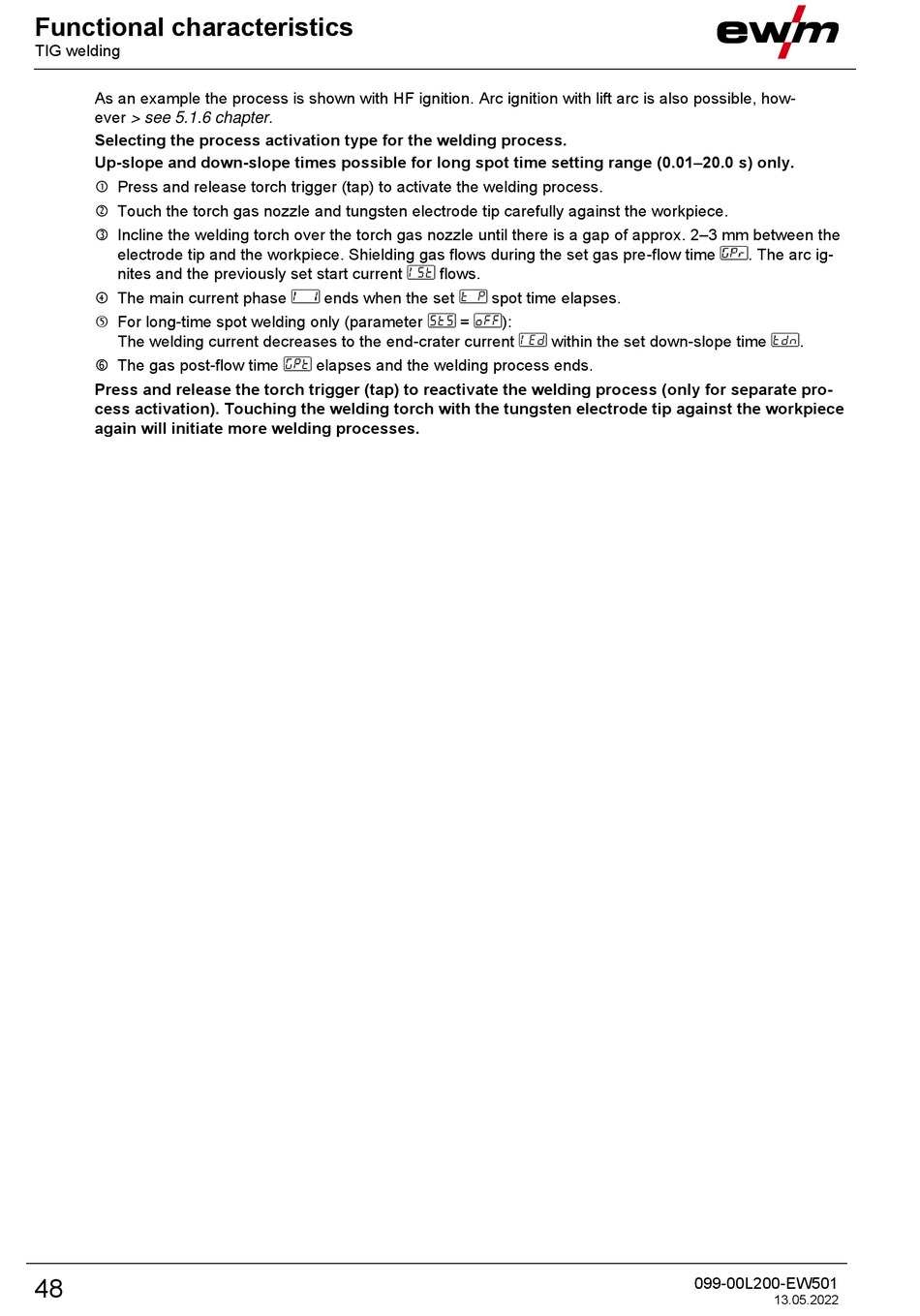

Functional characteristics
TIG welding
As an example the process is shown with HF ignition. Arc ignition with lift arc is also possible, how-
ever > see 5.1.6 chapter.
Selecting the process activation type for the welding process.
Up-slope and down-slope times possible for long spot time setting range (0.01–20.0 s) only.
 Press and release torch trigger (tap) to activate the welding process.
 Touch the torch gas nozzle and tungsten electrode tip carefully against the workpiece.
 Incline the welding torch over the torch gas nozzle until there is a gap of approx. 2–3 mm between the
electrode tip and the workpiece. Shielding gas flows during the set gas pre-flow time
nites and the previously set start current
 The main current phase
 For long-time spot welding only (parameter
The welding current decreases to the end-crater current
 The gas post-flow time
Press and release the torch trigger (tap) to reactivate the welding process (only for separate pro-
cess activation). Touching the welding torch with the tungsten electrode tip against the workpiece
again will initiate more welding processes.
48
flows.
ends when the set
=
elapses and the welding process ends.
spot time elapses.
):
within the set down-slope time
. The arc ig-
.
