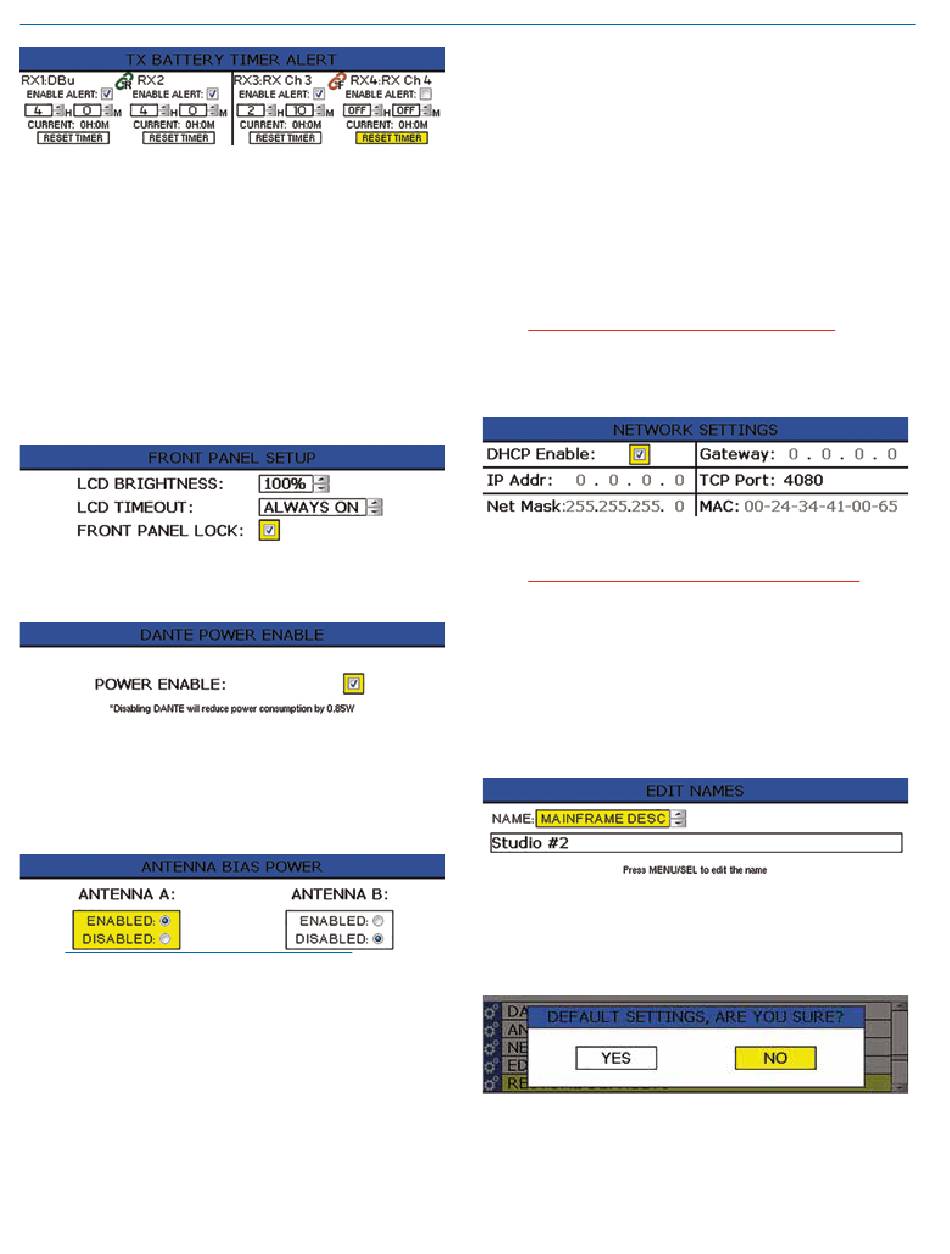

Front Panel Setup

Front panel settings may be customized as follows:
• LCD brightness: Use UP and DOWN arrows to
choose from 100%, 75%, 50% or 25%
• LCD Timeout: Use UP and DOWN arrows to
choose from Always On, 30 seconds, or 5 minutes
• Front Panel Lock: Use UP and DOWN arrows to
turn lock on/off. When locked, menus can still
be viewed, settings can not be changed. When
locked, if the UP and DOWN arrows are pressed to
change settings, a "FRONT PANEL LOCKED" mes-
sage will appear.
Dante Power Enable
Enable or disable Dante as needed.

Antenna Bias Power

DC bias voltage can be supplied on the antenna input
BNCs from an internal source to power remote RF ampli-
fiers.
NOTE: See Panels and Features for more
information on antennas/connectors.

Network Settings

Allows the user to set network settings when needed.
The following controls are available:
• DHCP Enable - this is checked if DHCP is used to
assign an IP address, Netmask and Default Gate-
way to the device. Uncheck this to use "static" IP
addressing.
• IP Address - This is in "dotted quad" format. If
DHCP is enabled, this is read only.
14
• Netmask - This is in "dotted quad" format. If
DHCP is enabled, this is read only.
• Default Gateway - This is in "dotted quad" format.
If DHCP is enabled, this is read only.
• TCP Port - This is the Primary TCP port number,
an integer in the range 0 - 65535. The Secondary
TCP port number is not set directly - it is always
the next number after the Primary TCP port num-
ber. The defaults are 4080 for the Primary port and
4081 for the Secondary port.
• MAC Address - this is the address of the device
ethernet port, assigned at the factory. It is read
only.
IMPORTANT: Always consult your network
administrator before attempting to connect
and configure a processor for a network
interface.
NOTE: New network settings require the unit
to reboot to take effect. Making a change and
pressing the BACK key will prompt the user to
Reboot Now, Save and Exit, or Discard and Exit.
IMPORTANT: The CAT 5 Ethernet Cable must
be installed prior to powering up the DSQD.

Edit Names

Edit channel names to easily identify talent or easily iden-
tify multiple DSQD receivers in a rack (1 name per frame).
Use UP and DOWN Arrows to select letters and bottom
buttons to set and move cursor. Press MENU/SEL when
finished to save.
Restore Defaults
Returns all settings to the factory defaults. If YES is cho-
sen, message will appear and DSQD will reboot.
